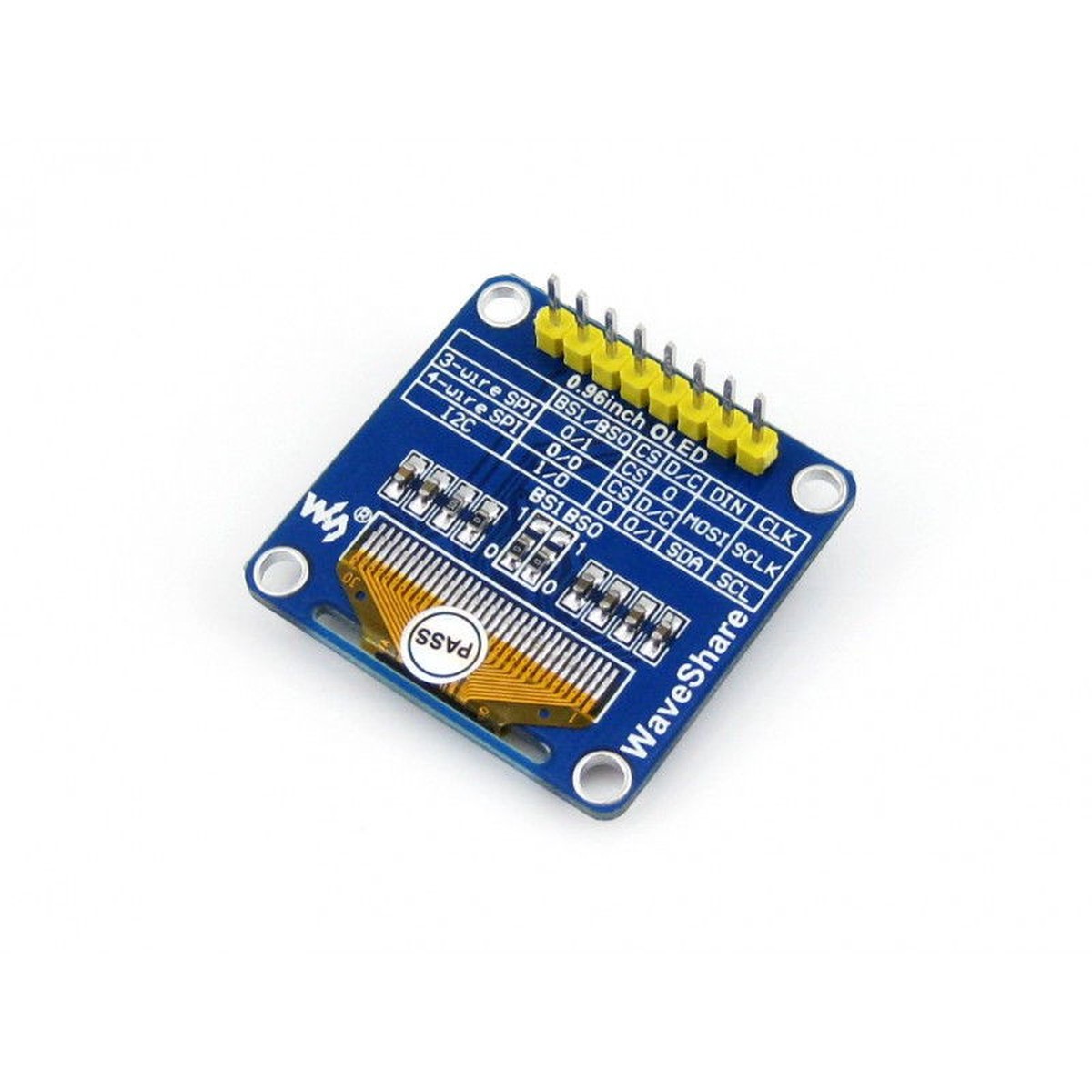

This 1306 Driver Chip OLED Display Module features a 0.96inch display size with a resolution of 128×64. It has 3-wire SPI, 4-wire SPI, and I2C interfaces, making it highly adaptable to different hardware platforms such as Raspberry Pi, Jetson Nano, Arduino, and STM32. The display consists of 1/4 yellow section and 3/4 blue section, and has a visible angle of more than 160deg. The module has an operating temperature range of -20C to +70C, and a storage temperature range of -30C to +80C. The operating voltage of the module is 3.3V / 5V.
Features:

Driver Chip: 1306
Interface: 3-wire SPI, 4-wire SPI, I2C
Resolution: 128×64
Display Size: 0.96inch
Colors: 1/4 Yellow Section, 3/4 Blue Section
Visible Angle: >160deg
Operating Temperature: -20C~+70C
Storage Temperature: -30~+80C
Operating Voltage: 3.3V / 5V
Applicability: Hardware platforms such as Raspberry Pi, Jetson Nano, Arduino, STM32.

Ordering Info
The 0.96inch OLED provides 2 options for the onboard pinheader:

0.96inch OLED (A): angled/horizontal pinheader

0.96inch OLED (B): straight/vertical pinheader

Package Content

0.96inch OLED (B) x 1

Development Resources
Wiki : www.waveshare.com/wiki/0.96inch_OLED_(B)

Dimension
