This 1.3 inch blue OLED display module features the SH1106 driver chip and has a resolution of 128×64. It has an interface of 3-wire SPI, 4-wire SPI, or I2C, making it easy to connect to a wide range of hardware platforms such as Raspberry Pi, Jetson Nano, Arduino, and STM32. The module has a visible angle of over 160 degrees, providing clear and crisp images from different viewing positions.
This OLED display module has an operating temperature range of -30C to 70C and a storage temperature range of -30C to 80C. It operates on a voltage of 3.3V or 5V, depending on the hardware platform being used. The display module has a size of 1.3 inches and a blue color. It is perfect for displaying text, images, and other graphical information.
Features:

Driver Chip: SH1106

Interface: 3-wire SPI, 4-wire SPI, I2C

Resolution: 128X64

Display Size: 1.3 inch

Colors: Blue

Visible Angle: >160deg

Operating Temperature Range: -30C to 70C

Storage Temperature Range: -30C to 80C

Operating Voltage: 3.3V / 5V

Applicability: Hardware platforms such as Raspberry Pi, Jetson Nano, Arduino, STM32

Ordering Info
The 1.3inch OLED provides 2 options for the onboard pinheader:

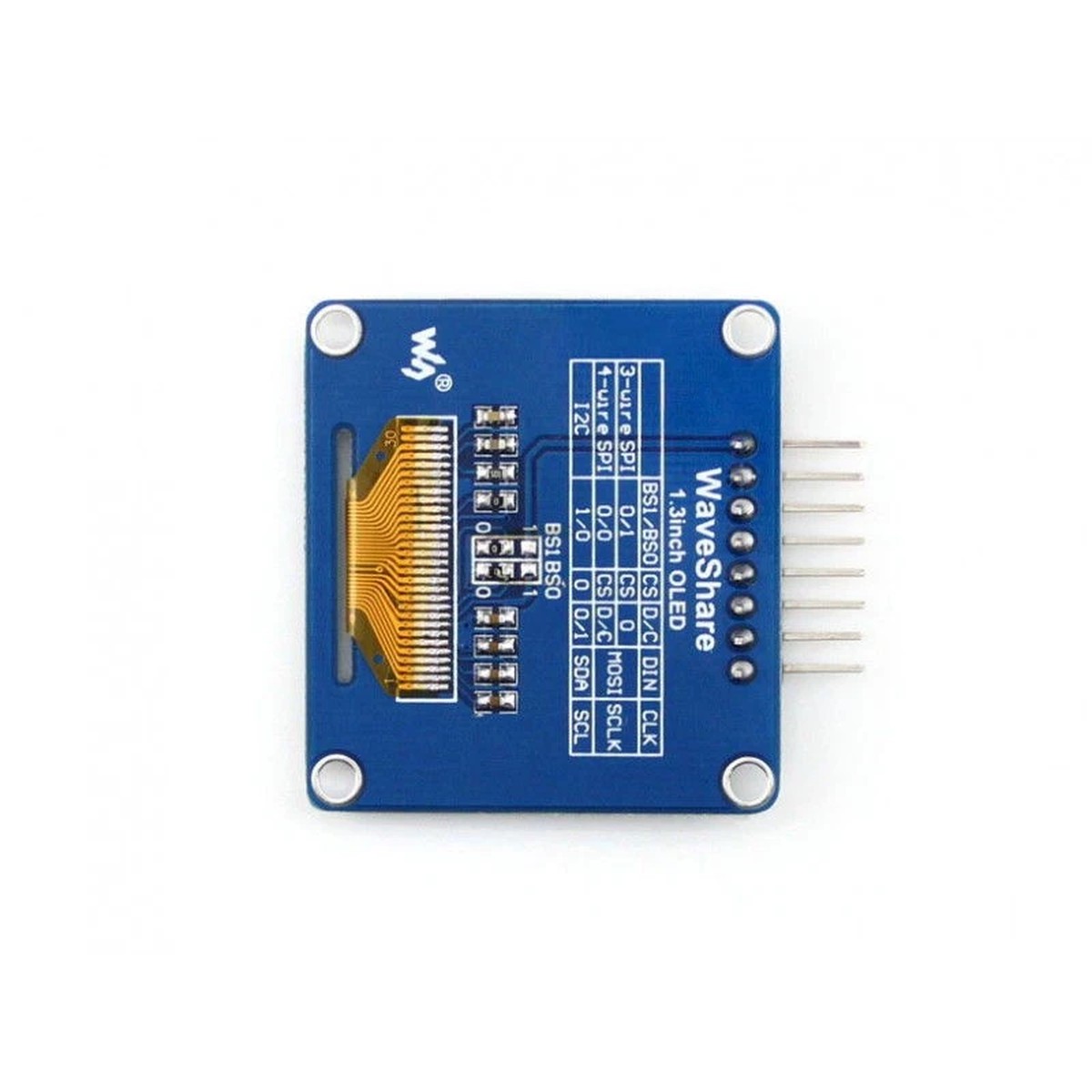

1.3inch OLED (A): curved/horizontal pinheader

1.3inch OLED (B): straight/vertical pinheader

Downloads
Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/1.3inch_OLED_(A)
Dimension

Package Content

1.3inch OLED (A) x 1
