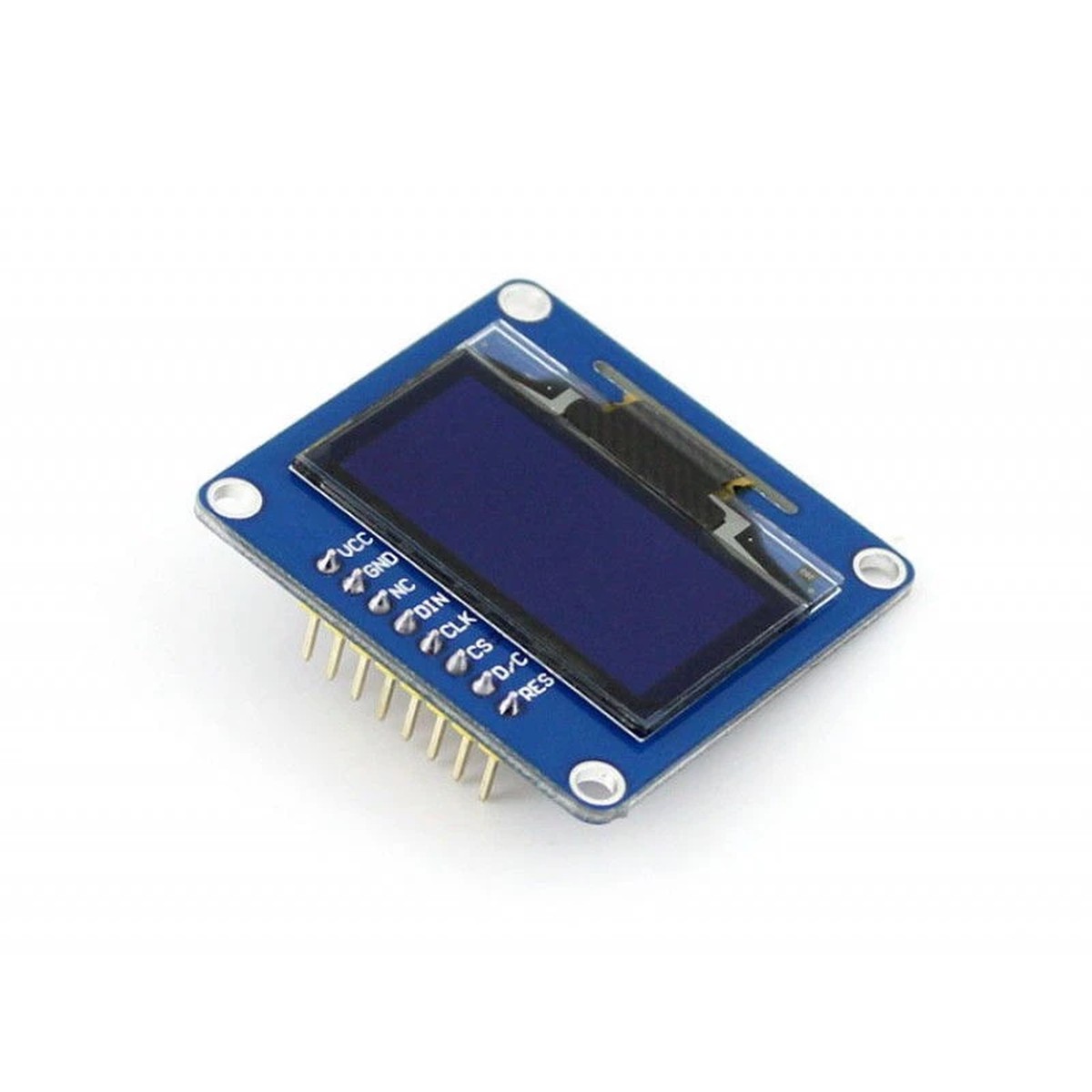

This 1.3inch Blue OLED Display Module features the SH1106 Driver Chip and is compatible with hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32. The display module has 3-wire SPI, 4-wire SPI, and I2C interfaces with a resolution of 128×64. The module has a visible angle of >160deg and a display size of 1.3inch. It has an operating temperature range of -30~70C and storage temperature -30~80C. The operating voltage of the module is 3.3V/5V, making it suitable for a variety of projects.
Features:

Driver Chip: SH1106
Interface: 3-wire SPI, 4-wire SPI, I2C
Resolution: 128×64
Display Size: 1.3inch
Color: Blue
Visible Angle: >160deg
Operating Temperature: -30~70C
Storage temperature: -30~80C
Operating Voltage: 3.3V / 5V
Applicability: Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

Ordering Info
The 1.3inch OLED provides 2 options for the onboard pinheader:

1.3inch OLED (A): curved/horizontal pinheader

1.3inch OLED (B): straight/vertical pinheader

Package Content

1.3inch OLED (B) x 1

Downloads
Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/1.3inch_OLED_(B)
Dimension
