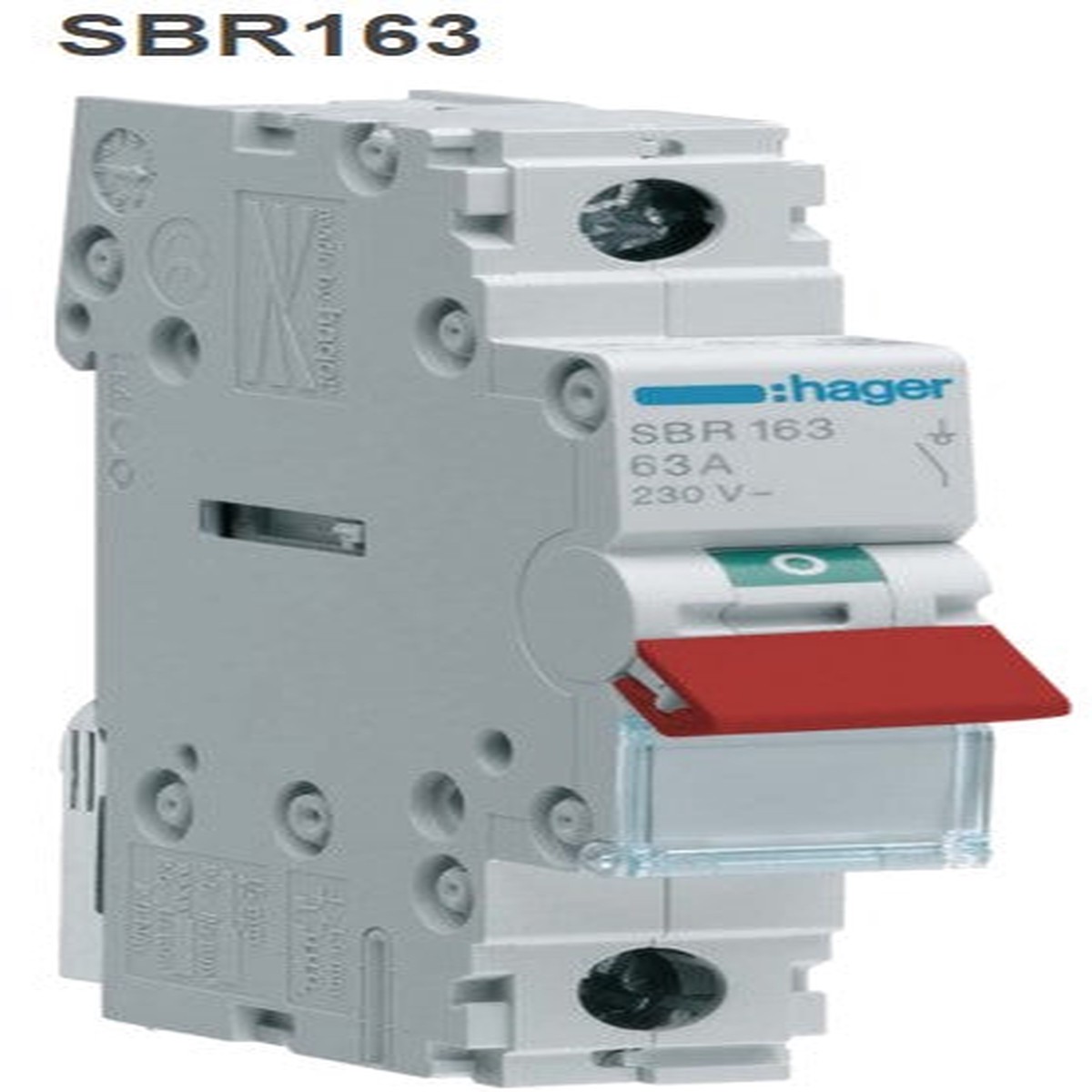

Hager 1 Pole 63A Modular Switch with Red Toggle | SBR163

The Hager SBR163 is a 1-pole 63A modular switch designed for safe and reliable isolation in residential, commercial, and industrial electrical installations. Featuring a red toggle with positive contact indication, it mounts easily onto a DIN rail and provides dependable switching performance.

Key Features

• 1 Pole (1P) Modular Switch
• 63A Current Rating
• Red toggle with positive contact indication
• DIN rail mounting
• Compact 1-module design
• Suitable for AC 50/60Hz supplies
• Screw terminal connections
• Ideal for distribution boards and isolation applications

Specifications

• Model: SBR163
• Number of Poles: 1
• Current Rating: 63A
• Rated Voltage: 230V AC
• Rated Insulation Voltage: 440V
• Frequency: 50/60Hz
• Protection Rating: IP20
• Module Width: 1 Module

Dimensions

• Height: 83mm
• Width: 17.5mm
• Depth: 68mm

Why You’ll Love It

The Hager SBR163 offers dependable isolation and switching in a compact modular format. Its robust construction, DIN rail compatibility, and easy-to-identify red toggle make it an excellent choice for professional electrical installations.
