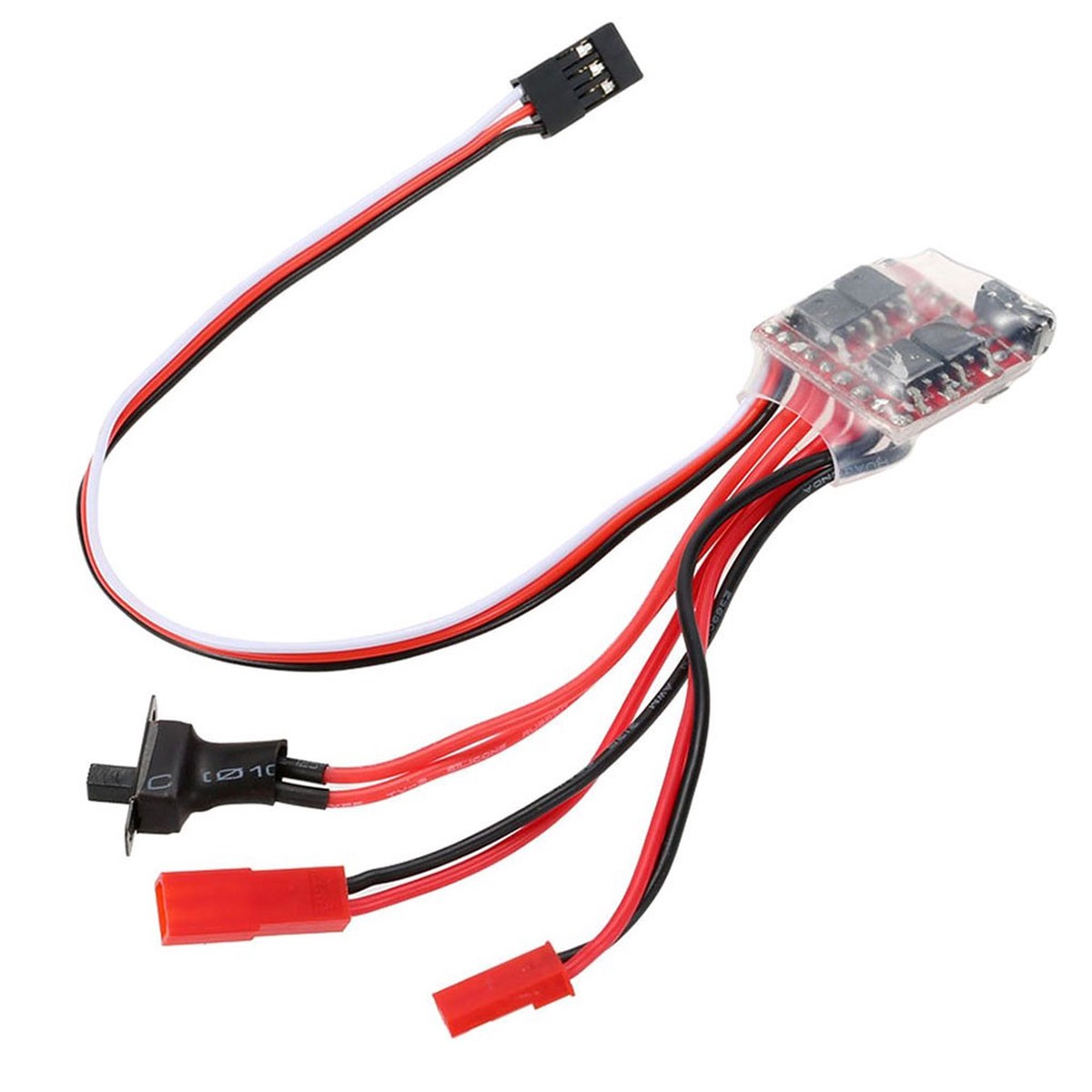

Compact 10A Brushed ESC With Brake Function For RC Drones And Mini RC Vehicles
The 10A Brushed ESC Electric Speed Controller is designed for reliable motor-speed control in RC drones, mini RC vehicles, and DIY electronics projects. Supporting brushed DC motors, the ESC provides smooth throttle response and integrated brake-function control for improved handling and motor management. Its compact and lightweight design makes it suitable for space-constrained RC builds where efficient power management and stable motor control are essential.
Compatible with 2S LiPo batteries and 4-7 cell Ni-MH or Ni-Cd battery packs, the ESC supports a continuous current output of 10A with a maximum current capacity of 15A for short-duration loads. The integrated 5V 1A BEC output helps power compatible receivers and control electronics directly from the ESC. With 8K PWM control and 2KHz driver frequency, the speed controller delivers responsive motor performance for RC drone and robotic applications.
Key Features

10A Continuous Current Output: Suitable for brushed motor control in RC drones and compact RC vehicles.
Integrated Brake Function: Helps improve control and stopping performance during operation.
Supports 2S LiPo Batteries: Compatible with 4.8V to 8.4V input voltage range.
Built-In 5V 1A BEC Output: Powers compatible receivers and onboard control electronics.
Compact Lightweight Design: Suitable for mini RC drones and space-limited applications.
PPM Signal Compatibility: Supports standard RC control signal input.
Stable PWM Performance: 8K PWM and 2KHz driver frequency improve motor response and efficiency.

Applications

RC drone motor control
Mini RC vehicle projects
DIY robotics applications
Brushed motor speed regulation
Educational electronics projects
Compact RC system integration

Package List:

1x10A Brushed ESC Speed Controller with Brake
