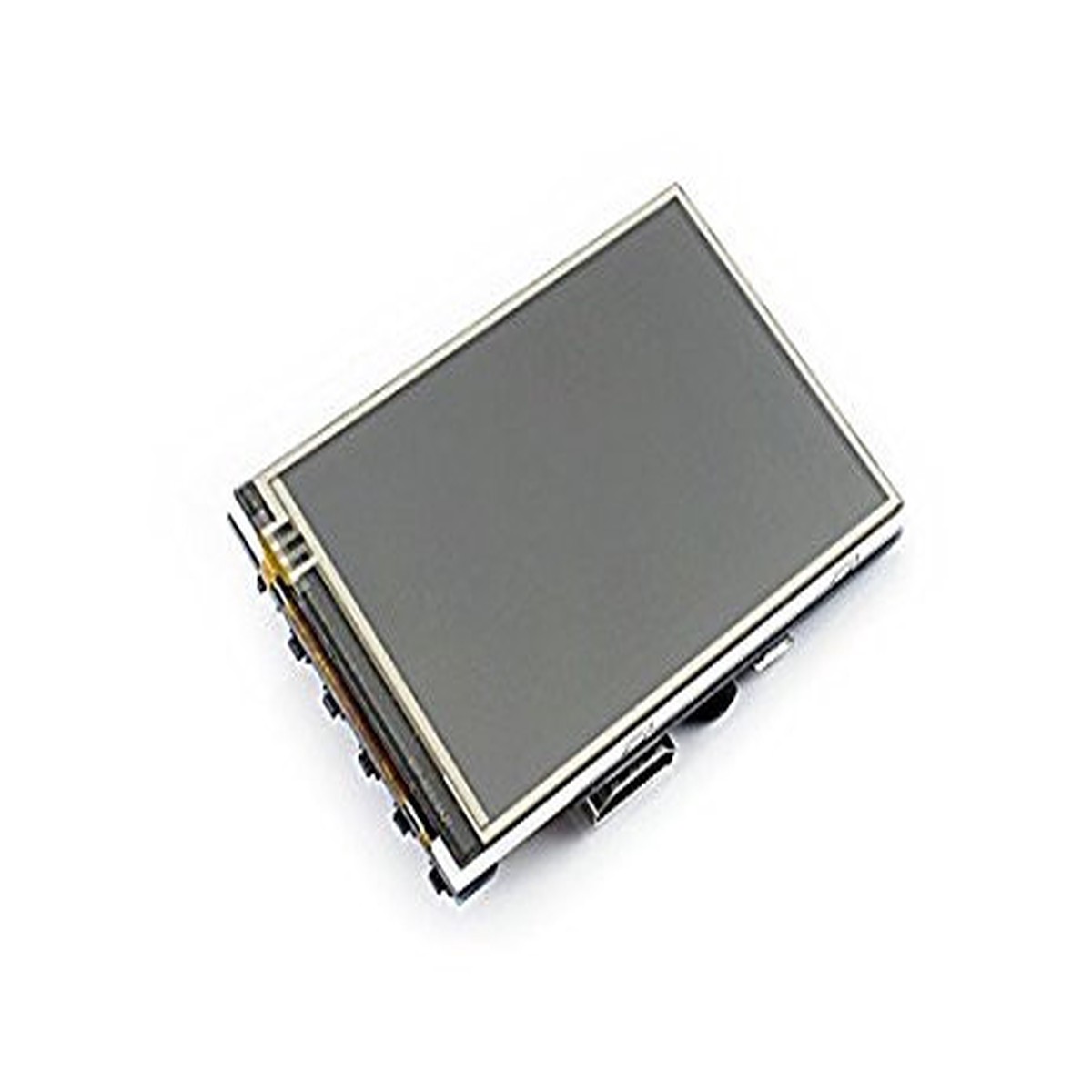

This 3.5-inch IPS touchscreen display for Raspberry Pi is a high-quality display solution for Raspberry Pi enthusiasts. It features a resistive touch control and a hardware resolution of 480×320, which can be set by the software up to 1920×1080. The display is compatible and direct-connect with any revision of Raspberry Pi, including Raspberry Pi Zero/Zero 2 W (an additional HDMI cable is required for these models). The display also supports Raspberry Pi OS/Ubuntu/Kali and Retropie systems, making it a versatile option for various Raspberry Pi projects. This 3.5-inch IPS touchscreen display can also be used as a computer monitor.
In this case, the touch panel is unavailable, and an HDMI cable is required. The display supports HDMI audio output and features a multi-languages OSD menu for power management, brightness/contrast adjustment, and more. When used only for display, the touchscreen function will not occupy any I/O resources. However, when the touch function is used, it will occupy I/O resources.
Features

480×320 hardware resolution, software configurable up to 1920×1080

Resistive touch control

IPS technology, high quality and perfect displaying from very wide viewing angle

Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)

Drivers provided (works with your own Raspbian/Ubuntu directly)

Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required

HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)

Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.

Supports 100-level backlight adjustment

Supports HDMI audio output

Package Content

3.5inch HDMI LCD x1
HDMI connector x1
Touch pen x1
Aluminium heat sink x1
DVD x1

Development Resources
Wiki : www.waveshare.com/wiki/3.5inch_HDMI_LCD
External Dimension

Device & System Support

Connection Examples
Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With Mini PC

Display
IPS Panel

Touch Control
Comes With Touch Pen

FAQs:
Q: What Raspberry Pi models is this display compatible with?
A: This display is compatible with all Raspberry Pi models, including older versions and the latest Raspberry Pi 4.
Q: What operating systems does this display support?
A: The display supports various operating systems, including Raspbian, Ubuntu, Kali Linux, and Retropie.
Q: Does this display require any additional power supply?
A: No, the display is powered directly from the Raspberry Pi board via the HDMI interface, eliminating the need for external power.
Q: What is the viewing angle of the display?
A: Thanks to its IPS (In-Plane Switching) technology, the display boasts a wide viewing angle of 160, ensuring clear visuals from various positions.
Q: Can I use this display with other devices besides Raspberry Pi?
A: While designed primarily for Raspberry Pi, the display can also be used with other devices that have an HDMI output, such as mini PCs, laptops, or single-board computers. However, touch functionality may not be supported on all devices.
