Resources: Wiki:www.waveshare.com/wiki/3.5inch_Capacitive_Touch_LCD

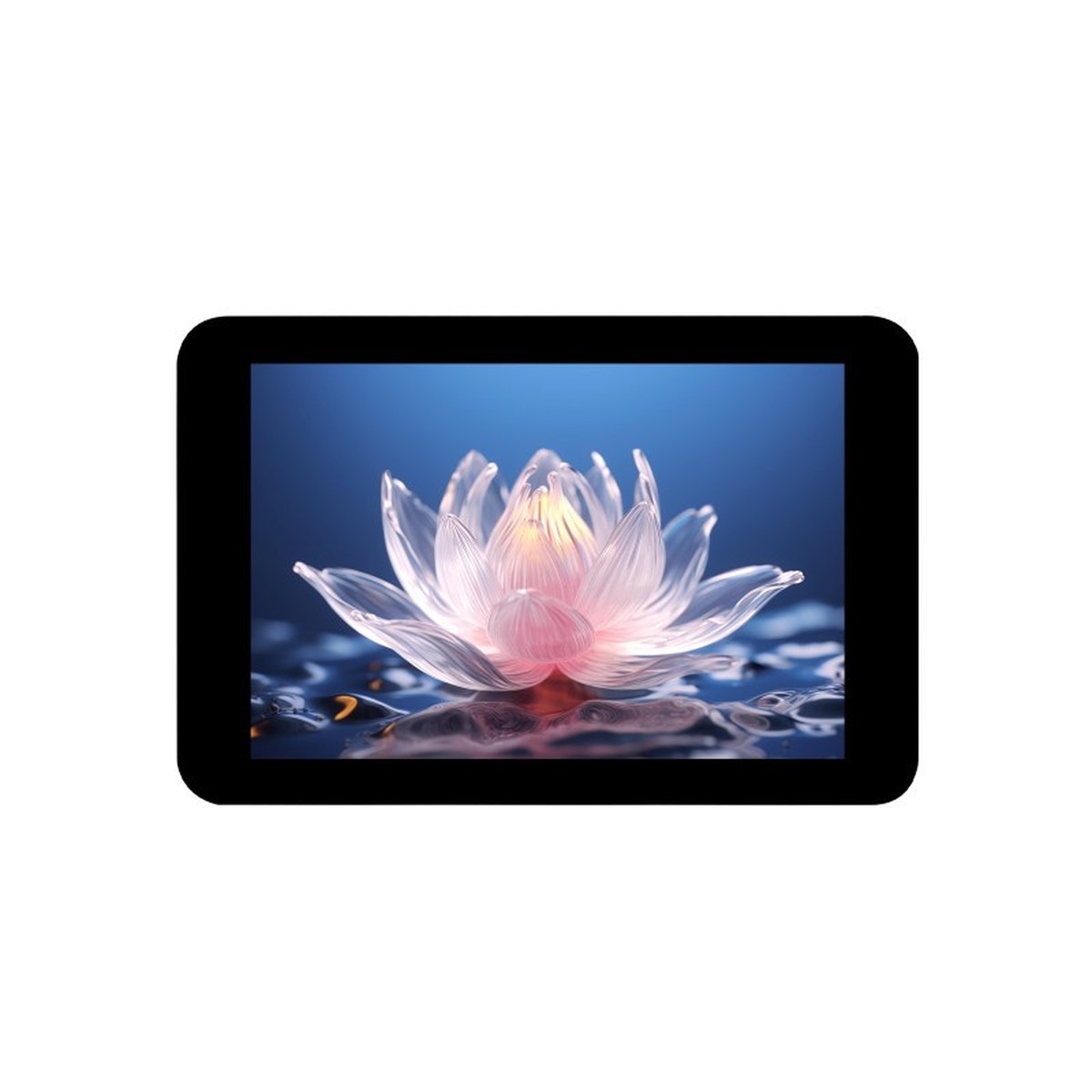

3.5inch Capacitive Touch Display Module, 320480 Resolution, Embedded with ST7796S Display Driver and FT6336U Capacitive Touch Controller, IPS Display
The 3.5 inch Capacitive Touch Display Module is designed for embedded systems and DIY electronics projects requiring a compact, high-quality visual interface. With a 320480 resolution and support for 262K colours, it delivers a sharp and vibrant display output. Featuring a high-transmittance capacitive touchscreen with fast response and long service life, this module ensures an intuitive user experience. It integrates the ST7796S driver chip for display control and the FT6336U capacitive touch control chip, utilising SPI and I2C communication protocols to reduce the required IO pins for smoother integration. The onboard TF card slot expands storage capability, allowing you to store images, music, or video files. Designed for versatility, the module includes both a 15PIN connector and an 18PIN FPC slot for flexible host board connections. Additionally, with its built-in voltage translator, the display supports both 3.3V and 5V systems. This module comes with online development resources and sample codes for Raspberry Pi, ESP32, Raspberry Pi Pico, and Arduino platforms, making it an excellent choice for hobbyists, students, and engineers.
Key Features:

High-Resolution Display: 320480 resolution with 262K colours for clear and vibrant visuals.
Responsive Touchscreen: High transmittance capacitive touch with fast response and long lifetime.
Integrated Driver & Control Chips: ST7796S display driver and FT6336U touch controller for efficient performance.
Efficient Communication: SPI for display and I2C for touch control, minimising IO pin usage.
Onboard TF Card Slot: Supports additional storage for pictures, videos, and music.
Flexible Connectivity: Equipped with a 15PIN connector and 18PIN FPC slot for host board connections.
Wide Voltage Compatibility: Onboard voltage translator ensures 3.3V / 5V operating support.
Comprehensive Resources: Includes online development resources and manuals with examples for Raspberry Pi, ESP32, Raspberry Pi Pico, and Arduino.

Onboard Voltage Translator
Compatible With 3.3V / 5V Operating voltage

Onboard TF Card Slot
For storing More Pictures Or Files

SPI And I2C Control Interfaces
Options For 15PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board

Hardware Connection
Connecting With Raspberry Pi 5

Connecting With ESP32-S3

For Reference Only, The Raspberry Pi 5 and ESP32-S3 driver board are NOT included, please check the Package Content for the detailed part list.
Dimensions

Package Content:

3.5inch Capacitive Touch LCD x1
GH1.25 15Pin cable x1
FPC cable x1
