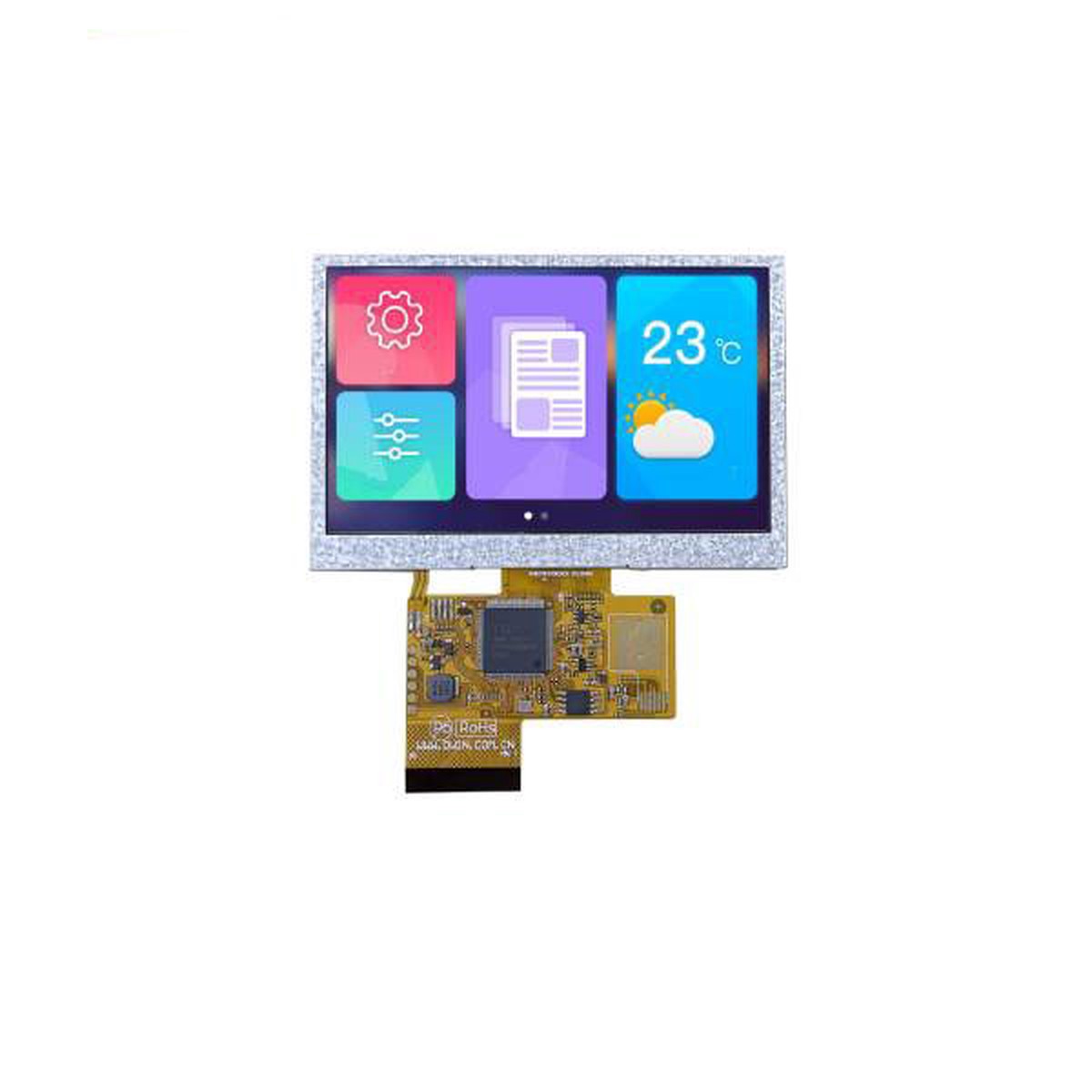

This 4.3-inch COF Structure Touch Screen Model, DMG48270F043_02W (COF Series), features a resolution of 480×272 pixels with 262K colors and IPS-TFT-LCD technology, providing a wide viewing angle. The LCD and TP frame lamination process ensures high structural reliability. The optional TP appearance comes in black, white, or integrated black. With its COF structure, the entire core circuit of the smart screen is fixed on the FPC of LCM, offering a light and thin structure, low cost, and easy production. The touch screen comes with 50 pins, including IO, UART, CAN, AD, and PWM from the user CPU core, facilitating easy secondary development. This touch screen is suitable for consumer applications with simple functions, mild working environments, and significant power consumption.
Features:

4.3-inch COF Structure Touch Screen
480×272 pixels resolution, 262K colors, IPS-TFT-LCD
Wide viewing angle
High structural reliability with LCD and TP frame lamination process
Optional TP appearance in black, white, or integrated black
Light and thin structure with low production cost
50 pins for easy secondary development
Suitable for consumer applications with simple functions and mild working environments
Ideal for projects with significant power consumption requirements.

Resource
Datasheet
