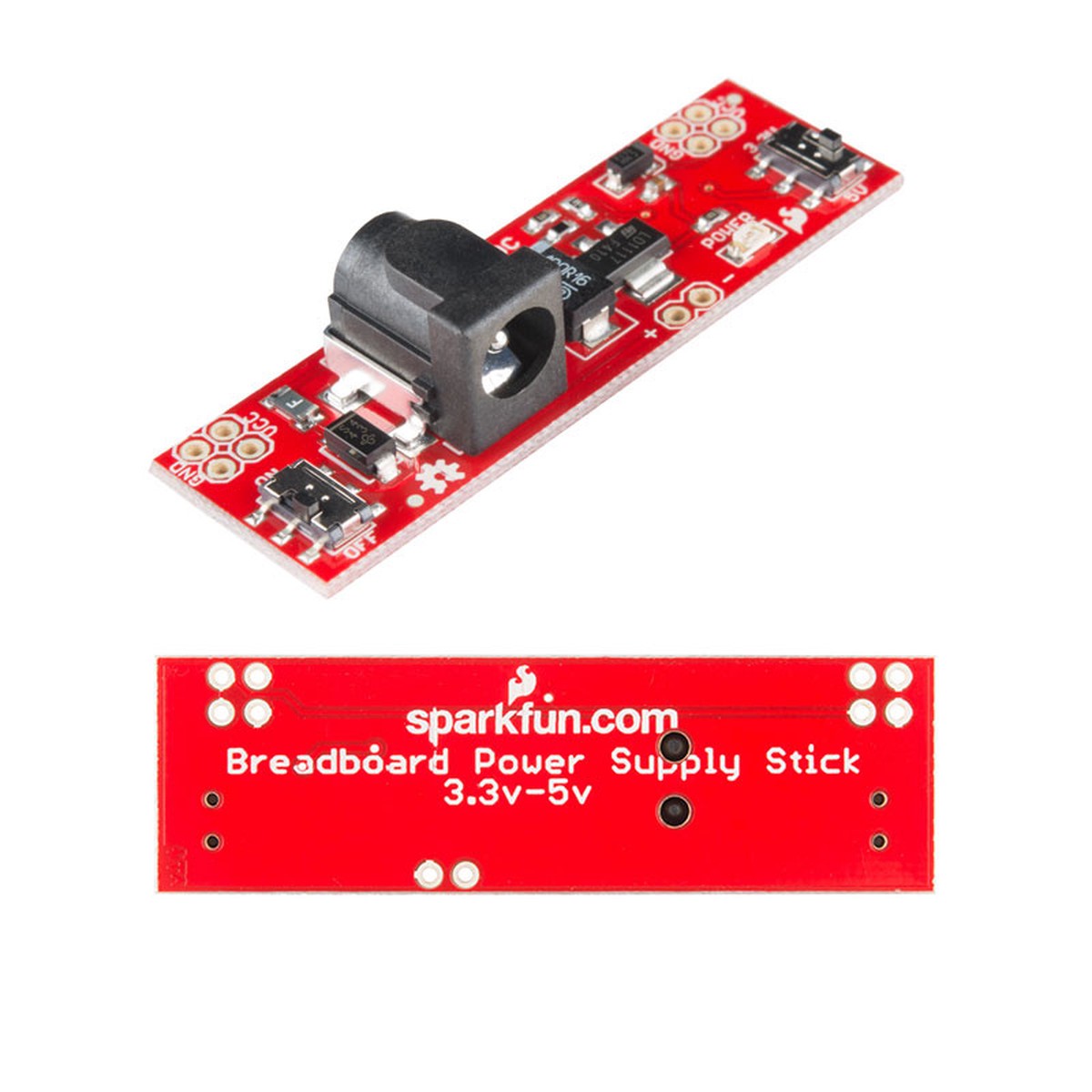

This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1″ pitch for simple insertion into a breadboard.
Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -. Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V). The two sets of four GND and VCC holes are spaced such that when connected to our Basic Breadboard both power busses will be powered.
Note: Headers are not supplied. You will need to supply your own headers to connect this board to a breadboard.
Key Features

6-12V input voltage via barrel jack or 2-pin header

3.3V or 5V regulated output voltage

800mA Operating Current

ON/OFF switch

Output voltage select switch

Power status LED

PTC fuse protected power

5.5×2.1mm center positive barrel jack

2.15×0.65″

Resources

Schematic

Eagle Files

Unregulated Power Supply Tutorial

GitHub(Design Files)

How to Use a Breadboard
