14481072 High Definition, 6inch E-Ink Display HAT For Raspberry Pi, Black/White, 16 Gray Scale
Overview

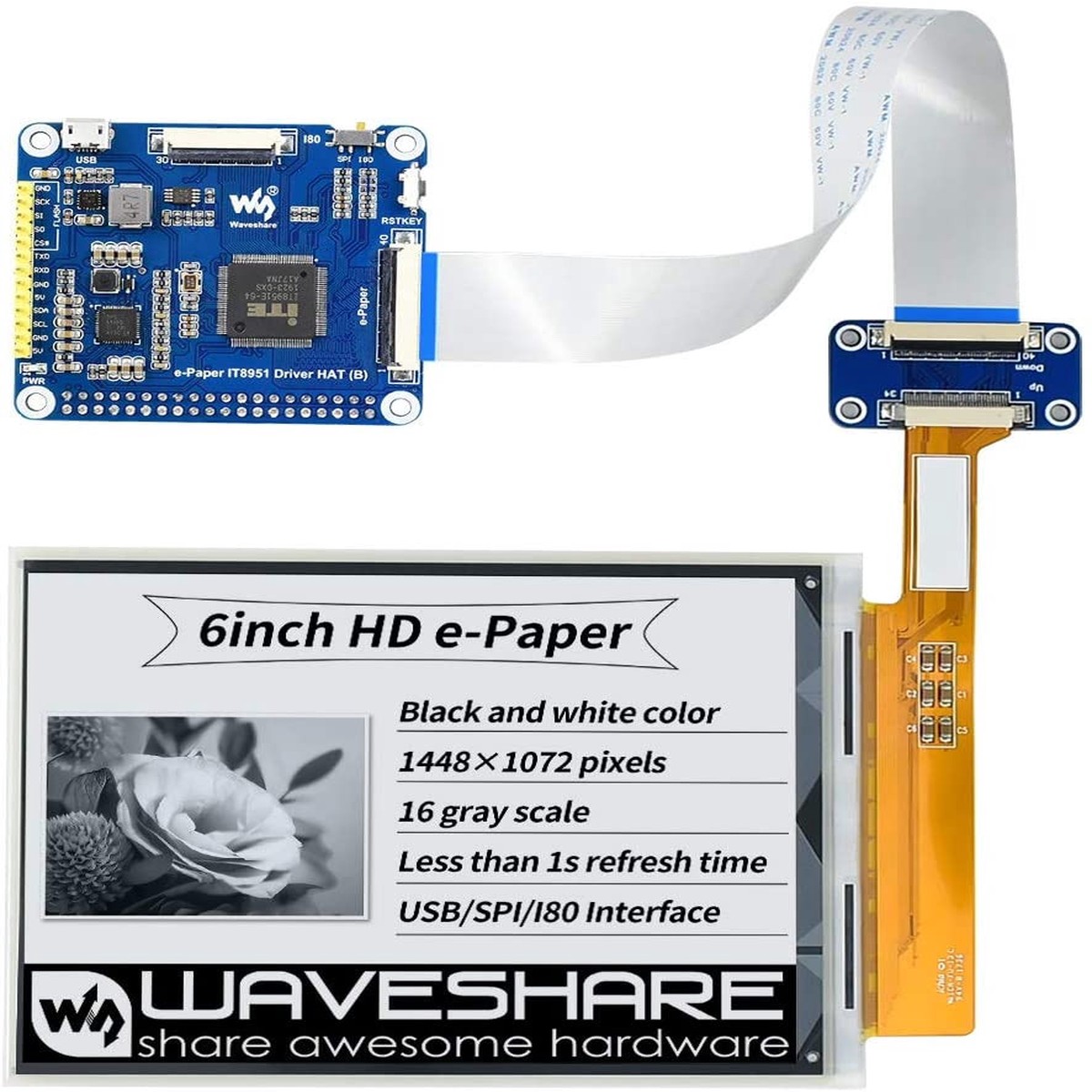

This is an E-Ink display HAT for Raspberry Pi, 6inch, 14481072 high definition, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features

No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
USB/SPI/I80 interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/STM32)

Example

e-Paper IT8951 Driver Hat (B) Dimensions

Resources
Wiki
Package Content

6inch HD e-Paper x1
e-Paper IT8951 Driver HAT (B) x1
6inch e-Paper Adapter (B) x1
40PIN FFC (same side contact) x1
USB type A plug to micro B plug cable x1
PH2.0 20cm 8Pin x1
RPi screws pack (2pcs) x1

FAQs:
Q:What are the dimensions of the 6-inch E-Ink display HAT?
A: The dimensions are not explicitly stated on the product page, but it is designed to fit on top of a Raspberry Pi board.
Q: What Raspberry Pi models are compatible with this E-Ink display HAT?
A: The product page does not specify which Raspberry Pi models are compatible. However, since it is a HAT (Hardware Attached on Top), it is likely compatible with models that have a 40-pin GPIO header, such as Raspberry Pi 3 and 4.
Q: What is the refresh rate of the display?
A: The refresh rate is not specified, but E-Ink displays are known for their slower refresh rates compared to traditional LCDs. This is due to the nature of the technology, which prioritizes low power consumption and a paper-like reading experience.
Q: Does the display come with a case or enclosure?
A: The product page does not indicate whether a case or enclosure is included with the display.
Q: What software is required to use this E-Ink display HAT?
A: The display likely requires specific drivers and software libraries to function properly with the Raspberry Pi. The manufacturer’s website or documentation should provide information on the necessary software and installation instructions.
