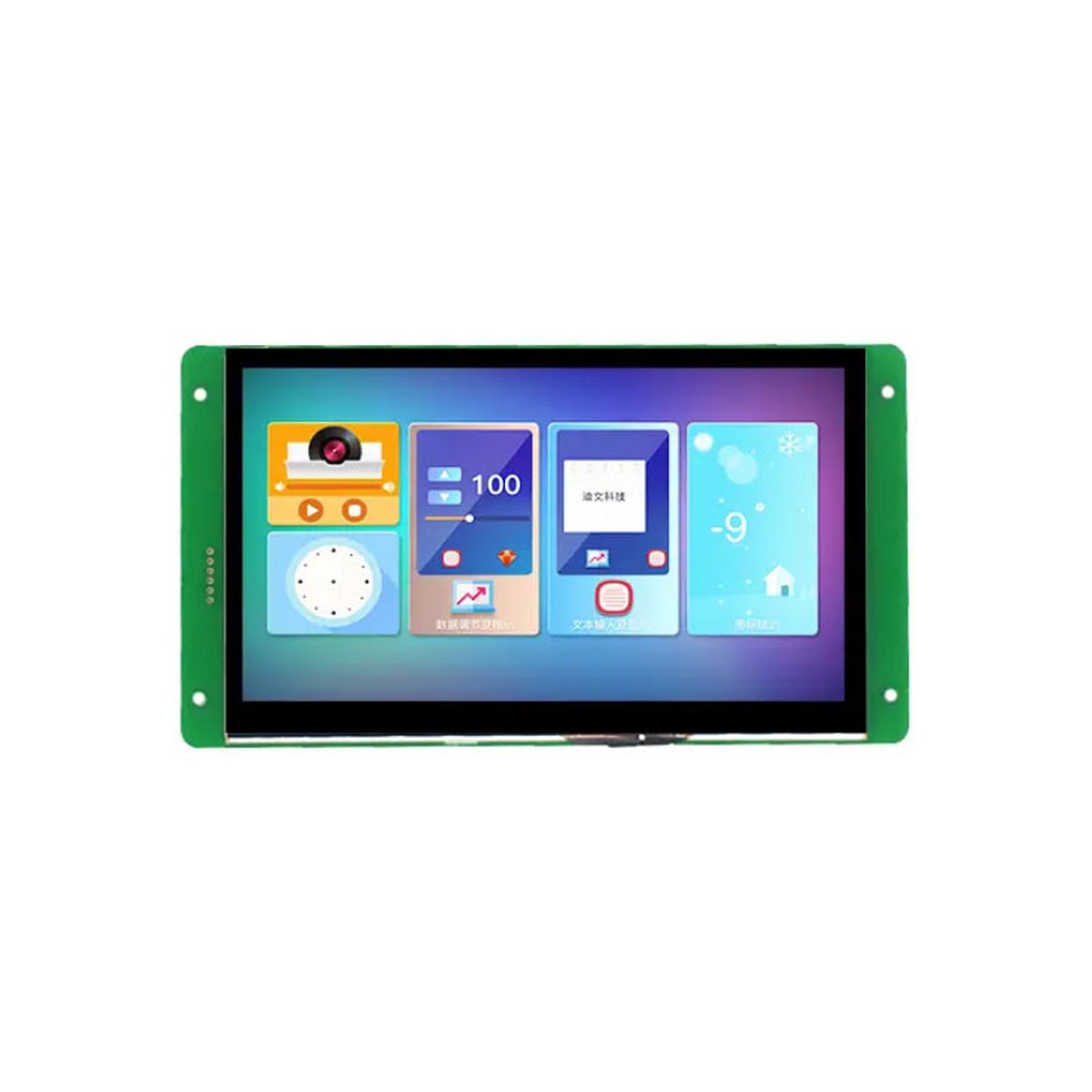

The DMG10600C070_03WTC – 7.0inch 1024×600 IPS UART LCD Display Capacitive Touch 16MB Flash Buzzer SD interfaceis developed by DWIN. The NOR Flash memory in the display is available to store the user database.
The LCD is integrated with a running DGUS II system, a GUI (Graphical User Interface) development software. The pre-installed UI user interface development software can be used to develop your own design and customised features like buttons, text display, graph and slider etc. The T5L1 DWIN development software is a human-machine interface dedicated to ASIC designed by DWIN Technology for AIoT application applications. This software is based on a T5L chip that is a low-power, cost-effective dual-core 8051 processor.
Key Features

Based on T5L ASIC 7.0 Inches, 1024xRGBx600, 16.7M Colors, IPS screen
None touch;Resistive /Capacitive touch panel
UART2: ON=TTL/CMOS; OFF=RS232;UART4: ON=TTL/CMOS; OFF=RS232; 10Pin_1.0mm FCC Socket
Download methods:via SD card or on-line serial port
Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required
Dual Development System:DGUS/TA(Instruction set)
LCD:IPS View Angle:85/85/85/85(L/R/U/D)
With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51

Resources

Datasheet
T5L_DGUSII Application DevelopmentGuide
DGUS Software Run Environment

Specifications

Applications

7.0inch 1024×600 IPS Industrial HMI LCD UART Display Video

FAQs:
Q: What is the 7″ 1024×600 CTP TTL/232 LCD Display used for?
A: This 7″ display offers a high-resolution screen with a 1024×600 pixel count and a capacitive touch panel, making it suitable for a variety of applications such as touch-based user interfaces, information displays, and embedded systems requiring a high-quality visual output and touch interaction.
Q: What are the main features of the 7″ CTP TTL/232 LCD Display?
A: Key features include a 7-inch screen with a 1024×600 resolution for clear and detailed visuals, a capacitive touch screen for smooth and responsive touch input, and TTL/232 interfaces for easy integration with various microcontrollers and development boards.
Q: How do I connect the 7″ LCD Display to my project?
A: Connect the display using a 40-pin TTL interface for video signals and a 4-pin TTL/RS-232 connector for serial communication. Refer to the included connection diagram and wiring instructions to ensure correct setup for your specific application.
Q: What type of touch technology does the 7″ LCD Display use?
A: The display uses capacitive touch technology, which supports gestures such as tapping, swiping, and pinching. This technology provides a high level of accuracy and durability compared to resistive touch screens.
Q: What are the power requirements for the 7″ CTP TTL/232 LCD Display?
A: The display requires a 5V DC power supply. You can provide this power through a micro-USB connection or another 5V power source. Ensure that your power supply can deliver sufficient current for reliable operation.
