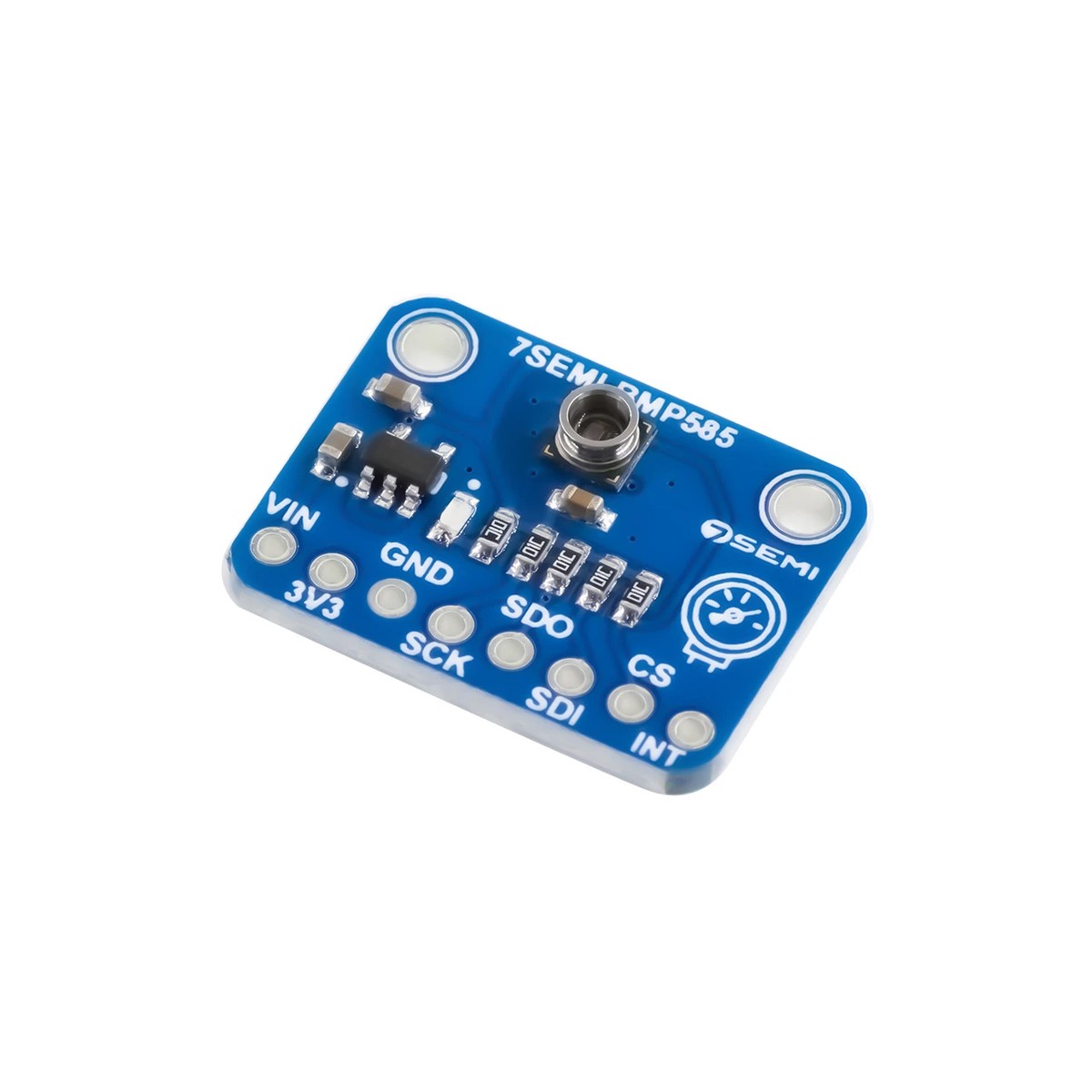

High-Precision 7Semi BMP585 Pressure Sensor Breakout Reliable Performance and Real-Time Data for Demanding Applications
The 7Semi BMP585 Pressure Sensor Breakout is an advanced, high-resolution pressure sensor designed for precision and versatility across various applications. Engineered by Bosch Sensortec, this sensor offers outstanding accuracy and sensitivity, with a pressure sensing resolution of 1/64 Pa and absolute accuracy of 0.5 hPa. Its onboard linearization and temperature compensation ensure that the sensor delivers accurate, absolute data in real-time, suitable for scientific research, environmental monitoring, and industrial automation.
This compact breakout board supports both I2C and SPI communication protocols, providing flexibility in design and seamless integration into existing systems. With a pressure sensing range of 30 to 125 kPa and data rates reaching up to 622Hz, the BMP585 is optimized for high-performance applications that demand rapid, precise measurements. Multiple configurable modes (Normal, Forced, Continuous, Standby, and Deep Standby) allow for energy-efficient operation, making it ideal for battery-powered devices.
Key Features:

High Resolution & Accuracy: Exceptional pressure sensing resolution at 1/64 Pa with an accuracy of 0.5 hPa, delivering highly precise data.

Wide Pressure & Temperature Range: Measures pressure from 30 to 125 kPa and temperature from -40C to 85C, ensuring versatility across diverse applications.

Flexible Data Communication: Compatible with both I2C (up to 1MHz) and SPI (up to 12MHz) protocols for easy integration into various systems.

Programmable Functionality: Includes configurable oversampling, FIFO buffer (stores up to 32 samples), low-pass filtering, and 6 bytes of user-programmable non-volatile memory.

Energy-Efficient Operation: Offers five operational modes, with low power consumption at 1.5A in Deep Standby and 260A peak during measurements.

Compact Design: Small breakout board with 0.1 spaced pins for quick soldering and connectivity.

Resources

BMP585 Datasheet
