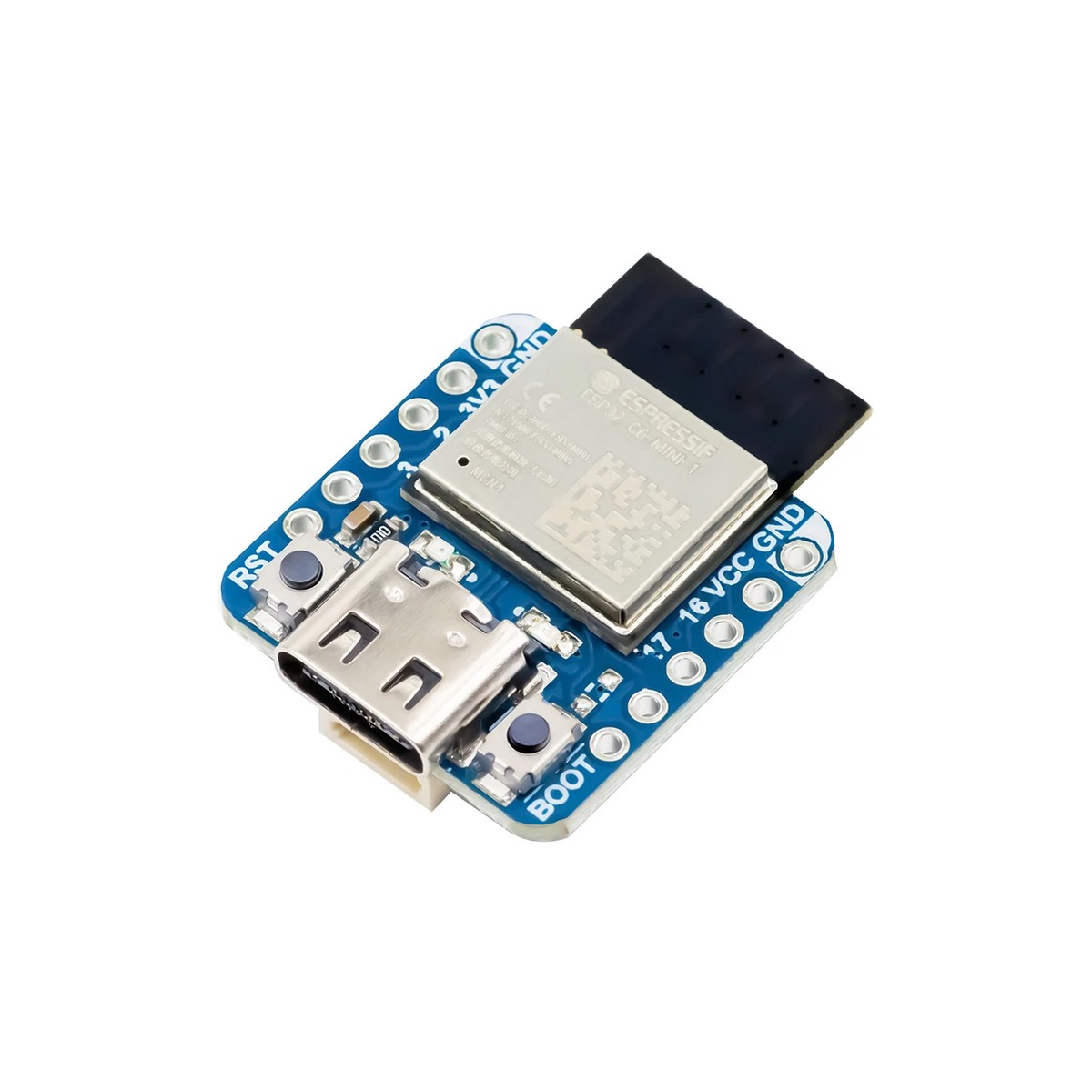

Embrace the flexibility and power of wireless development with the remarkably compact 7Semi ESP32-C6 Mini WiFi Development Board. Designed for seamless integration into your existing Qwiic projects, this board delivers impressive features within its space-saving 1-inch x 1-inch footprint.
At its core lies the ESP32-C6-MINI-1-N4 module, featuring a RISC-V single-core processor and a generous 4MB of flash memory. Experience the versatility of its onboard wireless stack, supporting cutting-edge WiFi 6 alongside Bluetooth 5.3, Zigbee, and Thread (802.15.4) protocols. Connect and configure your development board effortlessly with its USB-C connector, Qwiic connector, or a 2-pin JST battery connector (with integrated charging for portable applications).
Engineered for power efficiency, this board consumes a mere ~14A in deep sleep mode, making it exceptionally well-suited for battery-powered wireless projects. While compact, it doesn’t compromise on connectivity, providing essential peripherals like SPI, UART, LPUART, I2C, I2S, LED PWM, a USB Serial/JTAG interface, ADC, and eight flexible GPIO pins.
Pinouts

Key Features & Benefits:

Effortless Qwiic Integration: Plug and play with your Qwiic-based projects for rapid prototyping.

Space-Saving Design: Perfect for projects where every millimeter counts.

Remarkable Power Efficiency: Extend battery life for remote and portable applications.

Comprehensive Wireless Support: Choose the ideal protocol with WiFi 6, Bluetooth, Zigbee, and Thread.

Customizable Hardware: Tailor your solution with a range of peripheral interfaces.

Developer-Friendly: Easy to connect and program for faster project completion.

ESP32-C6 MINI-1 Module:

32-bit RISC-V Single-Core Microprocessor
23 Multifunctional GPIO

Mostperipherals available on any GPIO pin.

Up to 7 12-bit ADC Channels
Up to 2 UART Channels (with flow control)
USB Serial
One Low Power UART Channel
One I2C Channel
One Low Power I2C Channel
LED PWM
One I2S Channel
4 MB Flash
2.4 GHz WiFi 6
Bluetooth5 LE
Zigbee & Thread (802.15.4)
PCB Antenna
Matter-compatible

Qwiic Form-Factor:

Dimensions: 1″ x 1″
Four Mounting Holes
8 PTH pins
USB-C Connector
2-pin JST Connector for LiPo Battery (not included)
4-pin Qwiic Connector
MCP73831 Battery Charger

Charge Rate: [email protected]

LEDs:

PWR- Power LED
CHG- Battery Charging Indicator
STAT- Status LED

Buttons:

BOOT

RESET

Resources
ESP32-C6-MINI-1-N4 Datasheet
