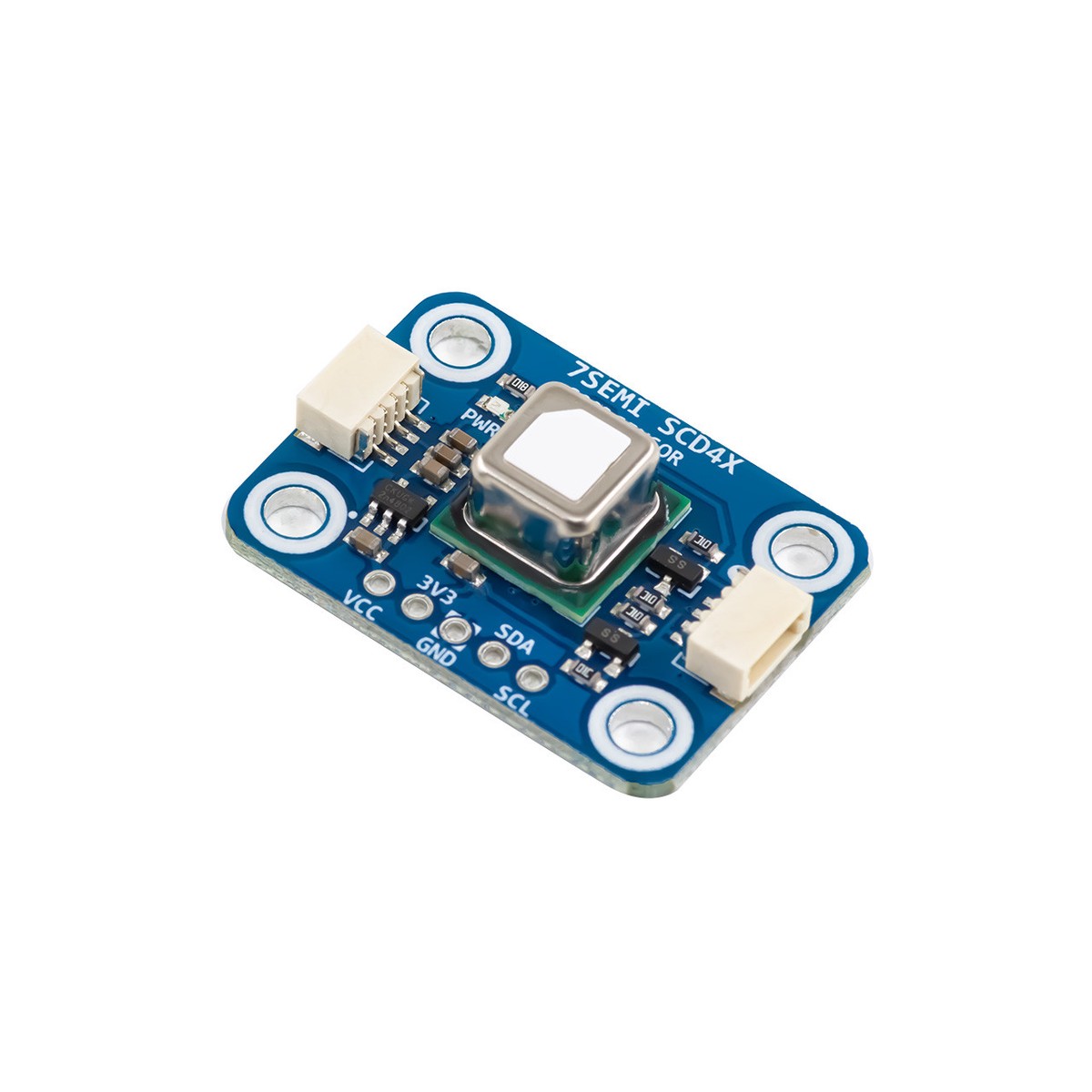

Accurately Measure CO2, Temperature & Humidity: The 7Semi SCD40 Sensor Breakout I2C
The 7Semi SCD40 CO2 Sensor Breakout I2C is a compact, high-performance sensor board designed for easy and cost-effective evaluation of Sensirion’s SCD40 CO2 sensor. This sensor excels in measuring carbon dioxide (CO2) levels, temperature, and humidity, making it ideal for various applications.

Precise CO2 Detection
The SCD40 utilizes advanced photoacoustic technology to detect CO2 concentrations with exceptional accuracy. It boasts a measurement range of 400 ppm to 2000 ppm, with the highest accuracy ((50 ppm + 5% of reading)) achieved within this range.

Integrated Environmental Sensors
For enhanced accuracy, the SCD40 incorporates built-in temperature and humidity sensors. These integrated sensors compensate for environmental fluctuations, ensuring reliable CO2 readings.

Low Power Consumption
The sensor operates in an ultra-low power consumption mode, making it suitable for battery-powered applications requiring continuous CO2 monitoring. This feature extends battery life and streamlines integration into portable devices.

Compact Design
Small form factor allows for integration into space-constrained projects.

Easy I2C Interface
The SCD40 breakout board features a user-friendly I2C interface for seamless communication with various microcontrollers and development boards. This simplifies integration and data acquisition processes.

Long-lasting Performance
The sensor offers a lengthy lifespan with minimal recalibration needs, ensuring long-term reliability and cost-effectiveness for CO2 level measurement across diverse environments.

Versatile Applications
With its compact size and exceptional performance, the 7Semi SCD40 CO2 Sensor Breakout I2C caters to a wide range of applications, including:

Indoor air quality monitoring

HVAC system optimization

Smart home automation

Building automation

SCD40 Specifications

Photoacoustic CO2 sensor technology (carbon dioxide sensor)
Integrated temperature and humidity sensor
Measurement range: 400 ppm 2000 ppm
Accuracy: +-(50 ppm + 5 % of reading)
Current consumption: 17 mA (meas. rate = 5 s) / 0.5 mA (meas. rate = 5 min)
Fully calibrated and linearized
I2C digital interface

The 7Semi SCD40 CO2 Sensor Breakout is a versatile tool for developers, engineers, and hobbyists seeking a reliable and accurate solution for measuring CO2, temperature, and humidity.
Resources

SCD40 Datasheet

User Guide and sample code

Evelta SCD40 Breakout 3D Step File

Sensirion I2C SCD4x Arduino Library (Library for the SCD4X sensor family by Sensirion Enables you to use the SCD40 and SCD41 sensors via I2C.)

SCD40 Breakout Dimensions

SCD40 carbon dioxide sensor Breakout I2C Arduino Connections

CO2 Sensor or Carbon Dioxide Sensor : A CO2 sensor / carbon dioxide sensor is a device used to measure the concentration of carbon dioxide (CO2) in the air. These sensors use various technologies, including infrared sensing and electrochemical detection, to detect and measure the levels of CO2 in the atmosphere. CO2 sensors / carbon dioxide sensors are commonly used in a wide range of applications, including indoor air quality monitoring, HVAC systems, and environmental monitoring. They are also used in industries such as agriculture, healthcare, and automotive to monitor and control CO2 levels. CO2 sensors / carbon dioxide sensors are important tools for ensuring the health and safety of individuals and the environment, as well as for improving energy efficiency and reducing carbon emissions.
FAQs:
Q: What parameters does the 7SEMI SCD40 Sensor measure?
A: The 7SEMI SCD40 Sensor measures CO2 concentration, temperature, and humidity. It provides comprehensive environmental data for air quality monitoring.
Q: How is the 7SEMI SCD40 Sensor connected to a microcontroller?
A: The 7SEMI SCD40 Sensor connects to a microcontroller via the I2C interface. It has dedicated SDA and SCL pins for seamless integration with compatible development boards.
Q: What is the measurement range for CO2 concentration on the SCD40 Sensor?
A: The 7SEMI SCD40 Sensor measures CO2 concentration in the range of 400 to 2000 ppm, making it suitable for indoor air quality applications.
Q: What is the accuracy of the temperature and humidity measurements?
A: The SCD40 Sensor offers high accuracy for temperature measurements (0.5C) and humidity measurements (3% RH). This ensures reliable environmental monitoring.
Q: What power supply is required for the 7SEMI SCD40 Sensor?
A: The SCD40 Sensor requires a 3.3V to 5V DC power supply. Ensure that your power source provides a stable voltage within this range for optimal sensor performance.
Q: Can the SCD40 Sensor be used in outdoor environments?
A: The SCD40 Sensor is designed primarily for indoor use. For outdoor applications, it should be housed in a protective enclosure to shield it from harsh environmental conditions.
Q: What applications is the 7SEMI SCD40 Sensor suitable for?
A: The 7SEMI SCD40 Sensor is ideal for indoor air quality monitoring, HVAC systems, greenhouses, and other applications requiring precise measurement of CO2, temperature, and humidity levels.
Q: Are there any software libraries available for the SCD40 Sensor?
A: Yes, there are software libraries available for the SCD40 Sensor that support popular development environments like Arduino and Raspberry Pi. These libraries facilitate easy integration and data reading.
Q: How do you calibrate the 7SEMI SCD40 Sensor?
A: The SCD40 Sensor features automatic self-calibration. For manual calibration, refer to the sensor’s datasheet and use standard reference gases or conditions for accurate calibration.
Q: What is the response time of the SCD40 Sensor for CO2 measurements?
A: The SCD40 Sensor has a rapid response time for CO2 measurements, typically within seconds, allowing for real-time monitoring and quick detection of changes in CO2 levels.
