High-Performance STM32 Development Platform: Build and Prototype Efficiently with STM32G0B1CET6 Microcontroller

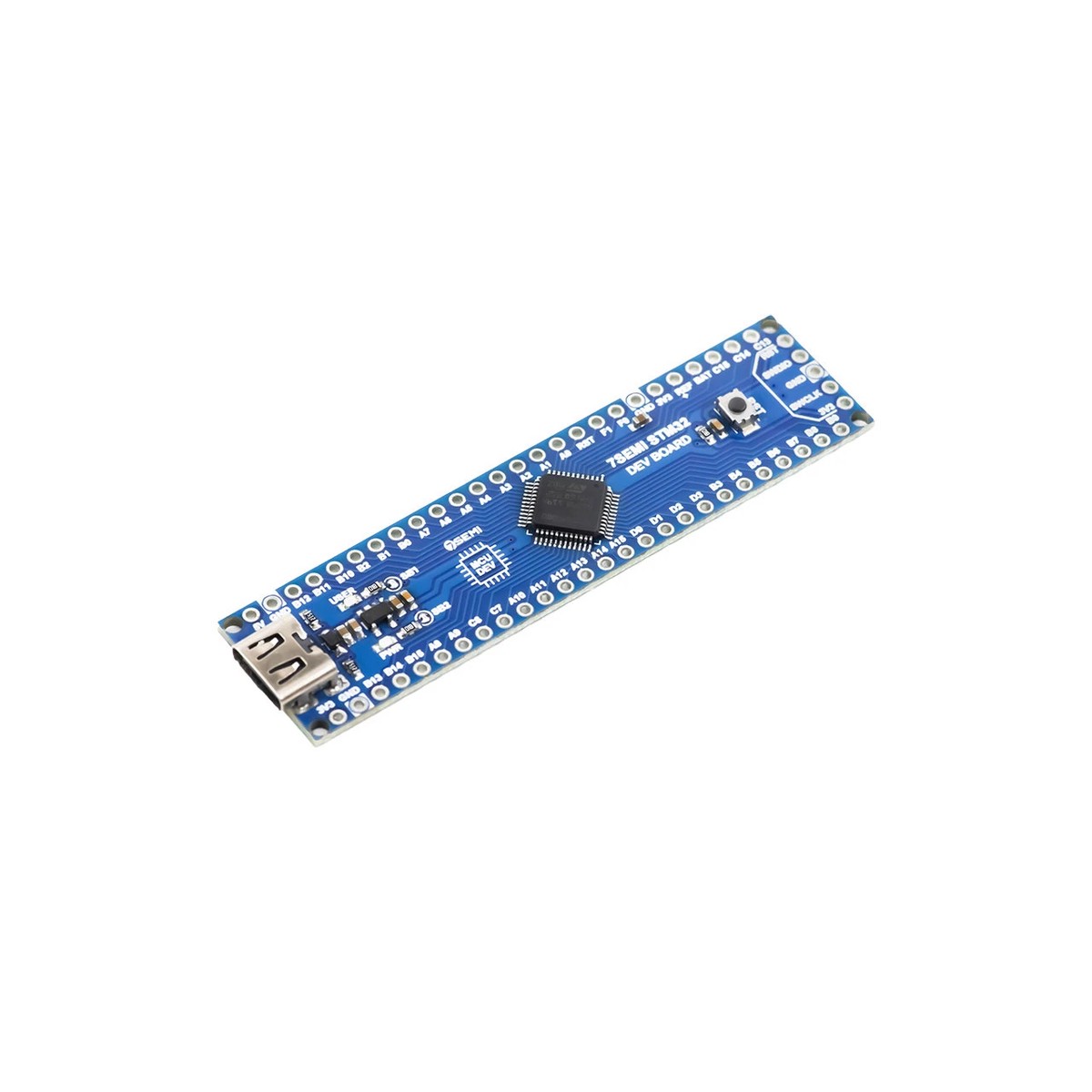

The 7Semi STM32G0B1CET6 STM32 Development Board is a compact and robust development platform engineered for performance-critical embedded applications. Powered by the STM32G0B1CET6 microcontroller, this board is based on the high-performance Arm Cortex-M0+ 32-bit RISC core running at up to 64 MHz. It is built to support a wide range of use cases in consumer electronics, industrial control systems, smart appliances, and IoT device prototyping. Designed for low power consumption and maximum system integration, this board helps developers create efficient and scalable embedded solutions.
With 512 KB of Flash and 144 KB of SRAM, integrated MPU, and a rich set of peripherals, the STM32G0B1CET6 delivers optimal performance for demanding real-time applications. The board offers multiple connectivity interfaces, including USB, I2C, SPI, USART, and I2S, plus onboard debugging through the SWD interface. It also features a USB-C power input, reset button, and user-programmable LED, giving developers full control for rapid testing and iteration across different development environments.
Key Features for Embedded System Development: Explore Industrial-Grade Capabilities with Ease

STM32G0B1CET6 Microcontroller:Based on Arm Cortex-M0+ core running at 64 MHz, suitable for real-time and IoT applications.

High-Speed Memory Integration:512 KB Flash and 144 KB SRAM with read and write protection, ideal for complex firmware development.

Versatile Communication Interfaces:Supports 3x I2C (Fast-mode Plus), 3x SPI (up to 32 Mbit/s), 2x I2S, 6x USARTs, and 1x USB full-speed interface.

Advanced ADC and Timers:12-bit ADC (2.5 MSps) with up to 19 channels, 6 general-purpose timers, PWM, SysTick, and watchdog timers.

Onboard Power and Debugging:USB-C for stable power delivery and SWD interface for seamless programming and real-time debugging.

User Interaction Controls:Includes a programmable user LED, reset button, and power indicator for status monitoring and interaction.

Resources

STM32G0B1CET6 datasheet
