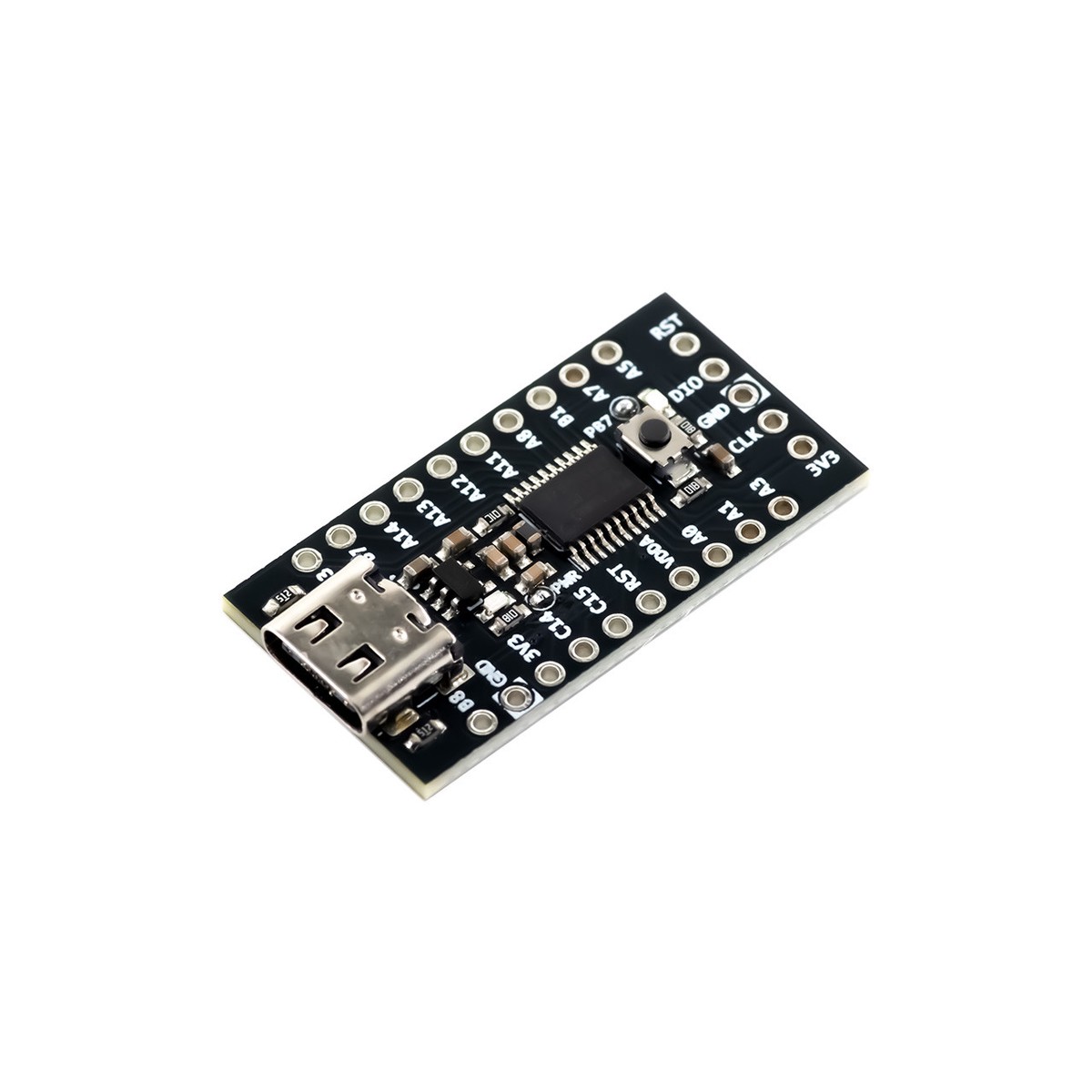

The7Semi STM32U031F8P6 Dev Boardis a compact development platform built around STMicroelectronicsSTM32U031F8P6, a 32-bit ARM Cortex-M0+ MCU that delivers ultra-low power consumption with impressive performance and flexible connectivity.
Designed for power-sensitive applications, this board integrates nativeUSB Type-C, onboard regulator, reset/user button, and access to all I/O pins making it perfect for wearable, sensor, IoT, and edge computing projects.
Features

STM32U031F8P6 Microcontroller

ARM Cortex-M0+ core @ 56 MHz

64KB Flash, 8KB SRAM

USB Type-Cconnector for power and programming

Ultra-Low Power Consumption Ideal for battery-operated devices

All GPIOs Broken Out

OnboardReset ButtonandUser Button

Applications

Battery-powered IoT nodes

Sensor fusion and edge ML

Low-power wireless platforms

Environmental or biomedical sensing

Wearables and health tech

Educational STM32 exploration

Whats Included

1 7Semi STM32U031F8P6 Development Board

Frequently Asked Questions (FAQ)
Q1: Can I program this board using STM32CubeIDE?A:Yes, STM32CubeIDE with ST-Link/SWD interface is fully compatible.
Q2: Does the board support USB communication?A:It includes a USB-C port for power.
Q3: Can I use PlatformIO or Arduino with STM32U0 series?A:PlatformIO support is emerging. For Arduino, STM32U0 is not natively supported yet.
Q4: Is the board breadboard compatible?A:Yes, the board has 2.54mm spacing for breadboard or jumper wire use.
Q5: What’s the best use-case for STM32U031F8P6?A:Low-power sensing, data logging, and wearable devices due to its low current draw and small footprint.
Resources

STM32U031F8P6 Datasheet
