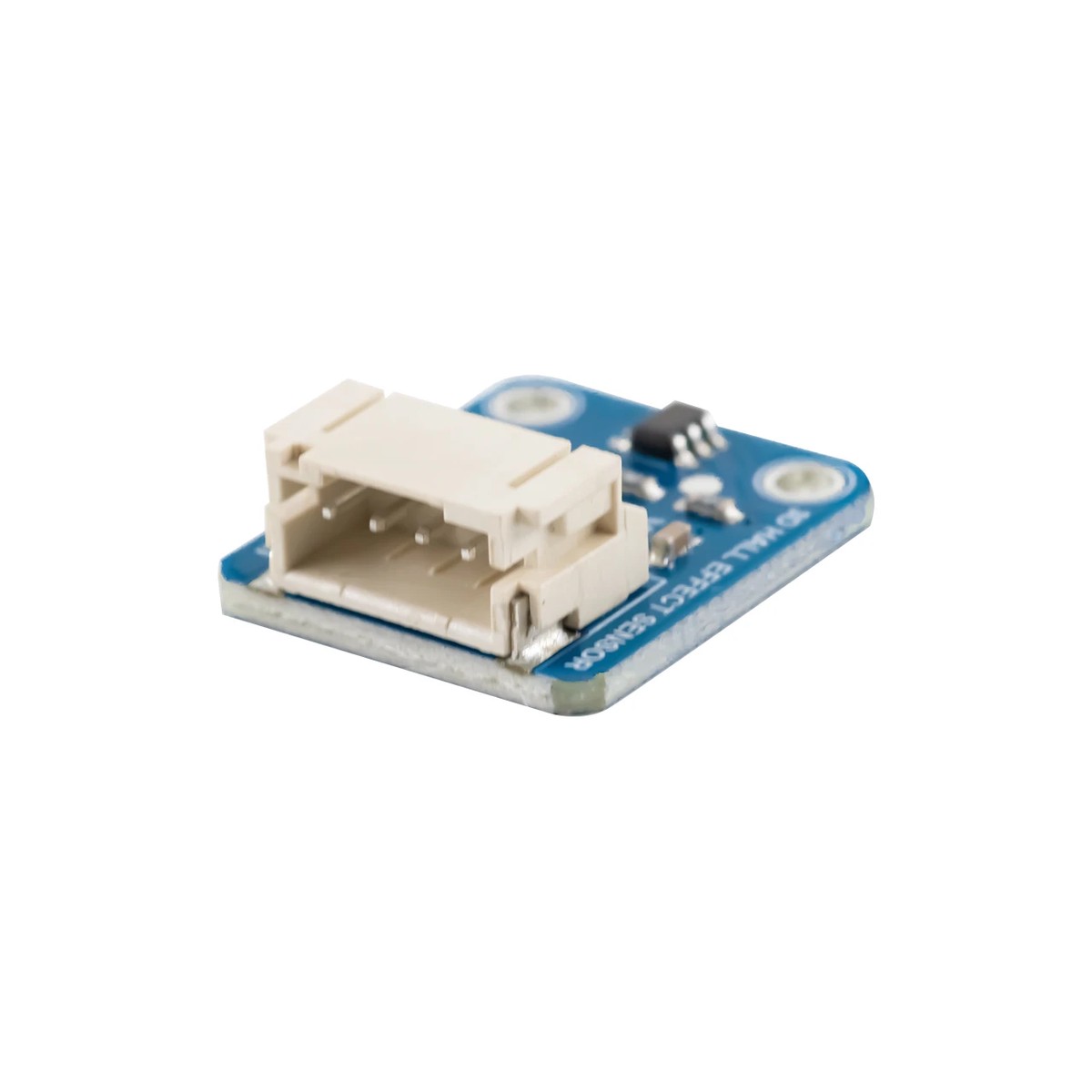

Enhance Your Projects with the 7Semi TMAG5273 Linear 3D Hall-effect Sensor: Revolutionize your designs with this advanced sensor
The 7Semi TMAG5273 Linear 3D Hall-effect Sensor, featuring the Texas Instruments TMAG5273, is a cutting-edge solution for industrial and personal electronics applications. This sensor integrates three independent Hall-effect sensors along the X, Y, and Z axes, offering precise analog signal processing and digitization through an integrated 12-bit ADC. With its IC interface and 4Pin JST Connector, it ensures effortless integration with any microcontroller unit (MCU). The TMAG5273 is engineered to provide seamless data communication, supporting multiple operating VCC ranges and ensuring optimal performance across various applications.
Key Features:
Selectable Magnetic Range at X, Y, or Z axis:TMAG5273x1: 40mT, 80mTTMAG5273x2: 133mT, 266mT

Precision and Efficiency:

Interrupt signal from user-defined magnetic and temperature thresholds
5% typical sensitivity drift
Integrated angle CORDIC calculation with gain and offset adjustment
20kSPS single-axis conversion rate
Configurable averaging up to 32x for noise reduction

Optimized Communication:

I2C interface with cyclic redundancy check (CRC)
Maximum 1-MHz I2C clock speed
Special I2C frame reads for improved throughput
Factory-programmed and user-configurable I2C addresses

Enhanced Durability:

Integrated temperature compensation for various magnet types

Built-in temperature sensor

supply voltage: 3.3V

Operating temperature range: 40~125C

Resources

TMAG5273 Datasheet
