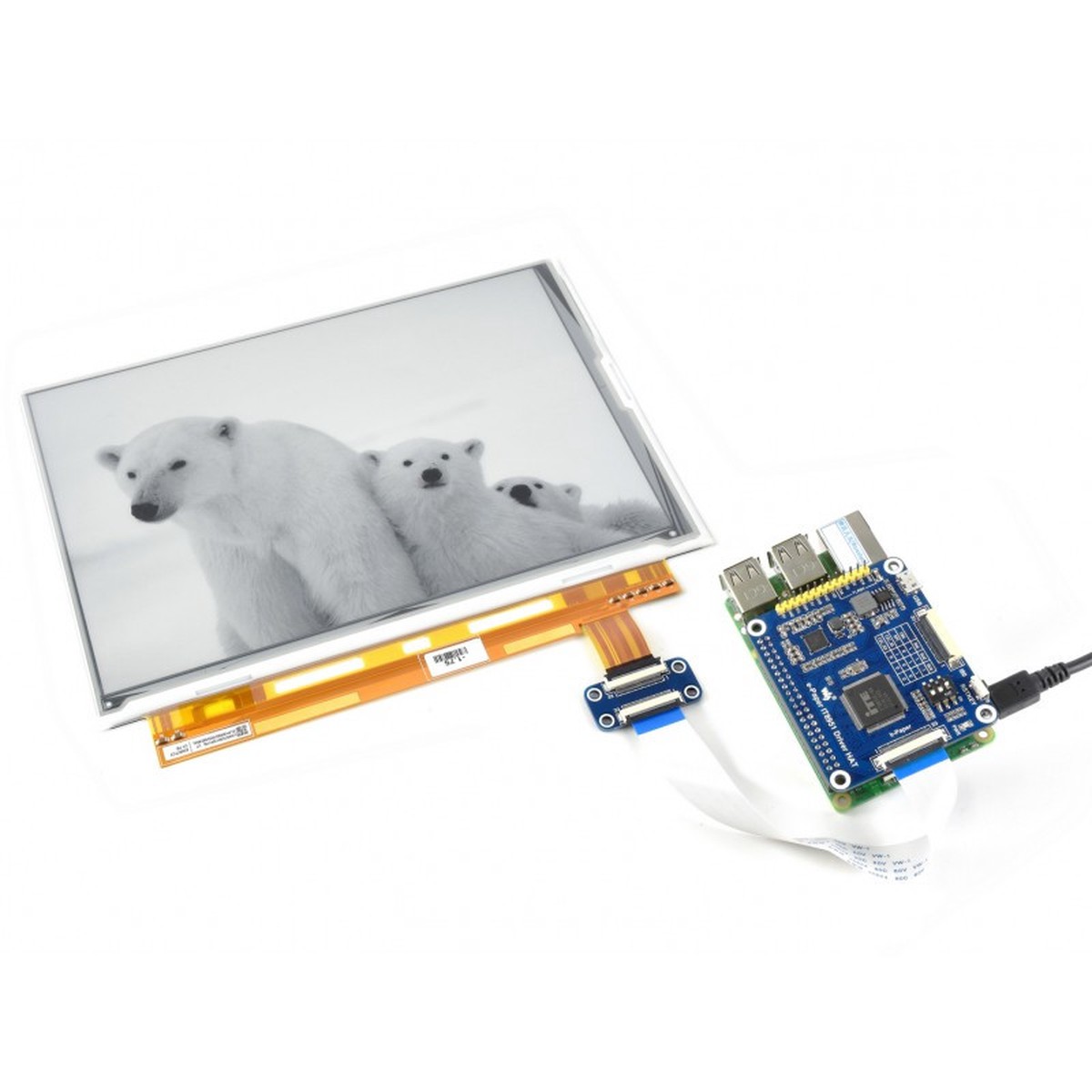

This is an E-Ink display HAT for Raspberry Pi, 9.7inch, 1200×825 resolution, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Key Features
– No backlight, keeps displaying last content for a long time even when power down- Low power consumption, basically power is only required for refreshing- Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+- USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.- Comes with development resources and manual (examples for Raspberry Pi/STM32)

Resources

Datasheet
Demo code for Raspberry Pi
Demo code for STM32 (Open429I)
Waveshare Wiki

Interface

Dimensions

FAQs:

Q:What is the resolution of the 9.7 inch E-Ink display HAT?
A:The resolution of the display is 1200×825.

Q:What is the main advantage of using an E-Ink display?
A:The main advantage is its ultra-low power consumption and the ability to keep displaying content even when powered down.

Q:Which Raspberry Pi models are compatible with this display HAT?
A:This display HAT is compatible with Raspberry Pi Zero, Zero W, Zero WH, 2B, 3B, and 3B+.

Q:What interfaces are available for connecting the display HAT to host boards?
A:The display HAT supports USB, SPI, I80, and I2C interfaces for connecting with host boards like Raspberry Pi and Nucleo.

Q:Are there any development resources and examples available for this display HAT?
A:Yes, the display HAT comes with development resources and a manual, including examples for Raspberry Pi and STM32.
