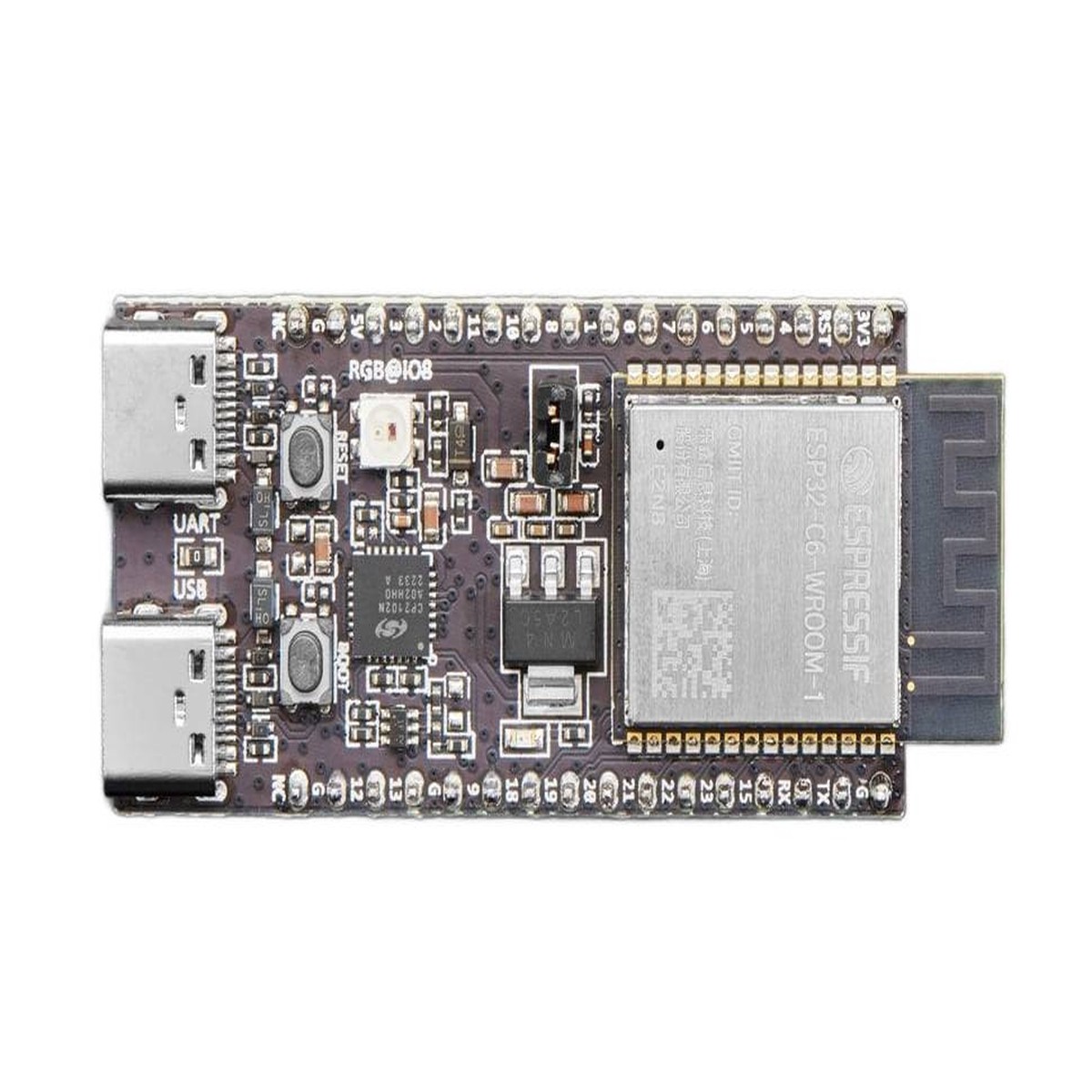

ESP32-C6-DevKitC-1-N8 with 8MB SPI Flash Wi-Fi 6, Bluetooth 5, Zigbee, and Thread Development Board
The ESP32-C6-DevKitC-1-N8 is an entry-level development board powered by the ESP32-C6-WROOM-1 module, designed for cutting-edge wireless IoT applications. Built around a 32-bit RISC-V single-core CPU running at up to 160 MHz, it integrates Wi-Fi 6, Bluetooth 5 (LE), Zigbee 3.0, and Thread (802.15.4), making it a versatile choice for multi-protocol connectivity and low-power IoT systems. This version comes with 8MB SPI Flash, providing sufficient storage for advanced projects.
The board offers full GPIO access with most I/O pins broken out to headers, allowing developers to easily prototype using jumper wires or a breadboard. It includes both a USB-to-UART interface for programming/debugging and a native USB Type-C port for USB OTG communication, enabling simultaneous upload, debug, and USB tasks. While Arduino and CircuitPython support is not yet available, developers can fully leverage the ESP-IDF framework for professional development.
Key Features of ESP32-C6-DevKitC-1-N8

ESP32-C6-WROOM-1 Module:

Wi-Fi 6 (802.11ax) support for efficient, low-latency connections.

Bluetooth 5 LE for low-energy wireless applications.

IEEE 802.15.4 support for Zigbee 3.0 and Thread networks.

PCB antenna + 8MB SPI Flash.

Processor:

RISC-V 32-bit single-core CPU @ 160 MHz.

Low-power co-processor for sensor monitoring during deep sleep.

Memory & Storage:

8MB SPI Flash.

Rich peripheral support including SPI, UART, I2C, I2S, LCD, camera interface, MCPWM, ADC, DAC, timers, TWAI, and watchdogs.

Connectivity & I/O:

USB Type-C (native) compliant with USB 2.0 FS (12 Mbps).

USB-to-UART interface for programming/debugging.

Up to 45 GPIOs broken out to pin headers.

RGB LED (GPIO8).

Power Options:

USB Type-C (default).

5V & GND pin headers.

3.3V & GND pin headers.

Other Features:

Boot & Reset buttons.

Onboard 5V-to-3.3V LDO regulator.

Power-on LED indicator.

J5 header for current measurement.

Documentation:

Hardware reference guide
Dimensions
Pinout Diagram
PCB Layout
Schematics
