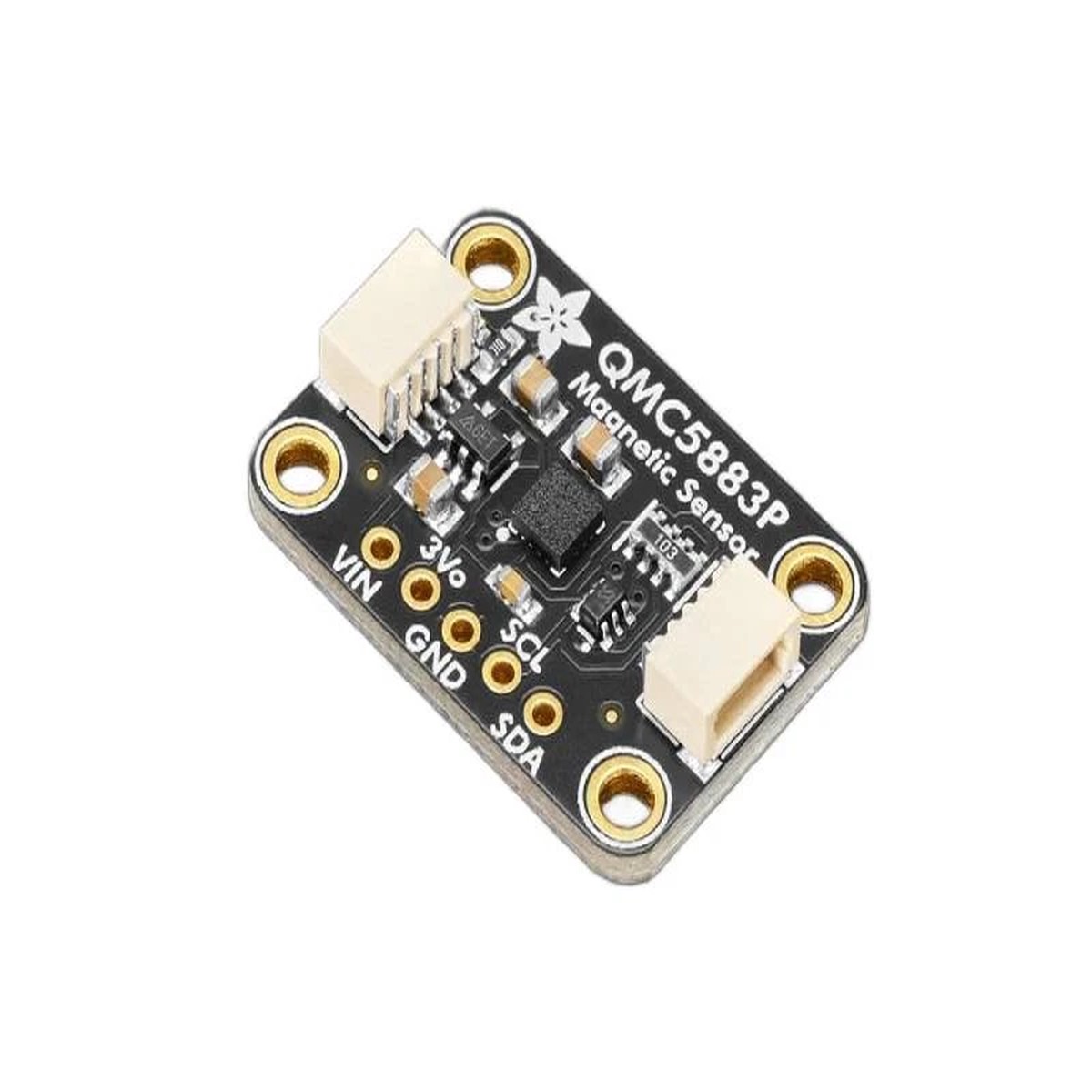

Adafruit QMC5883P Triple Axis Magnetometer Module: High-Precision Digital Compass Sensor for Robotics, Drones, and Navigation
The Adafruit QMC5883P Triple Axis Magnetometer is a compact, highly reliable sensor designed to measure magnetic fields with exceptional accuracy. Commonly used in robotics, drones, and navigation systems, this sensor acts as a digital compass and can be integrated with accelerometer and gyroscope modules to form a 9-DoF Inertial Measurement Unit (IMU). With a 16-bit ADC, programmable ranges, and I2C communication support, it delivers precise magnetic field data, making it an essential component for orientation and navigation projects.
Key Features of Adafruit QMC5883P Magnetometer

Triple-Axis Magnetic Sensing: Measures magnetic fields along X, Y, and Z axes for accurate 3D orientation.
Wide Measurement Range: Supports ranges from 2 Gauss (200 T) up to 30 Gauss (3000 T or 3.0 mT).
High-Resolution 16-bit ADC: Provides detailed and precise magnetic field readings.
Configurable Sampling Options: Includes settings for over-sampling and down-sampling to balance precision and performance.
I2C Communication Interface: Simple two-wire connection using SCL (clock) and SDA (data) pins for easy integration.
Compact and Lightweight: Ideal for drones, quadcopters, and portable electronic projects.
Compatible with Arduino & Raspberry Pi: Supported by ready-to-use libraries and example codes for seamless integration.
Stable Performance: Utilises Earths magnetic field for reliable direction detection and orientation tracking.
