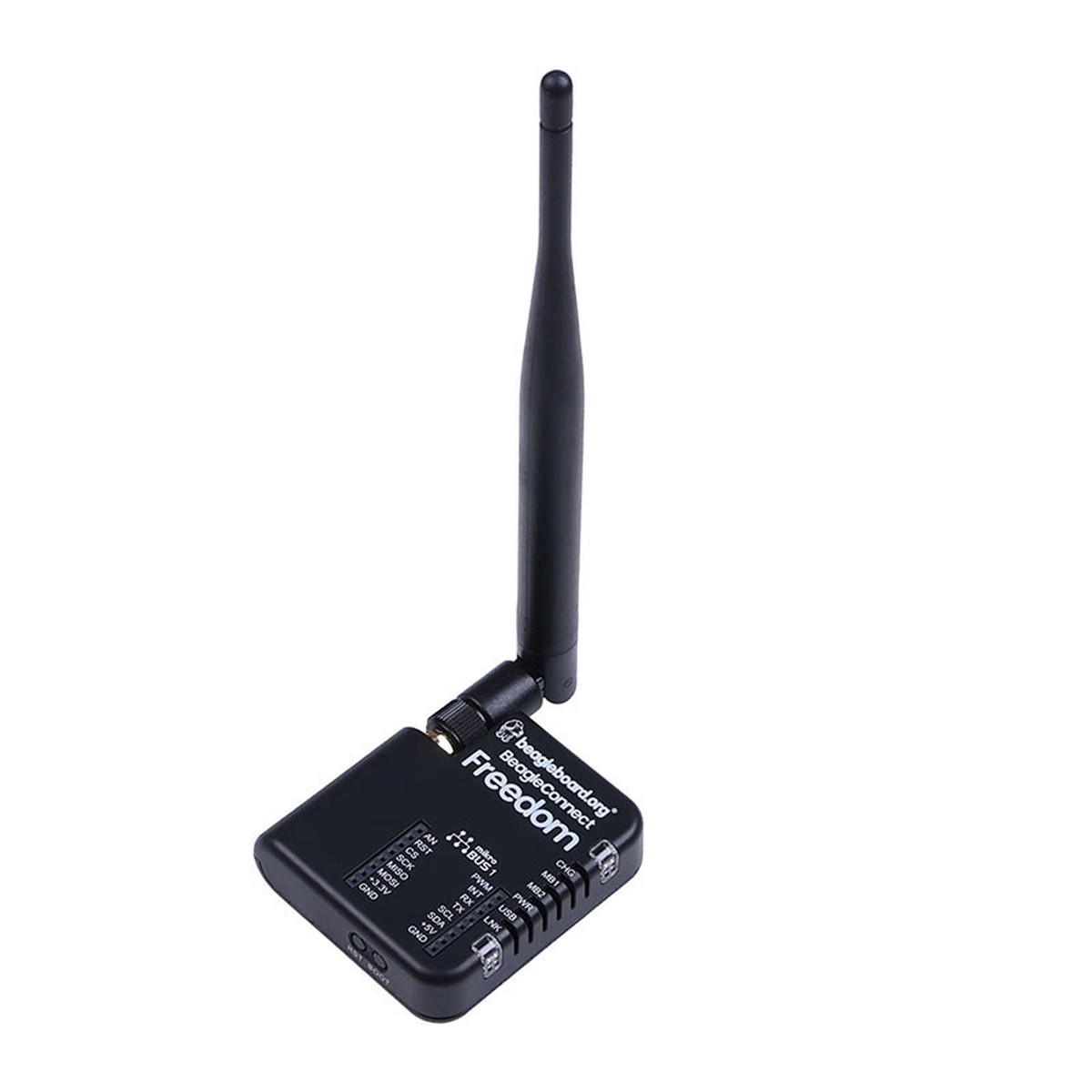

The BeagleConnect Freedom ARM Cortex-M4F Wifi Board is a cutting-edge solution for seamless wireless connectivity in your IoT designs. This remarkable board harnesses the power of the Texas Instruments SimpleLink CC1352P7 wireless microcontroller, running Zephyr and Micropython, to effortlessly leverage the capabilities of 2.4GHz and sub-1GHz IEEE 802.15.4 wireless networks.
Equipped with a Type-C USB-based serial console and firmware update functionality, this board ensures hassle-free maintenance and efficient upgrades. With two mikroBUS sockets, it seamlessly integrates with Click boards from MikroE, expanding the board’s potential for customization and diverse applications.
The BeagleConnect Freedom board is a feature-rich solution, incorporating a range of high-quality components such as the TI OPT3001 light sensor, TI HDC2010 humidity/temperature sensor, and TI BQ2104 battery charger. Furthermore, its programmable LEDs, programmable button, and reset button provide flexibility and ease of use.
Designed with convenience in mind, this board includes an on-board 2.4GHz chip antenna and enclosure, along with a SubGHz antenna. Its 32-bit Arm Cortex-M4F multiprotocol and multi-band wireless MCU ensures reliable performance, while the ample flash program memory, cache SRAM, and ultra-low leakage SRAM with parity guarantee high-reliability operation.
With support for a variety of wireless protocols and over-the-air upgrades, the BeagleConnect Freedom ARM Cortex-M4F Wifi Board offers exceptional versatility and future-proofing for your IoT projects. Embrace the freedom of wireless connectivity with this remarkable solution, empowering you to create innovative and impactful IoT applications.
Processor: Texas Instruments Simplelink CC1352P7

32-bit Arm Cortex-M4F multiprotocol and multi-band Sub-1 GHz and 2.4-GHz wireless MCU
704KB flash program memory
256KB of ROM for protocols and library functions
8KB of cache SRAM
144KB of ultra-low leakage SRAM with parity for high-reliability operation
Programmable radio includes support for 2-(G)FSK, 4-(G)FSK, MSK, OOK, Bluetooth 5.2
Low Energy, IEEE 802.15.4 PHY and MAC
Supports over-the-air upgrade (OTA)

Board Features

Type-C USB based serial console and firmware updates
2x mikroBUS sockets to support Click boards from MikroE
2MB SPI flash
TI OPT3001 light sensor
TI HDC2010 humidity/temperature sensor
TI BQ2104 battery charger
4 programmable LEDs
1 programmable button
1 reset button
On-board 2.4GHz chip antenna
Enclosure and SubGHz antenna

Package Contents

BeagleConnect Freedom board in enclosure
Antenna
USB cable
Quick-start card

Resources

BeagleConnect Freedom Datasheet
Quick Start Guide
Demos & tutorials

BeagleConnect Freedom

FAQs:
Q: What are the wireless capabilities of BeagleConnect Freedom?
A: The BeagleConnect Freedom features a Texas Instruments SimpleLink CC1352P7 wireless microcontroller, which supports both 2.4GHz and sub-1GHz wireless protocols. This means it can be used for Bluetooth Low Energy (BLE), Zigbee, Thread, and other proprietary protocols.
Q: Is the BeagleConnect Freedom compatible with existing sensors and accessories?
A: Yes, the BeagleConnect Freedom is compatible with over 1,000 mikroBUS add-on boards from MikroE, which offer a wide range of sensors, actuators, and other peripherals for rapid prototyping of IoT applications.
Q: What software platforms and operating systems are supported?
A: The BeagleConnect Freedom is primarily designed to be used with the Zephyr real-time operating system (RTOS), which is a scalable and modular platform for IoT devices. It also supports MicroPython for users who prefer a more beginner-friendly programming environment.
Q: What is the typical battery life of the BeagleConnect Freedom?
A: The battery life of the BeagleConnect Freedom will vary depending on the specific application and usage patterns. However, the CC1352P7 microcontroller is known for its low power consumption, and the board includes a battery charger to extend its operation time.
Q: Where can I find more information and resources for the BeagleConnect Freedom?
A: You can find comprehensive documentation, tutorials, and example projects for the BeagleConnect Freedom on the official BeagleBoard website (https://docs.beagleboard.org/latest/boards/beagleconnect/freedom/) and the Zephyr Project website (https://docs.zephyrproject.org/latest/boards/beagle/beagleconnect_freedom/doc/index.html).
