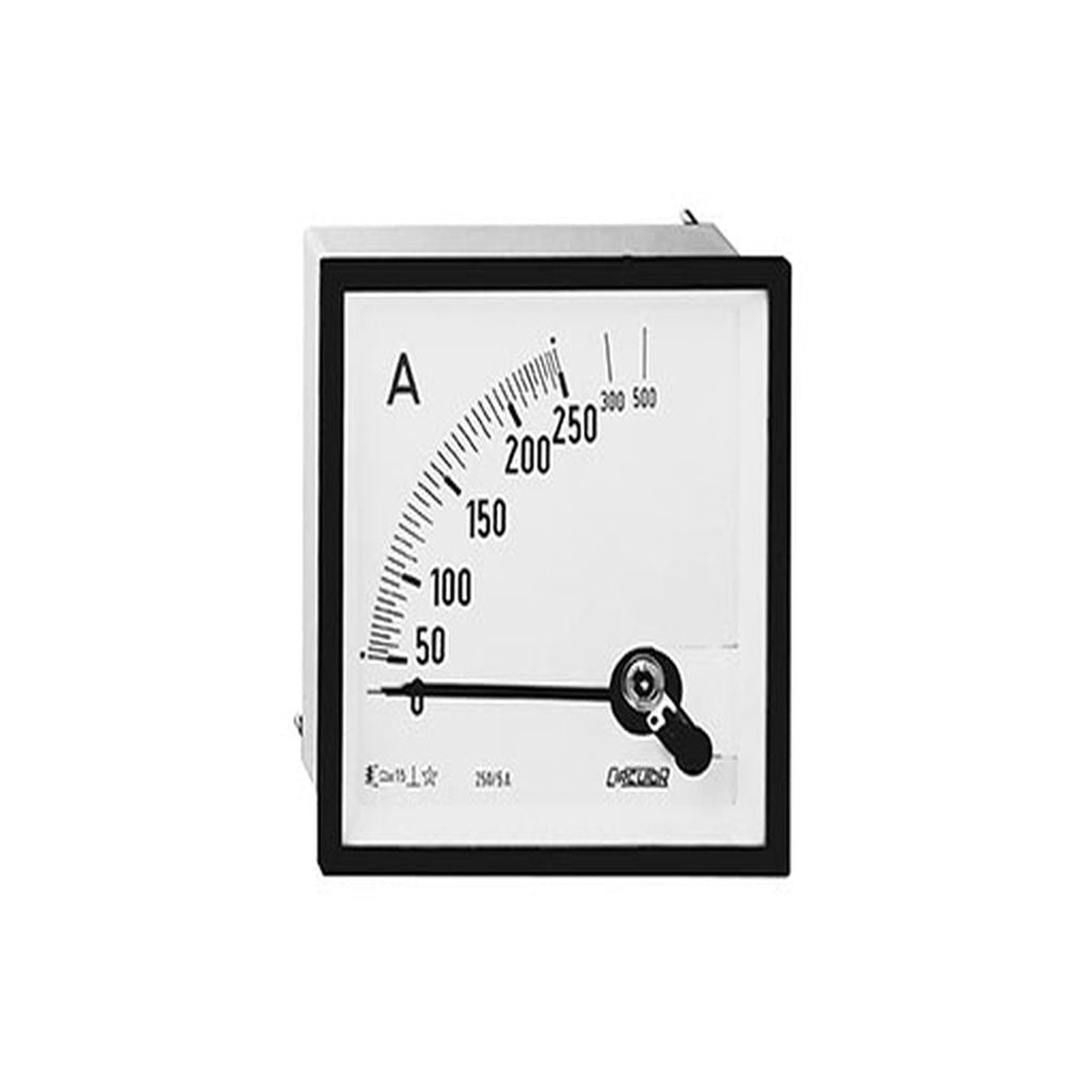

The Circutor EC72 5A (code M10222) is a moving iron panel ammeter for alternating current measurement. It measures AC current up to 5 A with class 1.5 accuracy and mounts into a standard 72 x 72 mm panel cutout, providing direct visual current readout in electrical distribution boards and control panels without requiring a separate auxiliary power supply.

Technical specifications:

• Model: EC72 5A
• Circutor code: M10222
• EAN: 8433059000776
• Measurement range: 5 A (AC)
• Accuracy class: 1.5 (1.5% FE)
• Scale: 90, P2
• Panel cutout / module size: 72 x 72 mm
• Overall dimensions: 72 x 72 x 49.2 mm
• Mounting: Panel mount
• Weight: 0.13 kg
• Front protection: IP 52
• Terminal protection: IP 00
• Working temperature: +10 to +30 C
• Storage temperature: -25 to +40 C
• Power consumption: 0.3 to 1.5 VA
• Frequency range: 20 to 100 Hz
• Continuous overload: 1.2 In
• Short-term overload: 5 In for 30 s; 10 In for 5 s; 40 In for 1 s
• Insulation voltage: 2 kV, 50 Hz (less than 1 min)
• Standards: CE, BS 89, UNE-EN 60051, IEC 144, DIN 43780, IEC 51, UNE 21318

Features and benefits:

• No auxiliary power supply needed: the instrument draws its operating power from the measurement circuit itself (0.3 to 1.5 VA), simplifying wiring and reducing installation complexity.
• True RMS measurement across a frequency range of 20 to 100 Hz ensures accurate current readings regardless of waveform variations in AC circuits.
• IP 52 front-face protection guards against dust and water splash in panel environments, making the meter suitable for industrial and commercial switchboard installations.
• Exchangeable scales are compatible with EC48, EC72, EC96, EM 45, EC 72 FA, and EC 96 FA series instruments, allowing dial replacement without removing the instrument body.
• Overload tolerance up to 40 times rated current for 1 second protects the meter against momentary fault currents in AC distribution systems.

Applications:

• Visual AC current monitoring in industrial and commercial electrical distribution boards.
• Motor control centers and switchgear panels requiring a compact 72 x 72 mm analogue current indicator.
• Building electrical installations where quick visual confirmation of current flow is needed without auxiliary power wiring.
• Control panel instrumentation in AC systems operating between 20 and 100 Hz.
