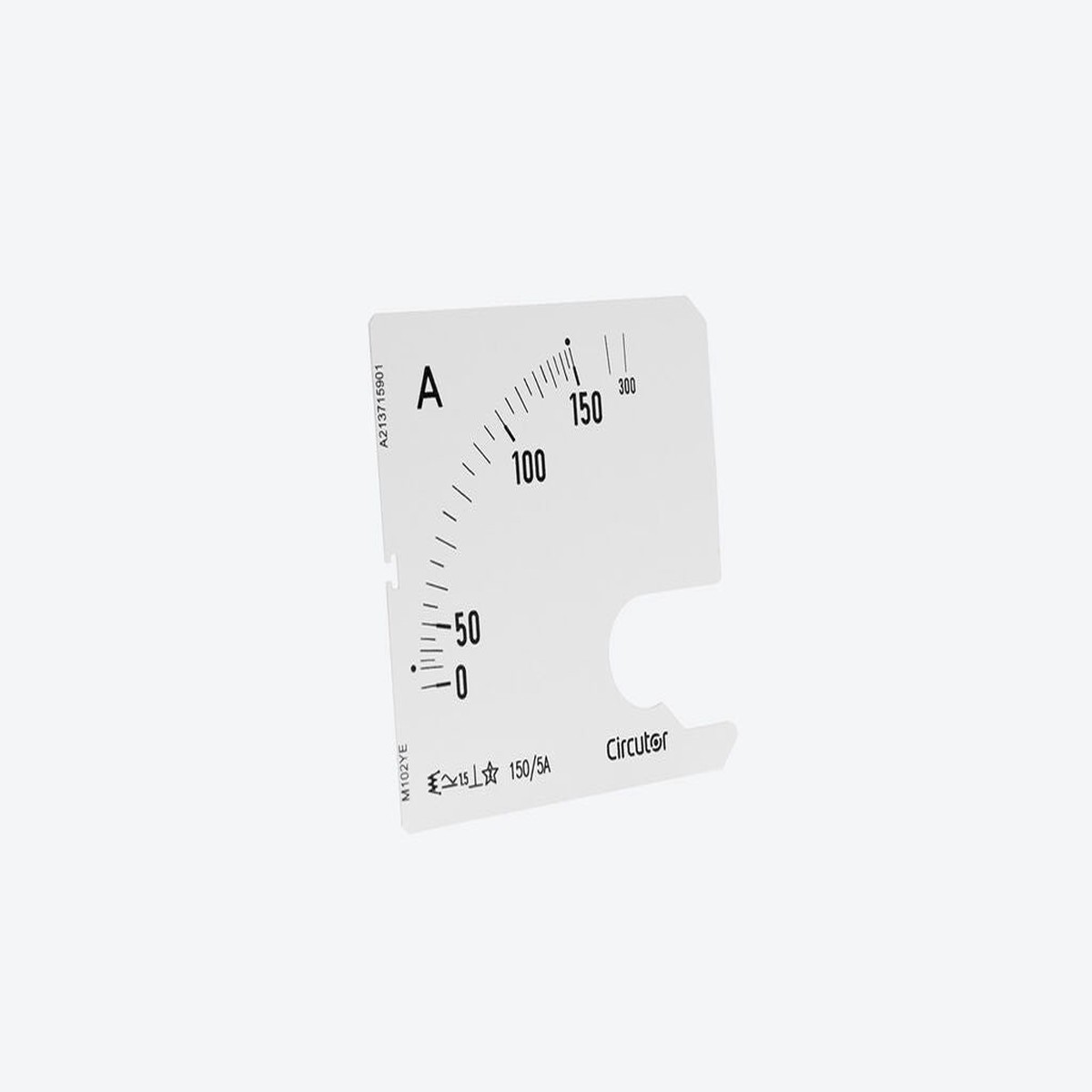

The Circutor SEC96 150/5A (code M102XE) is an exchangeable dial scale for the EC96 series moving iron panel ammeter. Designed for use with 150/5 A current transformer circuits, it sets the instrument’s displayed range to a full scale of 150 A primary current. The thin 84 x 84 x 1 mm scale card is matched to the 96 x 96 mm panel-mount EC96 ammeter, making it straightforward to reconfigure an existing instrument for a different current rating.

Technical specifications:

• Model: SEC96 150/5A
• Circutor code: M102XE
• EAN: 8433059002022
• Measurement range: 150/5 A
• Full scale: 150/5 A
• Compatible device: EC96 moving iron ammeter
• Panel module size: 96 x 96 mm
• Scale card dimensions: 84 x 84 x 1 mm
• Weight: 0.01 kg

Features and benefits:

• Exchangeable design allows the ammeter measurement range to be changed without replacing the entire instrument
• Calibrated for 150/5 A current transformer secondary circuits, providing direct primary-current readout up to 150 A
• Slimline 1 mm profile and low 0.01 kg weight simplify handling and installation
• Part of the SEC/EMSC-A scale range covering 5/5 A through 5000/5 A, allowing flexible range selection across a wide family
• Dimensioned specifically for the EC96 96 x 96 mm moving iron ammeter used in switchgear and distribution panel applications

Applications:

• Replacement of worn or damaged dial scales in existing Circutor EC96 panel ammeters
• Reconfiguring an EC96 ammeter to a 150/5 A range when circuit or current transformer specifications change
• Industrial switchgear panels, motor control centres, and distribution boards operating with 150 A current transformers
• Panel builders assembling or servicing multi-range EC96 ammeter installations requiring a specific scale

Also known as: Circutor SEC96 150/5A, M102XE scale, SEC96 150/5A M102XE, ammeter replacement scale, EC96 moving iron ammeter dial.
