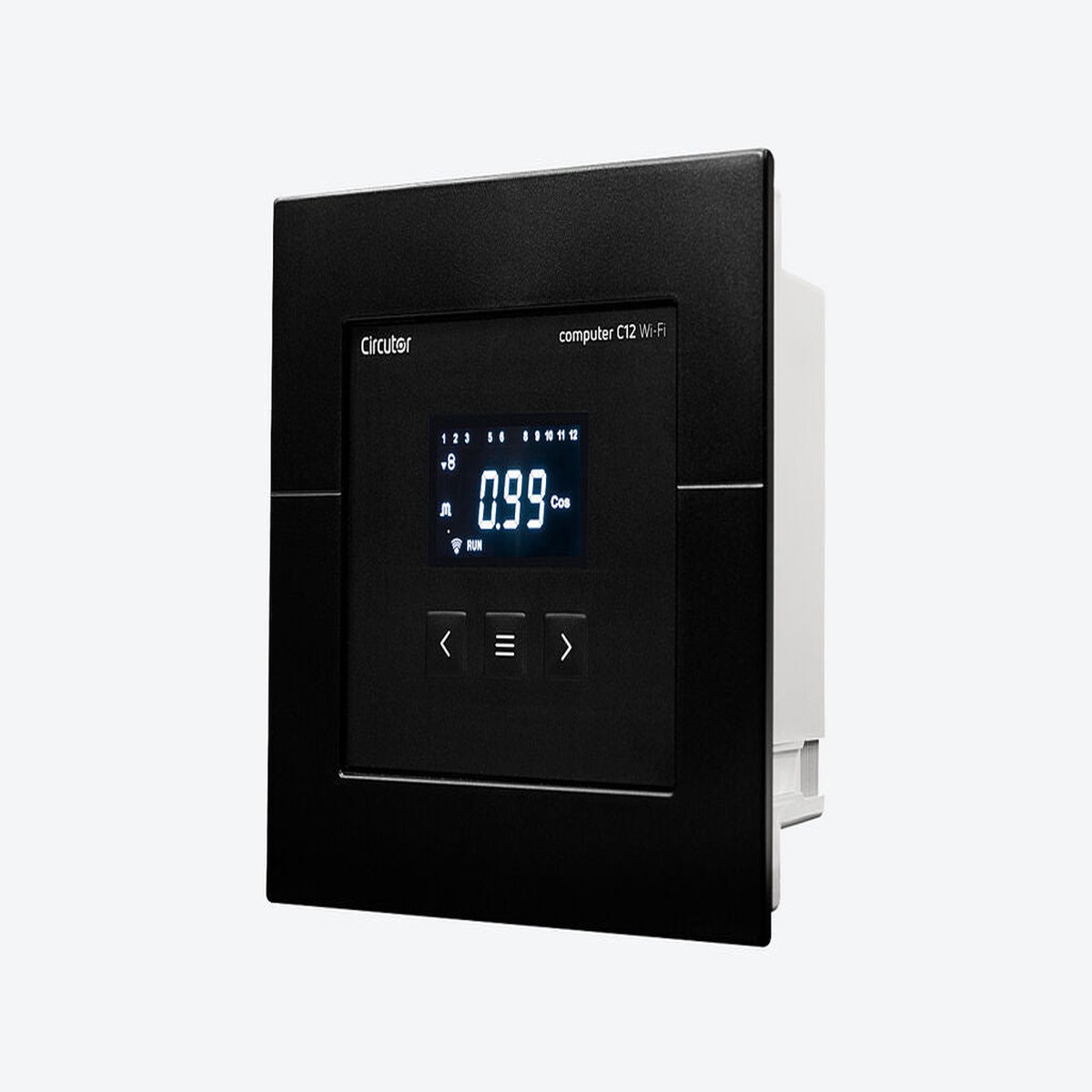

The Circutor Computer C12 Wi-Fi (code R14842) is a 12-step power factor controller with built-in Wi-Fi communications, designed for reactive power compensation in balanced low-voltage installations. It operates from a 400 V AC supply and controls up to 12 contactor-switched capacitor steps, while showing up to 27 electrical parameters on its high-contrast panel-mount display. A dedicated alarm relay and up to 12 user-configurable alarm thresholds support continuous monitoring and control of installation performance.

Technical specifications:

• Model: Computer C12 Wi-Fi
• Circutor code: R14842
• EAN: 8433059343583
• Number of regulation steps: 12
• Switching unit: Contactor
• Power supply: 400 V AC, 10%, 50 – 60 Hz
• Power consumption: 13 VA
• Installation category: CAT III 300 V
• Current transformer input: …/5 A secondary
• Phase current measuring range: 0.05 – 5 A (+20%)
• Communication: Wi-Fi (programmable via MyConfig app)
• Display: 3-digit, high-contrast, up to 27 electrical parameters
• User interface: 3 keys
• Digital relay outputs: 12 regulation + 1 alarm
• Relay rated current: 1 A~
• Relay rated voltage: 250 V~
• Maximum switching capacity: 250 W
• Relay electrical life: 1 10^5 cycles (at maximum load)
• Relay mechanical life: 1 10^7 cycles
• Measurement accuracy, phase angle: 2% 1 digit
• Measurement accuracy, current: 1%
• Measurement accuracy, voltage: 1%
• Dimensions (W H D): 144 144 54.85 mm
• Fastening: Panel mount
• Enclosure: Plastic, V0 self-extinguishing
• Weight: 0.43 kg
• Protection: IP 30 (body) / IP 40 (front panel), IK 08
• Working temperature: -20 to +60 C
• Storage temperature: -20 to +70 C
• Relative humidity: 5 – 95% (non-condensing)
• Electrical safety class: Class II, double insulated (IEC 61010-1)
• Standards: IEC 61010, IEC 61000-2-30, IEC 61000-6-4, IEC 61000-6-2

Features and benefits:

• Wi-Fi connectivity and programming via the MyConfig app allow commissioning and configuration without additional field wiring
• Up to 12 fully configurable alarm thresholds plus a dedicated alarm relay enable proactive alerts and fault detection
• High-contrast 3-digit display presents up to 27 electrical parameters, giving operators a comprehensive view of installation status at a glance
• Compatible with the Circutor Anti Reactive Surveillance System (VAR) for expanded reactive power supervision
• Plug and Play design combined with a simple 3-key interface reduces installation time and supports straightforward preventive maintenance

Applications:

• Automatic power factor correction in balanced low-voltage industrial and commercial distribution panels
• Switching of contactor-controlled capacitor banks to meet reactive power compensation targets
• Installations where Wi-Fi-based remote programming and parameter monitoring are required
• Sites needing continuous alarm surveillance across multiple power quality parameters

Also known as: Circutor Computer C12 Wi-Fi, Computer C12 Wi-Fi R14842, R14842 power factor regulator, 12-step reactive power controller, Circutor R14842.
