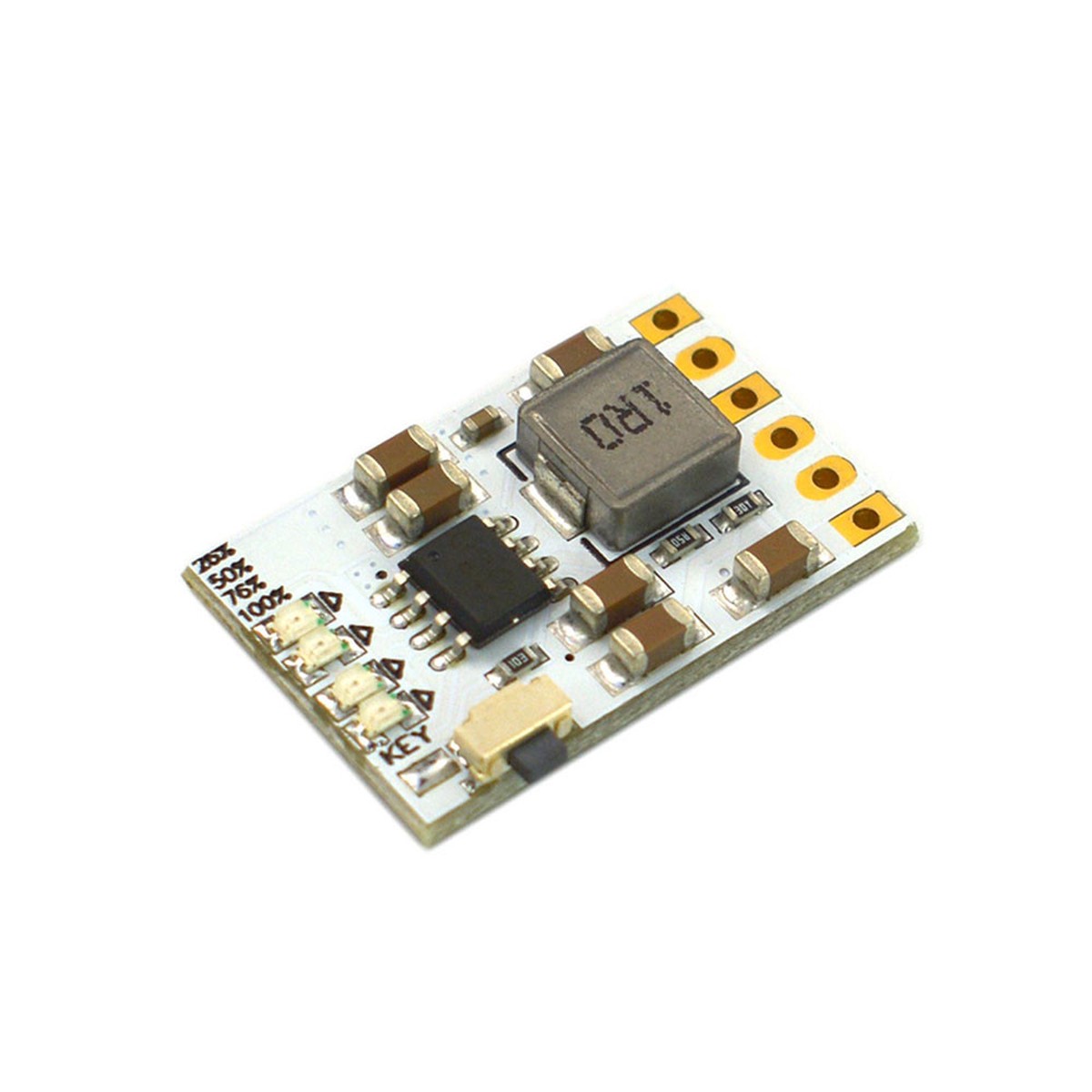

5V 2A DC DC Charge Discharge Integrated Module For Lithium Battery Power Management Applications

The DC-DC Charge Discharge Integrated Module is a compact power management board designed for lithium battery charging, discharging, and regulated 5V output applications. The module provides a normally open 5V output with a maximum load current of 2A, making it suitable for portable power systems, DIY power banks, and embedded electronic devices. Its output remains stable and is not affected by load access, helping deliver reliable power for connected equipment.
The module includes a built-in power management circuit that boosts a lithium battery voltage to 5V and supports simultaneous charging and discharging. A 4-level charge and discharge indicator allows quick battery status monitoring, while the button-controlled output provides convenient power control. Integrated battery protection makes the module suitable for use with lithium batteries without a separate protection board, improving safety and simplifying system design.
Key Features

Integrated Charge And Discharge Function: Supports lithium battery charging and 5V output discharge.
Regulated 5V Output: Provides stable output for portable and embedded electronics.
2A Load Current: Supports maximum load current up to 2A.
Simultaneous Charging and Discharging: Allows battery charging while powering connected devices.
Built-In Boost Circuit: Steps lithium battery voltage up to 5V.
Battery Protection: Suitable for batteries without a built-in protection board.
4-Level Power Indicator: Displays charge and discharge battery status.
Button-Controlled Output: Enables convenient manual output control.
Normally Open Output: Output is ready for connected load operation.
Compact Power Module: Easy to integrate into DIY and portable charging projects.

Applications

DIY mobile power banks
Portable charging devices
Mobile phone charging systems
Laptop emergency charging projects
Car charging retrofit systems
Driving recorder power supply
Lithium battery power management
Embedded 5V power supplies
Portable electronic devices
IoT power backup systems
Battery-powered DIY projects
Outdoor power supply applications

Dimensions

Pin Definition

Wiring Instruction
Charge and discharge

Charge only

LED Indication

Package List:

DC-DC Charge Discharge Integrated Module5V/2Ax1
