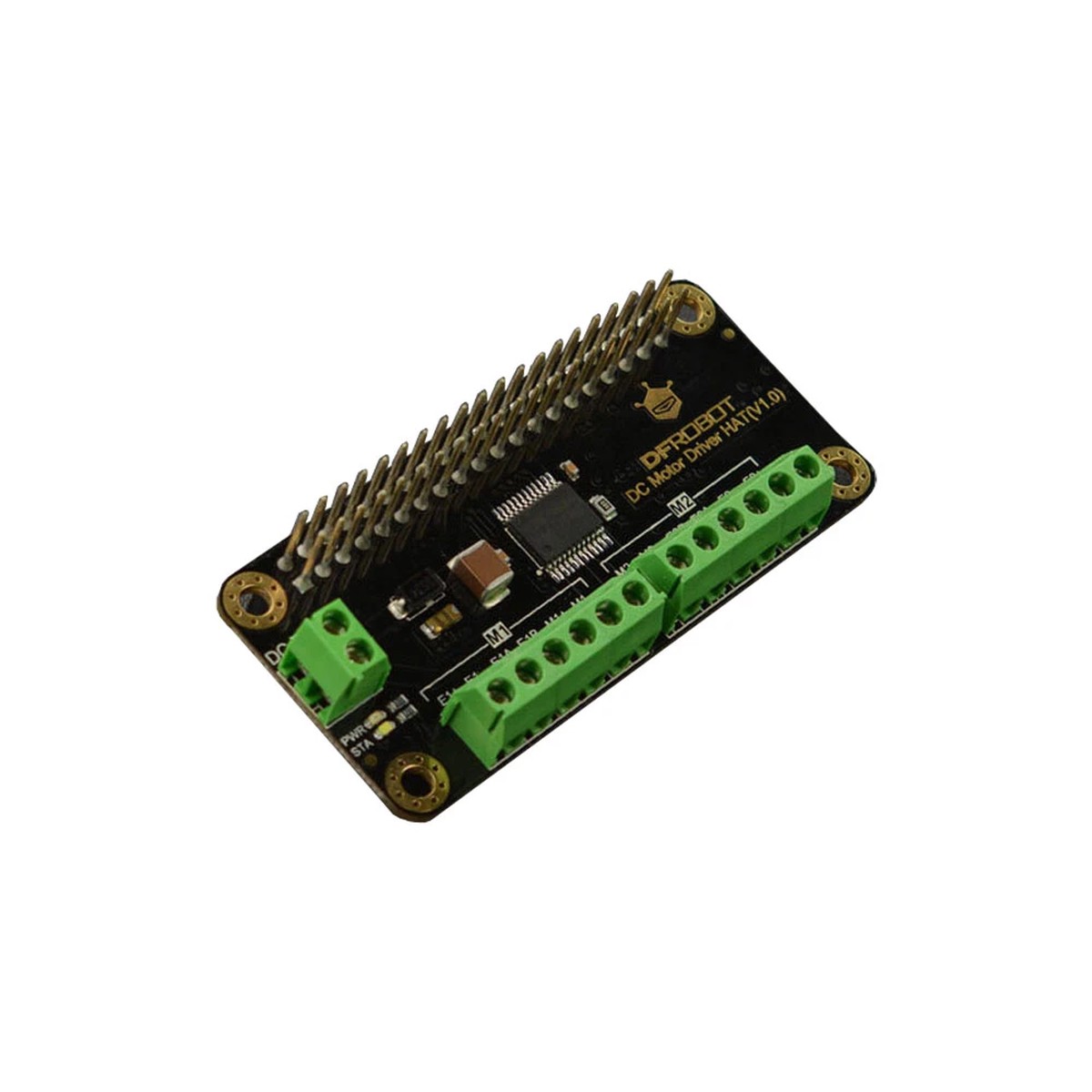

The Raspberry Pi DC Motor Driver Board with On-board Encoder Interface is an excellent solution for driving DC motors and motors with encoders. It is specifically designed to work seamlessly with the Raspberry Pi, establishing communication via the I2C protocol. The board is equipped with an STM32 microprocessor, which efficiently analyzes the commands received from the Raspberry Pi and performs necessary calculations to generate motor drive signals. The integration of the high-performance TB6612FNG motor drive chip ensures reliable and precise motor control.
Featuring a single channel, this motor driver board offers a continuous current of 1.2A and a peak current capability of up to 2A. The wide input voltage range of 7~12V allows for versatile usage scenarios. The board is suitable for various projects, including smart DIY cars, balance cars, DIY tanks, mechanical fish, and more.

Features

Motor Drive
I2C Communication
Raspberry Pi Shield
Operating Voltage: 7~12V

Logical Voltage: 5V
Motor Driver Chip: TB6612FNG
Communication Interface: I2C
Default I2C Address: 0 x10
Continuous Drive Current: 1.2A
Peak Current: 2A
Support 2-way DC Motor/DC Motor with Encoder
Dimension: 65*30mm/2.56*1.18

Resource

Product wiki

Shipping List

DC Motor Driver HAT(V1.0) x1
