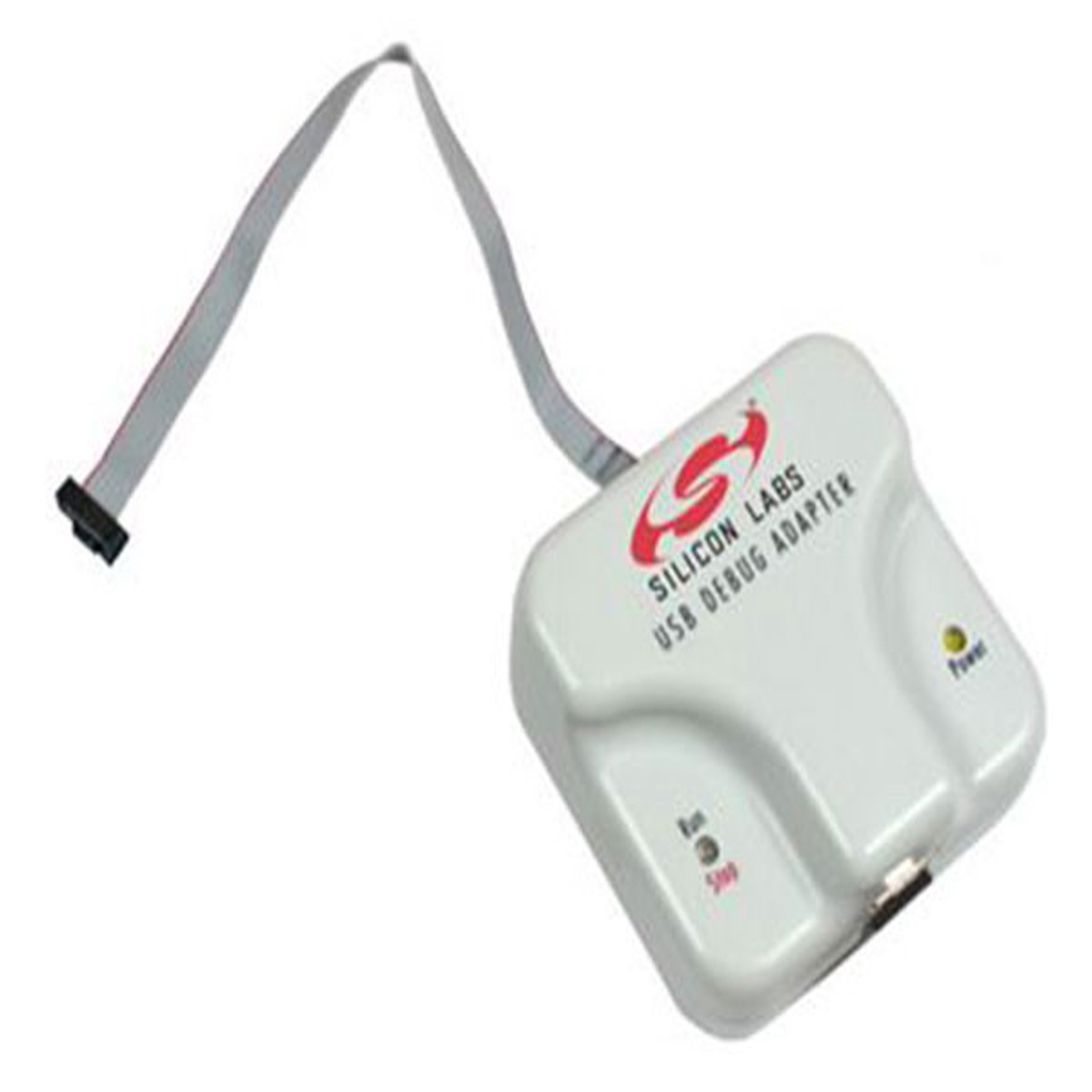

8-Bit USB Debug Adapter

The USB Debug Adapter links the computer’s USB port with the C8051Fxxx and EFM8 in-system debug/programming circuitry. A 10-pin debug ribbon cable connects the adapter to the target board, and the USB Debug Adapter supports both Silicon Labs JTAG and C2 debug interfaces. The adapter gets power from the PC through the included USB cable.

This adapter provides the interface between the PCs USB port and the C8051Fxxx and EFM8 s in-system debug/programming circuitry.

Key Features:

Supports both Silicon Labs JTAG and C2 debug interfaces
10-pin debug ribbon cable connects the adapter to the target board
USB powered
USB cable is included as part of the USB Debug Adapter

Relevant Resources:Debug Adapter Resources

FAQs:

Q: What microcontrollers is this USB Debug Adapter compatible with?
A: The USB Debug Adapter is designed for use with Silicon Labs’ C8051Fxxx and EFM8 microcontroller families.
Q: Which debug interfaces does this adapter support?
A: This adapter supports both Silicon Labs’ JTAG and C2 debug interfaces, offering flexibility in how you connect to your target board.
Q: What is the cable type and connection used by this adapter?
A: The adapter comes with a 10-pin debug ribbon cable that connects to your target board.
Q: How is the USB Debug Adapter powered?
A: The adapter is powered through the USB connection to your PC, so there’s no need for an external power source.
Q: Do I need any additional software to use this adapter?
A: While the adapter itself provides the hardware interface, you’ll need to use Silicon Labs’ Simplicity Studio development software for programming and debugging your C8051Fxxx or EFM8 microcontroller.
