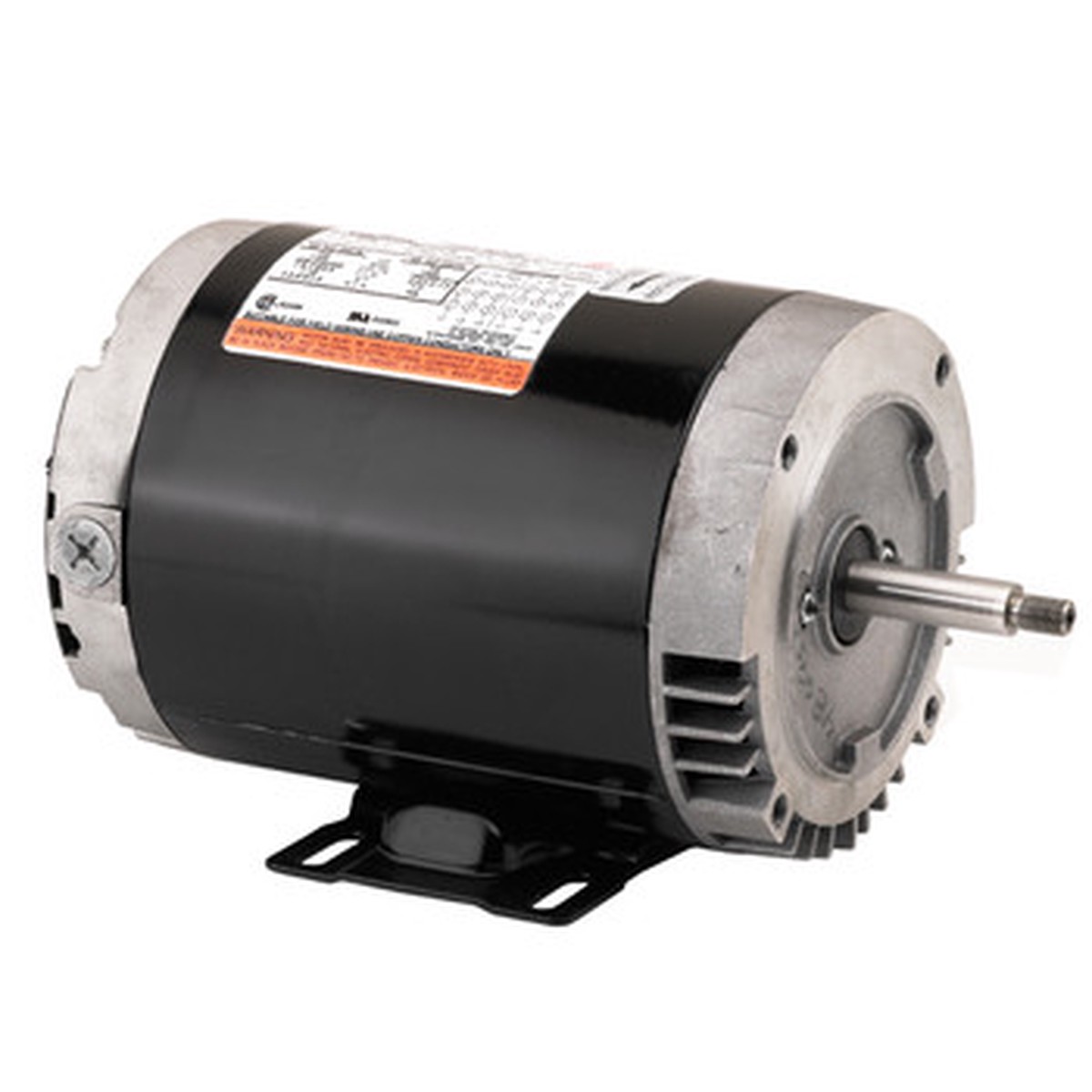

Overview Similar Products –> Product Description EE511 General Purpose 3PH ODP Energy Efficient C-Face 1 HP Applications: For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal. Features: – World Motor Features Except Where Noted – Rolled Steel Frame – Aluminum End Shields – 40 Degrees Celsius Ambient, NEMA Design B Performance on 60 Hz Sine wave power – Full HP @ 50 Hz – Double Shielded Bearings – F1 Assembly Position HP – 1 RPM – 3600 RPM Voltage – 208-230/460 Frame 56C Mounting – Footless SF – 1.4 C Dimension – 11.6 Full Load Amps – 3.5-3.4/1.7 60/50 HZ Rated with no derate on HP; 230/460 Volt on 60 Hz ratings operate on 190/380 volt 50 Hz, 460V 60Hz rating operate on 380V 50Hz; Full 50 & 60 Data on name plate. Product Videos Custom Field Product Reviews
