Overview

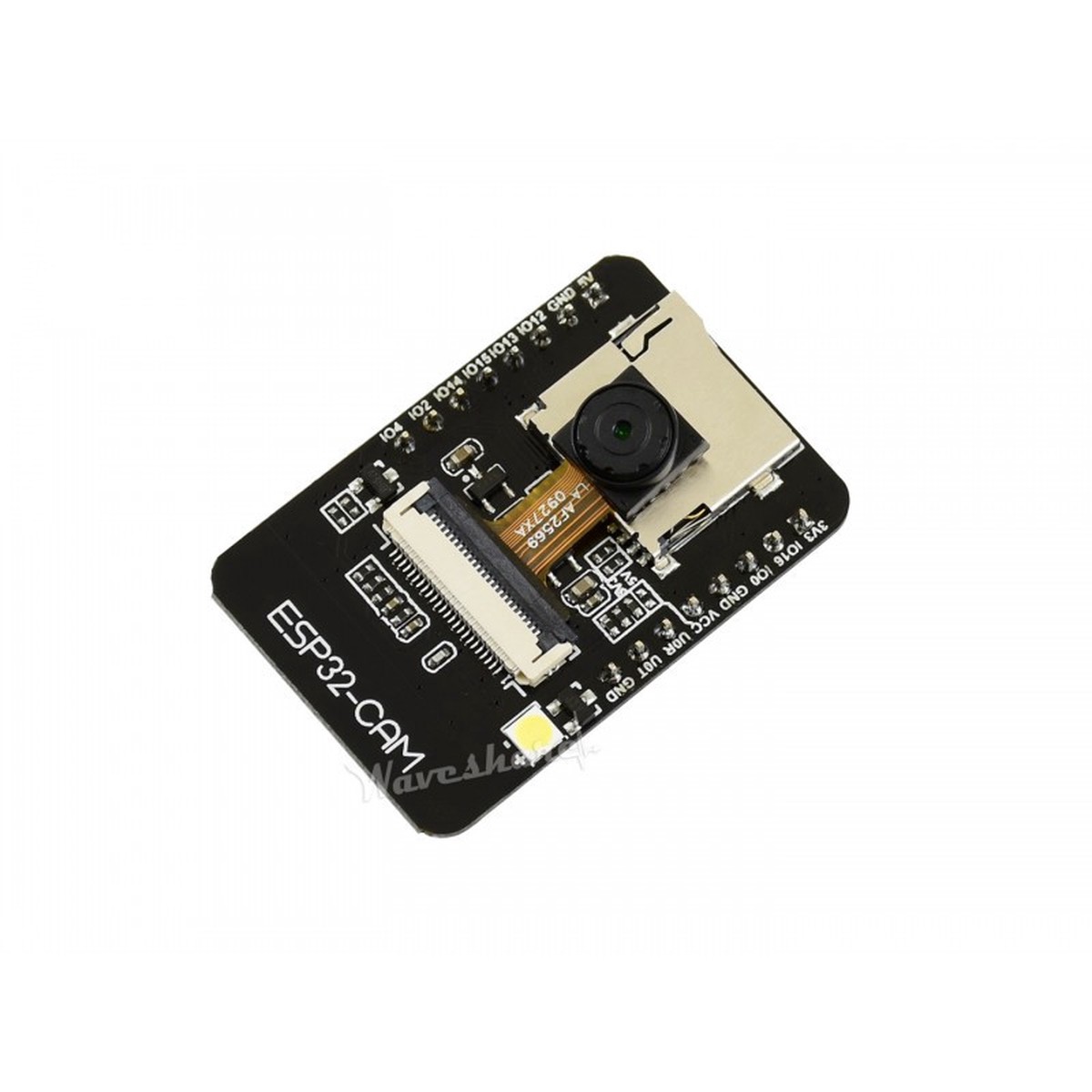

The ESP32-CAM is a small size, low power consumption camera module based on ESP32. It comes with an OV2640 camera and provides onboard TF card slot.
The ESP32-CAM can be widely used in intelligent IoT applications such as wireless video monitoring, WiFi image upload, QR identification, and so on.
Features

Onboard ESP32-S module, supports WiFi + Bluetooth
OV2640 camera with flash
Onboard TF card slot, supports up to 4G TF card for data storage
Supports WiFi video monitoring and WiFi image upload
Supports multi sleep modes, deep sleep current as low as 6mA
Control interface is accessible via pinheader, easy to be integrated and embedded into user products

Specifications

WIFI module: ESP-32S

Processor: ESP32-D0WD

Antenna: Onboard PCB antenna
WiFi protocol: IEEE 802.11 b/g/n/e/i
Bluetooth: Bluetooth 4.2 BR/EDR and BLE
WIFI mode: Station / SoftAP / SoftAP+Station
Security: WPA/WPA2/WPA2-Enterprise/WPS
Output image format: JPEG (OV2640 support only), BMP, GRAYSCALE
Supported TF card: up to 4G
Peripheral interface: UART/SPI/I2C/PWM
IO port: 9
UART baudrate rate: default 115200bps
Power supply: 5V
Transmitting power:

11b: 17 2dBm(@11Mbps)
11g: 14 2dBm(@54Mbps)
11n: 13 2dBm(@HT20,MCS7)

Receiving sensitivity:

CCK,1Mbps: -90 dBm
CCK,11Mbps: -85 dBm
6Mbps(1/2 BPSK): -88 dBm
54Mbps(3/4 64-QAM): -70 dBm
HT20,MCS7(65Mbps, 72.2Mbps): -67 dBm

Power consumption:

Flash off:180mA@5V
Flash on and brightness max:310mA@5V
Deep-Sleep: as low as6mA@5V
Modern-Sleep: as low as20mA@5V
Light-Sleep: as low as6.7mA@5V

Operating temperature: -20 ~ 85
Storage environment: -40 ~ 90 , <90%RH Dimensions: 40.5mm x 27mm x 4.5mm Applications The ESP32-CAM suit for IOT applications such as: Smart home devices image upload Wireless monitoring Intelligent agriculture QR wireless identification facial recognition What's on Board Pinouts Develpoment Resources Wiki :www.waveshare.com/wiki/ESP32-CAM Package Content ESP32-CAM x1 OV2640 camera x1
