Wi-Fi + Bluetooth DMX512 Lighting Controller with ESP32-S3 Core: Wireless smart control for stage lighting, architectural LEDs, and DMX automation.

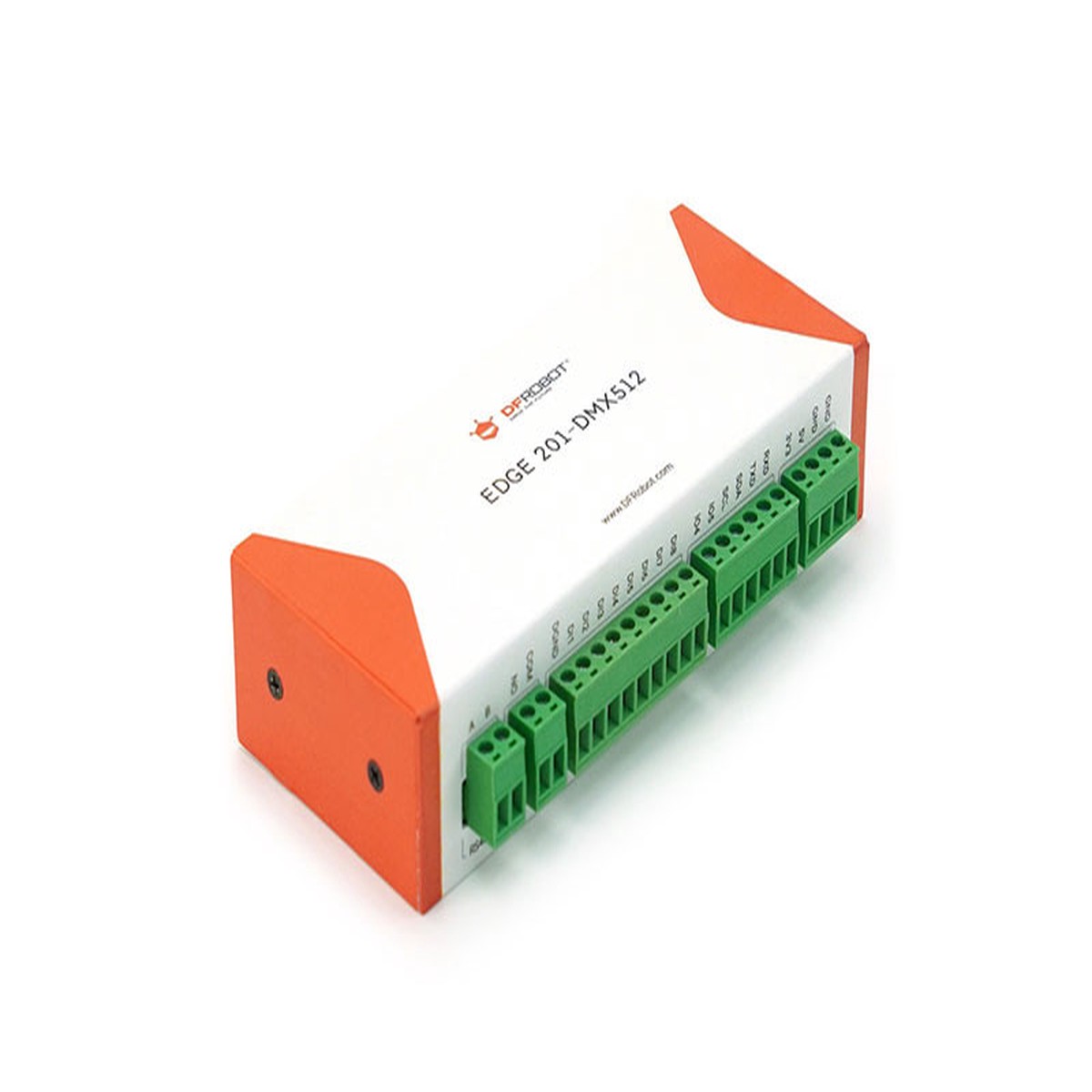

The EDGE102-DMX512 controller is a powerful lighting control system that uses the DMX512 protocol to govern stage, theater, and venue lighting. This controller allows seamless connections to a wide range of sensors and devices via a variety of interfaces, including RS485, I2C, and UART. It is also compatible with Arduino, ESP32, and ESPHome for easy integration into unique projects. It provides programmable, sensor-based automation for lighting and other stage equipment, which goes beyond typical console-based control. Its dual-core architecture, which combines the ESP32-S3 and a specialized DMX512 processor, offers great reliability, versatility, and ease of use, making it an adaptable solution for modern lighting needs. It has integrated WiFi and Bluetooth capabilities, allowing for remote control and programming.
Intelligent Automation with Sensor Integration
The EDGE102-DMX512 controller stands out by allowing automated control of lighting and stage equipment via sensor integration. While traditional DMX512 systems require human operation via a control console, this controller enables for the installation of infrared sensors, sound level meters, and laser sensors, which automatically activate lighting effects based on environmental inputs. With 8 optically isolated industrial switch inputs that ensure compatibility with various PNP sensor types, it increases efficiency and lowers the need for constant human supervision in areas such as stages and commercial spaces.

Dual-Core Architecture for Stability and Wireless Control
The lighting programming controller’s dual-core design, which includes the ESP32-S3 and a dedicated DMX512 processing chip, ensures reliable performance. The ESP32-S3 core supports WiFi and Bluetooth, allowing for remote control and user programming over wireless networks. This architecture simplifies programming, making it easier to set up complicated lighting systems while maintaining smooth connectivity with connected devices. The ability to program wirelessly using interfaces such as Arduino increases operational flexibility and user convenience.

Versatile Peripheral Support and Flexible Integration
The EDGE102-DMX512 controller supports a wide range of peripheral interfaces, including RS485, I2C, and UART ports, as well as GPIO pins, allowing it to link to a variety of sensors, actuators, and lighting devices. This adaptability enables the development of bespoke interactive lighting solutions for a wide range of situations, including stage events, parties, and large-scale lighting installations in public spaces. The RS485 port’s support for both master and slave modes enables more flexible communication with other devices, while the I2C and UART interfaces improve interoperability with open-source sensors and hardware.

Features:

Standard DMX512 Protocol and Interfaces: Works with a broad variety of DMX512 drivers and lighting fixtures, allowing for simple integration into existing systems.
8 Optically Isolated Switch Inputs: Connects directly to conventional PNP switch sensors, increasing safety and dependability in industrial settings.
Multiple Communication Ports: Includes 1 Relay Output, 1 RS485 Port (supporting master and slave modes), 1 I2C Interface, 1 UART Port, and 2 GPIO Ports for flexible connections with a variety of devices and sensors.
Built-in Clock Chip: Enables the creation of time-based functions and effects for special events and holiday lighting displays.
ESP32-S3 Main Chip: Supports WiFi and Bluetooth, allowing for quick and easy programming using platforms like Arduino.
Dedicated DMX512 Protocol Chip: Ensures dependable program operation and improves overall system stability.
Metal enclosure: Built to last, with options for ear mount or rail mount installation.

Applications:

Stage and Theater Lighting: Ideal for dynamic lighting configurations in performances, with seamless integration into stage equipment.
Public Venue Lighting: Ideal for city squares, parks, and shopping malls, with automated lighting effects to enhance the environment.
Commercial lighting: Is effective for controlling lighting in malls and restaurants, with customisable solutions available for a variety of commercial situations.
Home Lighting Control: Suitable for managing indoor and outdoor lighting systems, with automated and sensor-based control.

Resources:

Product wiki
Getting Started: Downloading and Installing the Programming Platform
Controlling the Light Strip
Managing Moving Head Beam Lights
Industrial Digital Input Interfaces (DI1-DI8)
Wi-Fi and Bluetooth Capabilities of ESP32-S3

Package Content:

DMX512 programmable controller *1
WIFI/Bluetooth antenna *1
35mm DIN rail clips *2
Mounting brackets *2
Mounting screws pack *1
