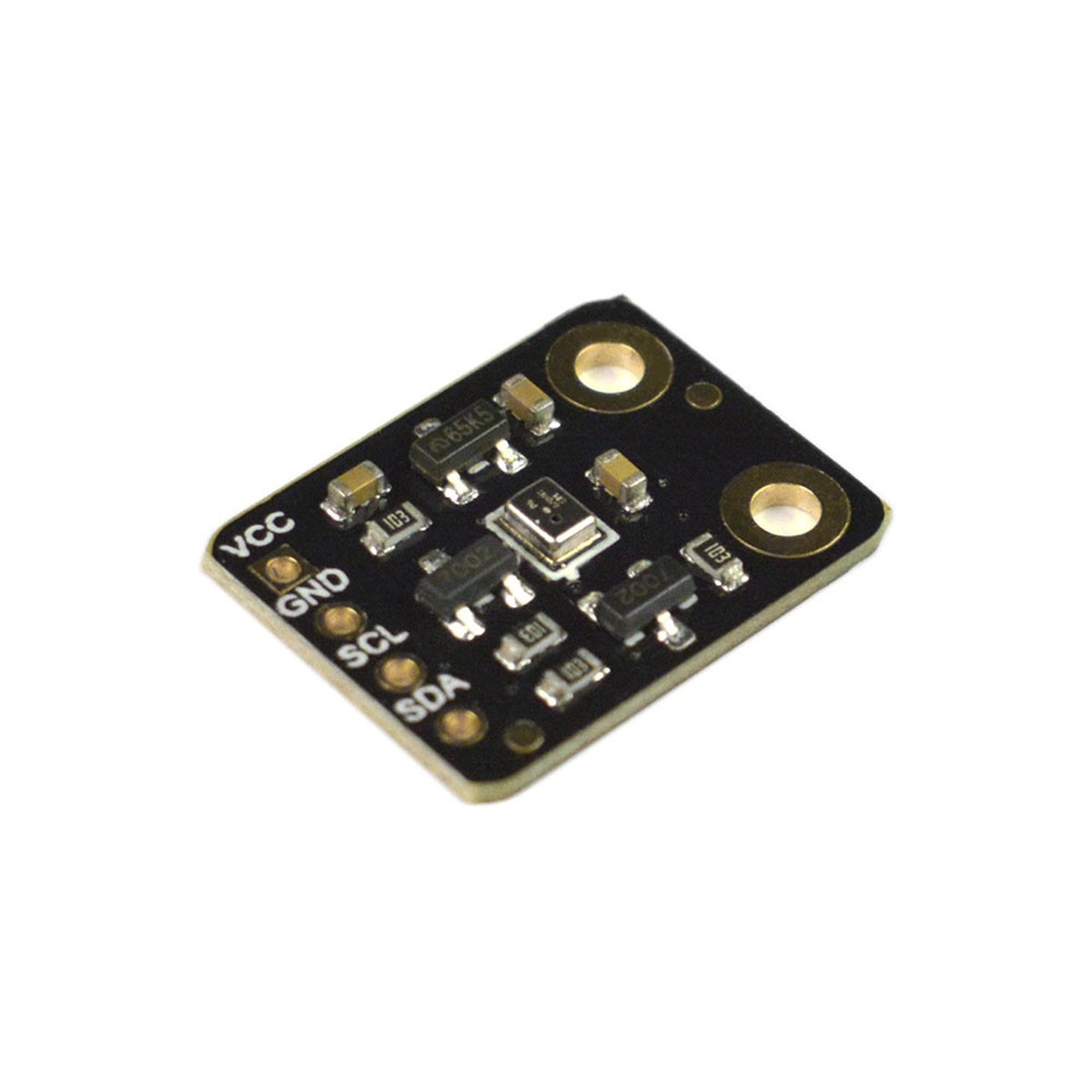

High Precision Barometric Pressure And Temperature Sensor Breakout With Ultra Low Power Consumption
The Fermion ICP-10111 Pressure Sensor Breakout is a high-performance barometric pressure and temperature sensing module designed for applications requiring exceptional accuracy, low power consumption, and long-term stability. Based on TDK’s advanced ICP-10111 MEMS capacitive pressure sensor technology, the module delivers industry-leading pressure measurement performance while maintaining an ultra-compact footprint. Its high precision enables accurate environmental monitoring, altitude measurement, and navigation applications in portable and battery-powered devices.
With a pressure measurement accuracy of 1 Pa, the ICP-10111 can detect altitude changes as small as 8.5 cm, making it ideal for indoor navigation, drone altitude control, sports activity tracking, and environmental monitoring systems. The sensor features extremely low pressure noise of only 0.4 Pa, providing highly stable and reliable readings. An integrated temperature sensor continuously compensates pressure measurements, while the low temperature offset coefficient of 0.5 Pa/C ensures consistent long-term performance across varying environmental conditions.
Key Features

ICP-10111 Pressure Sensor: Advanced MEMS capacitive sensing technology.
High Pressure Accuracy: 1 Pa pressure measurement accuracy.
Altitude Resolution: Detects altitude changes as small as 8.5 cm.
Ultra Low Pressure Noise: Typical pressure noise of 0.4 Pa.
Integrated Temperature Sensor: Built-in temperature compensation.
Excellent Temperature Stability: Temperature coefficient offset of 0.5 Pa/C.
Ultra Low Power Consumption: Suitable for battery-powered devices.
High Long-Term Stability: Reliable measurements over extended operation.
Compact Breakout Design: Easy integration into embedded systems.
High Precision Environmental Monitoring: Suitable for professional sensing applications.
MEMS Capacitive Technology: Enhanced sensitivity and measurement consistency.
Compatible With Embedded Platforms: Supports Arduino, ESP32, Raspberry Pi, and other controllers.

Applications

Barometric pressure monitoring
Altitude measurement systems
Drone altitude hold control
Indoor navigation systems
Outdoor navigation devices
Sports activity tracking
Wearable electronics
Environmental monitoring
Weather stations
IoT sensing applications
Industrial measurement systems
Portable electronic devices

Connection Diagram

Package Contents

Fermion: ICP-10111 Pressure Sensor x1

2.54-4P Black Single-row Pin Connector x1
