Features

Original FT232RL onboard
Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10…
3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
3 LEDs: TXD LED, RXD LED, POWER LED
Functional Pins

TXD, RXD, RTS#, CTS# : connected to the onboard soldered pinheaders
The other Pins : accessable on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards)

How to Use
In the case of working with a MCU:

VCCIO 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
GND GND
TXD MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) RXD MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
RTS MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) CTS MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

Dimension

Package Content

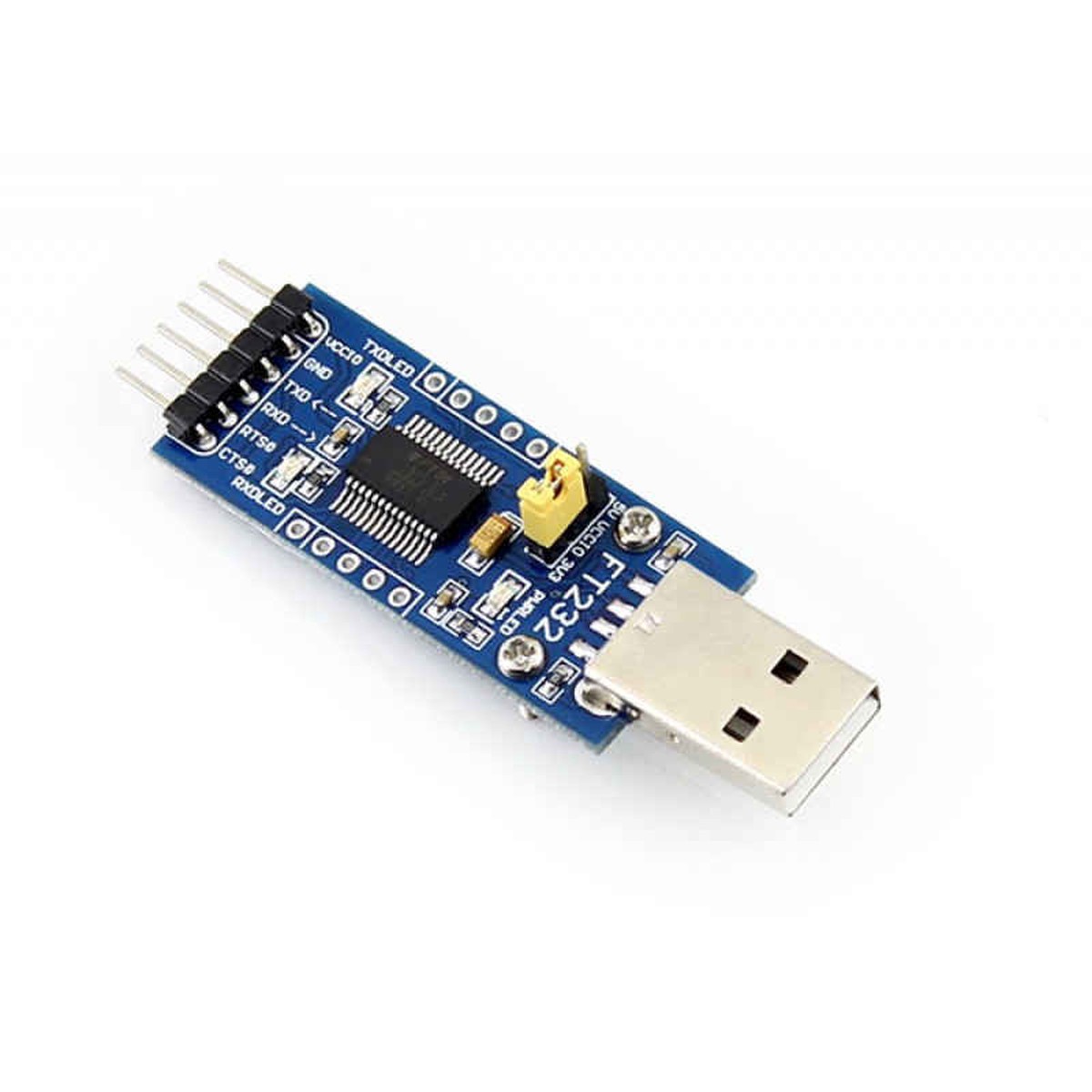

FT232 USB UART Board (Type A) x1
5-pin male pinheader & 5-pin female pinheader x2
6-pin custom connector jumper wire x1
