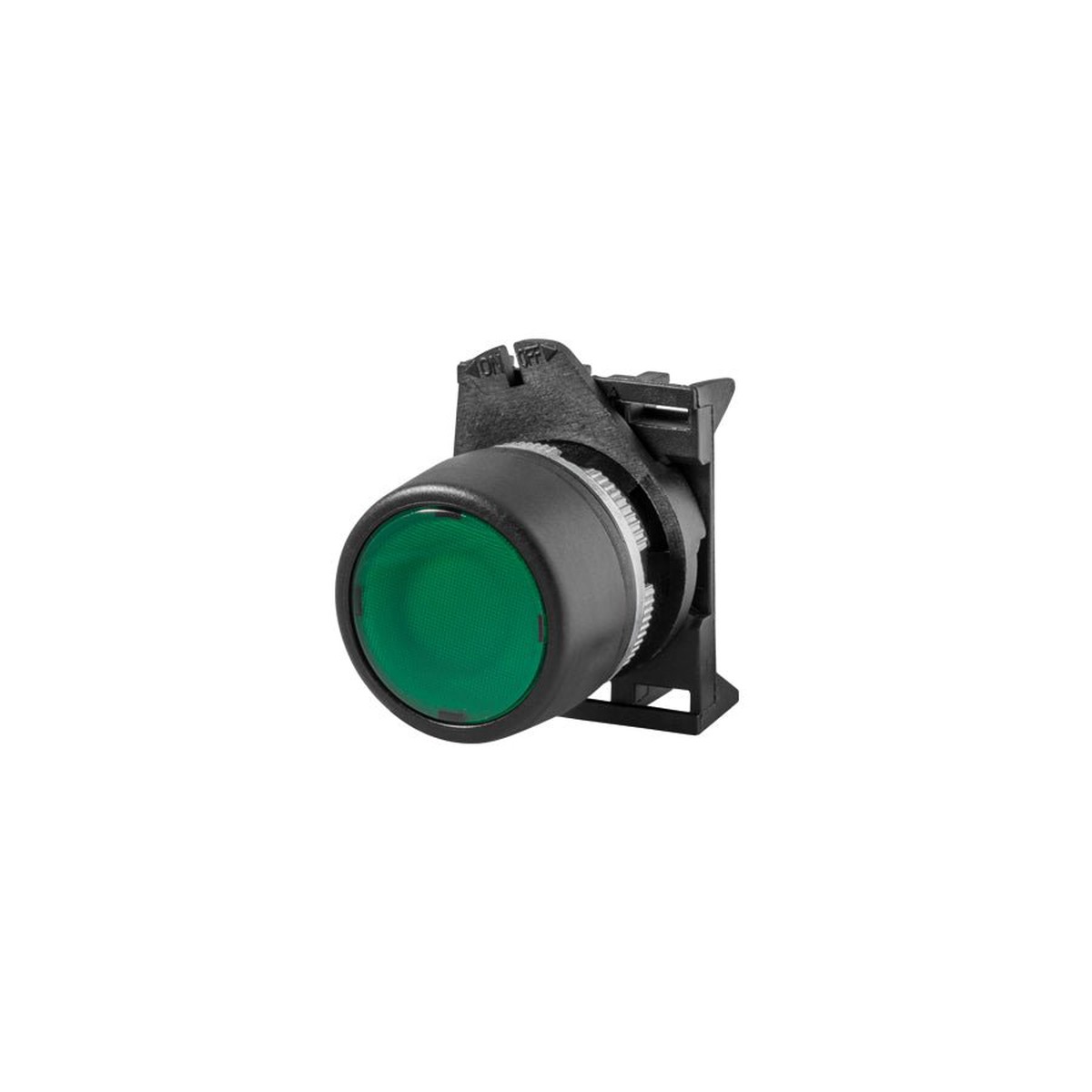

The Giovenzana PPRL2 is a green flush-type illuminable panel push button for 22mm panel cutout, from the PPR series. The illuminable version accepts a pilot lamp behind the button cap to indicate circuit status. It provides momentary spring-return contact switching for start/stop and control functions in industrial control panels.

Technical specifications:

• Part number: PPRL2
• Manufacturer: Giovenzana
• Series: PPR
• Type: Flush push button, illuminable
• Colour: Green
• Panel cutout: 22mm
• Action: Momentary (spring return)
• Standards: IEC 60947-5-1

Features and benefits:

• Momentary spring-return action for start/stop and control functions
• 22mm panel cutout compatible with standard control panel accessories
• Colour-coded actuator caps aid operator identification
• Compatible with Giovenzana contact blocks (PL004001 NC, PL004002 NO)

Applications:

• Start/stop control on motor control panels and machine tools
• Operator interface push buttons in control cabinets
• Industrial process control panel push buttons

Compliant with IEC 60947-5-1.

Also known as: Giovenzana PPRL2, PPRg flush push button 22mm, green panel push button 22mm illuminable, Giovenzana green control button flush.
