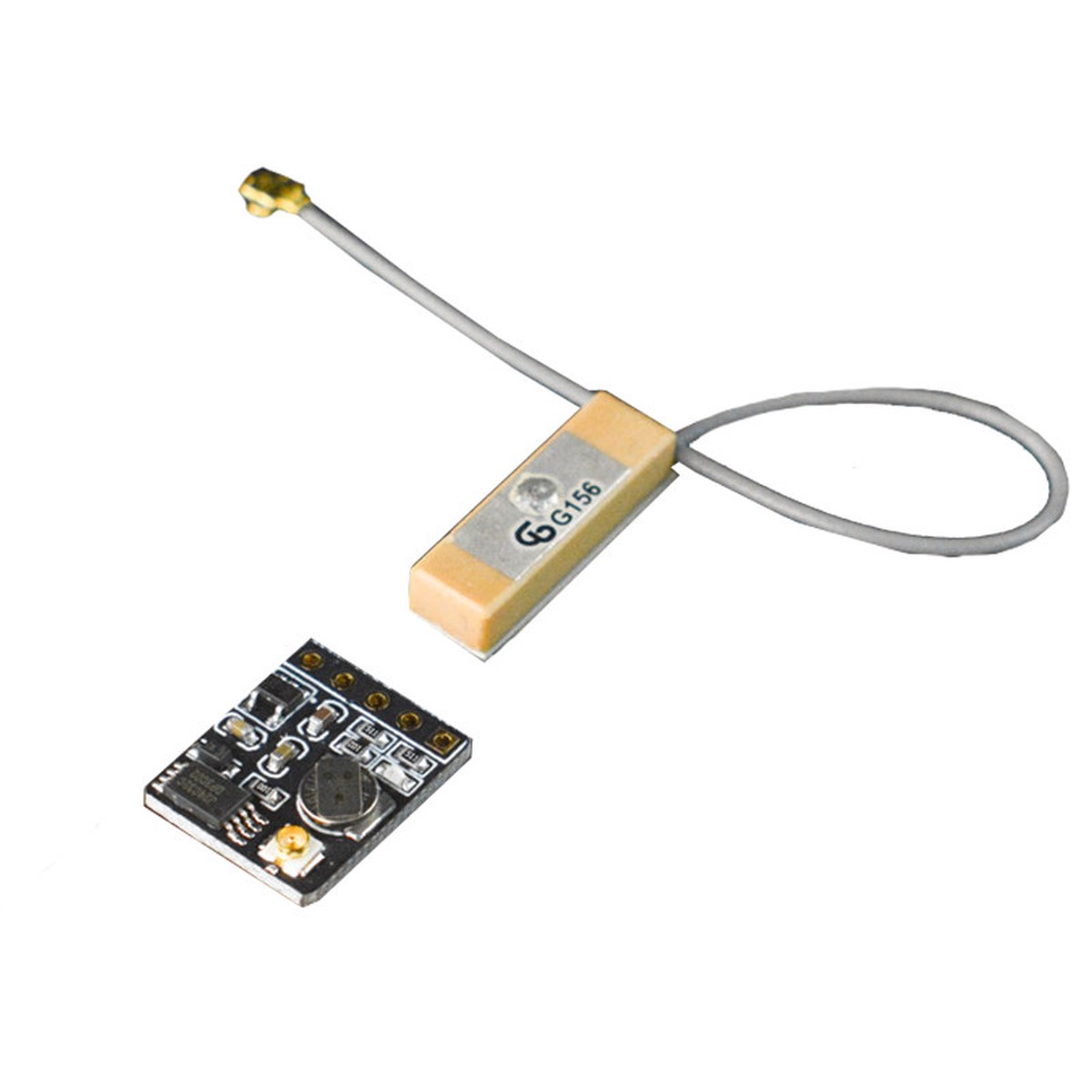

This compact positioning and navigation module is built around the AT6558, a versatile six-in-one multi-mode satellite navigation and positioning chip. It provides real-time location information and boasts compatibility with a variety of satellite navigation systems, offering 32 tracking channels. The module can simultaneously receive signals from six satellite navigation systems, including China BDS (Beidou Navigation Satellite System), American GPS, Russian GLONASS, European GALILEO, Japanese QZSS, and SBAS satellite augmentation systems (WAAS, EGNOS, GAGAN MSAS), enabling integrated positioning, navigation, and precise timing.

Key Features

UBX-G7020-KT solution
1Hz(default) ~ 10Hz output
9600bps(default) [support:4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600] TTL serial interface
5v @ 30mA (support 3.3~5v)
56-Channel receiver
Extremely high sensitivity -161dBm
Accuracy 2.5m (Autonomous) / <2m[SBAS] Operating temperature: -40C to 85C Hot Start: 1s Warm Start: 28s Cold Start: 29s Module Size 28*28*8.6mm (1.10*1.10*0.34") Enclosure Size 37x48x16mm(1.46x1.89x0.63") LED indicator Package List GPS + BDS BeiDou Dual Module x1 Connector x1 Pin x1
