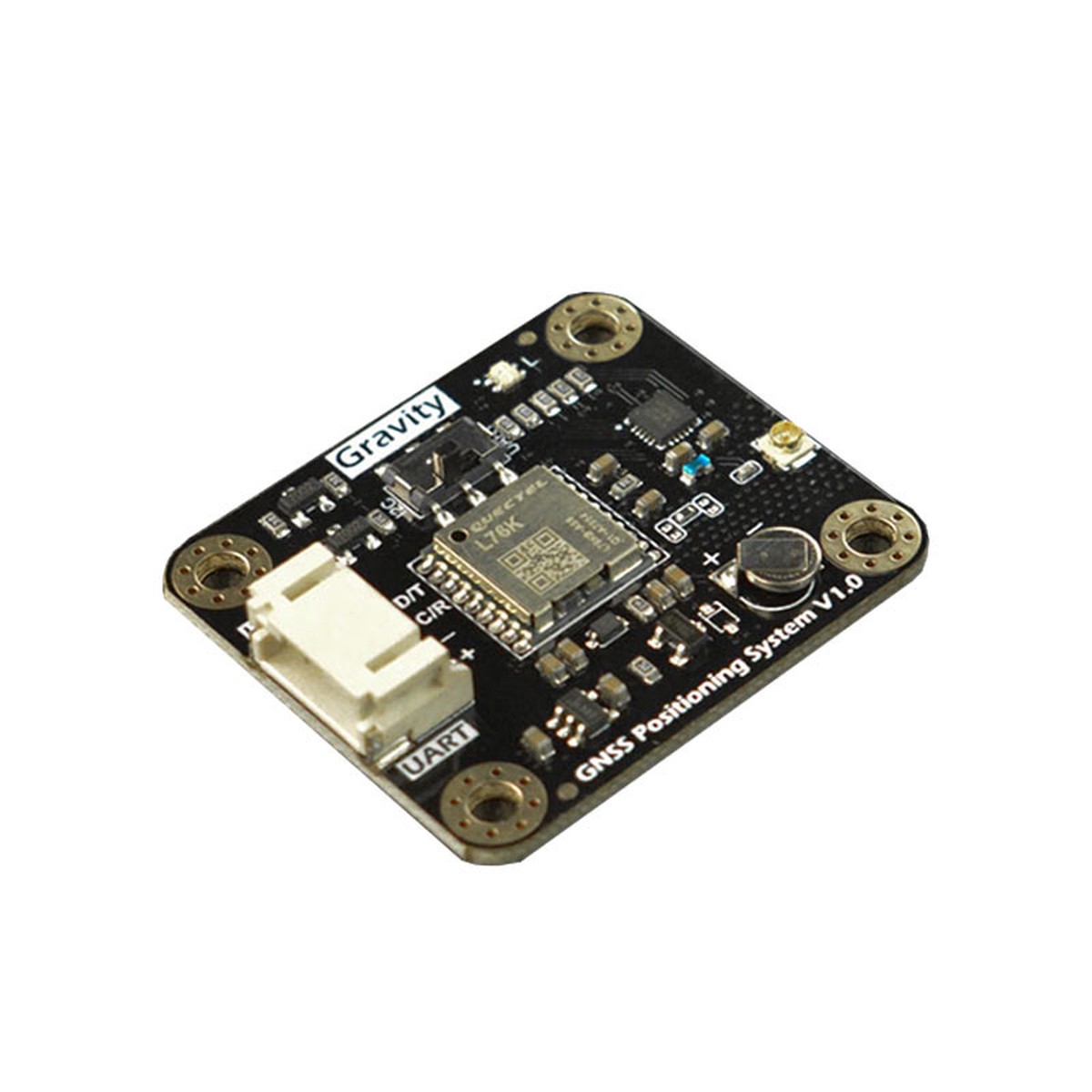

The Gravity: GNSS positioning module by DFRobot is designed to support various Global Navigation Satellite Systems (GNSS) including BeiDou, GPS, GLONASS, and others. It offers essential timing and positioning functions for the smooth operation of devices. This module delivers precise position data such as longitude, latitude, altitude, and time in a fast and efficient manner.
Compared to traditional single GPS positioning, the Gravity module utilizes a combination of multiple satellite systems, allowing for increased accuracy and faster positioning due to a larger number of visible and available satellites. This ensures reliable and precise performance even in challenging urban environments.
The GNSS positioning module features I2C and UART data outputs, making it compatible with popular main-controllers such as Arduino, ESP32, and Raspberry Pi. It can be effectively utilized in various outdoor positioning scenarios, including vehicle navigation, handheld positioning trackers, item tracking, and weather stations.

I2C Connection Diagram

UART Connection Diagram
Key Features

Supports both single and multiple systems positioning
Higher precision and faster speed than traditional single GPS positioning

Application

Vehicle navigation
Handheld positioning tracker
Item tracking and weather station

Specification

Operating Voltage: 3.3 to 5.5V DC
Output Signal: I2C/UART
Positioning Accuracy: 2.0m CEP
Time for First Positioning: 30s for cold start; 2s for hot start
Power Consumption: 40mA
Antenna Interface: IPEX1
Antenna Frequency: 1561-1575.42MHz3MHz
Dimension: 27mmx37mm/1.06×1.46″

Package Contents

Gravity: GNSS Positioning Module 1
GPS/BeiDou Active Ceramic Antenna (IPEX1 Connector) 1
Gravity 4P Sensor Cable 1
