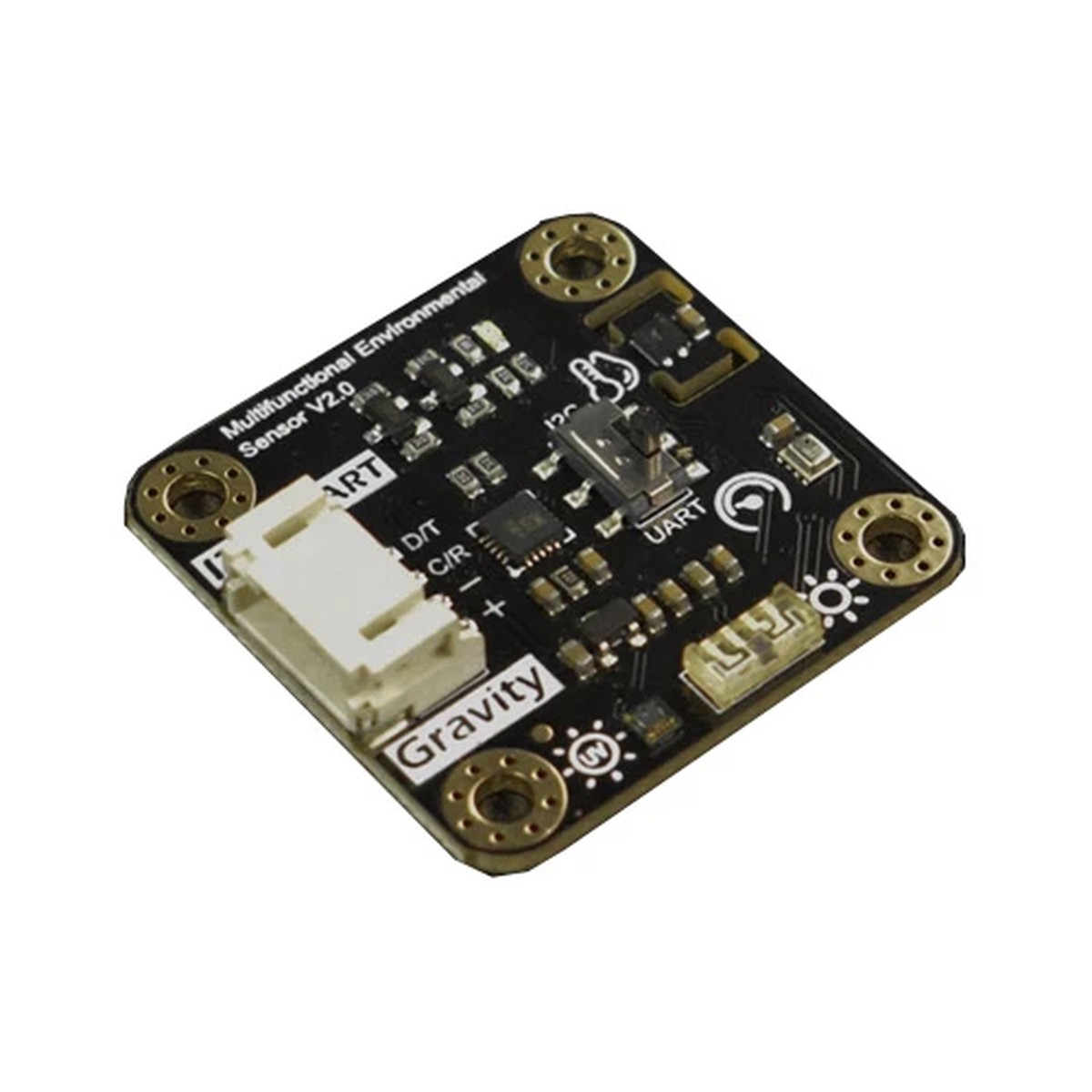

This multifunctional environmental sensor integrates the SHTC3 temperature & humidity sensor, BMP280 barometric pressure sensor, VEML7700 ambient light sensor, and LTR390 UV sensor (V1.0: ML8511, V2.0: LTR390-UV-01) into one, offering five environmental parameters. Professional sensor chips are chosen for precise measurements, with careful consideration given to the circuit design for optimal heat conduction and layout, ensuring data accuracy. An onboard MCU processing chip converts raw sensor data into standard unit values, including and F for temperature, % for humidity, Kpa for barometric pressure, lx for light illuminance, and mw/cm for UV light.
This environmental sensor supports UART and I2C communication methods, available in two versions: Gravity and Fermion (breakout). Complete Arduino and Python libraries are provided for easy integration. Exquisitely designed and compact, it simplifies the wiring and coding in your projects, making it suitable for indoor and outdoor environmental monitoring systems. The V2.0 update replaces the UV sensor model from ML8511 to LTR390-UV-01, enhancing the sensor’s capabilities.

Connection for UART and I2C

Key Features:

Temperature & Humidity Sensor: SHTC3
Barometric Pressure Sensor: BMP280
Ambient Light Sensor: VEML7700
UV Sensor: LTR390-UV-01 (V2.0)
Communication Methods: UART, I2C
Versions: Gravity, Fermion (breakout)
MCU Processing Chip Onboard
Standard Unit Outputs: Deg C, Deg F, %, Kpa, lx, mw/cm2

Barometric Pressure Sensor

Sensor Chip Model: BMP280
Barometric Pressure Measurement Range: 3000~1100 hPa
Relative Accuracy Of barometric Pressure: 0.12 hPa
Absolute barometric Pressure Accuracy: 1 hPa

Temperature & Humidity Sensor

Sensor Chip Model: SHT-C3
Relative Humidity Accuracy: 2%RH
Relative Humidity Resolution: 0.01%RH
Relative Humidity Measurement Range: 0~100
Temperature Accuracy: 0.2
Temperature Resolution: 0.01
Temperature Measurement Range: -40~125

UV Sensor

Sensor Chip Model: LTR390-UV-01
Ultraviolet Sensitive Wavelength: 280-430nm
Range of Measured Data: 13 Bit16 Bit 17 Bit18 Bit19 Bit20 Bit
Measurement Rate: 25ms50ms100ms200ms500ms1000ms
Adjustable Gain Multiple: 136918

Ambient Light Sensor

Sensor Chip Model: VEML7700
Ambient Light Accuracy: 0.0036 lx/ct
Ambient Light Range: 0~120 klx

Package List

Gravity: High Accuracy Temperature, Humidity, Pressure, Ambient Light and UV Sensor – I2C/UART x1
Gravity 4P Connector x1

FAQs:
Q: What types of sensors are integrated into the Gravity Multifunctional Environmental Sensor?
A: The Gravity Multifunctional Environmental Sensor includes an SHTC3 temperature and humidity sensor, a BMP280 barometric pressure sensor, a VEML7700 ambient light sensor, and either an ML8511 (V1.0) or LTR390-UV-01 (V2.0) UV sensor.
Q: What communication interfaces does the Gravity Multifunctional Environmental Sensor support?
A: The sensor supports both UART (serial) and I2C communication interfaces.
Q: Does the Gravity Multifunctional Environmental Sensor require any additional components or software to function?
A: The sensor has an onboard MCU that converts raw sensor data into standard units. It also comes with Arduino and Python libraries for easy integration into projects.
Q: What is the difference between V1.0 and V2.0 of the Gravity Multifunctional Environmental Sensor?
A: The primary difference is the UV sensor used. V1.0 uses the ML8511, while V2.0 uses the LTR390-UV-01.
Q: What applications can the Gravity Multifunctional Environmental Sensor be used for?
A: The sensor is suitable for various environmental monitoring applications, such as indoor and outdoor weather stations, smart home systems, agricultural monitoring, and industrial automation.
