Unleash Precision in Your Projects: Gravity: Infrared Light Photo Interrupter Module
Enhance your electronic projects with the Gravity: Infrared Light Photo Interrupter Module, 940nm. Engineered with the high-performance ITR9608 photoelectric switch, this module ensures reliable and precise photoelectric detection. Its compact design and ease of operation make it a perfect fit for various applications, from robotics to automation equipment and counting systems.

The photo interrupter works by blocking light with an object, utilizing a light emitter and receiver arranged face-to-face within the same enclosure. When an object interrupts the light path, the receiver detects the change, triggering the photoelectric sensor for accurate signal processing.

Key Features:

High Sensitivity and Precision: Leveraging the ITR9608 slotted photoelectric switch, it ensures accurate detection.
Wide Photonic Gap: The 5.0mm wide photonic gap design is suitable for detecting objects of various sizes.
Simple and Easy to Use: With a standard Gravity interface, it offers seamless operation and robust compatibility.
Strong Compatibility: Compatible with Arduino, micro, and UNIHIKER platforms, making it versatile for various projects.

Wiring Diagram of Gravity: Photo Interrupter Module

Wiring Diagram of Gravity: Photo Interrupter Module and Arduino UNO

Applications:

Counter: Facilitates object counting on production lines.
Speed Detection and Measurement: Provides pulse signals for calculating rotation speed and frequency.
Smart Card Switch: Detects card insertion and removal for power control.
Printer and Copier Paper Detection: Controls printing and transmission by detecting paper position.

Equip your projects with the Gravity: Infrared Light Photo Interrupter Module and achieve unparalleled accuracy and efficiency.

Shipping List

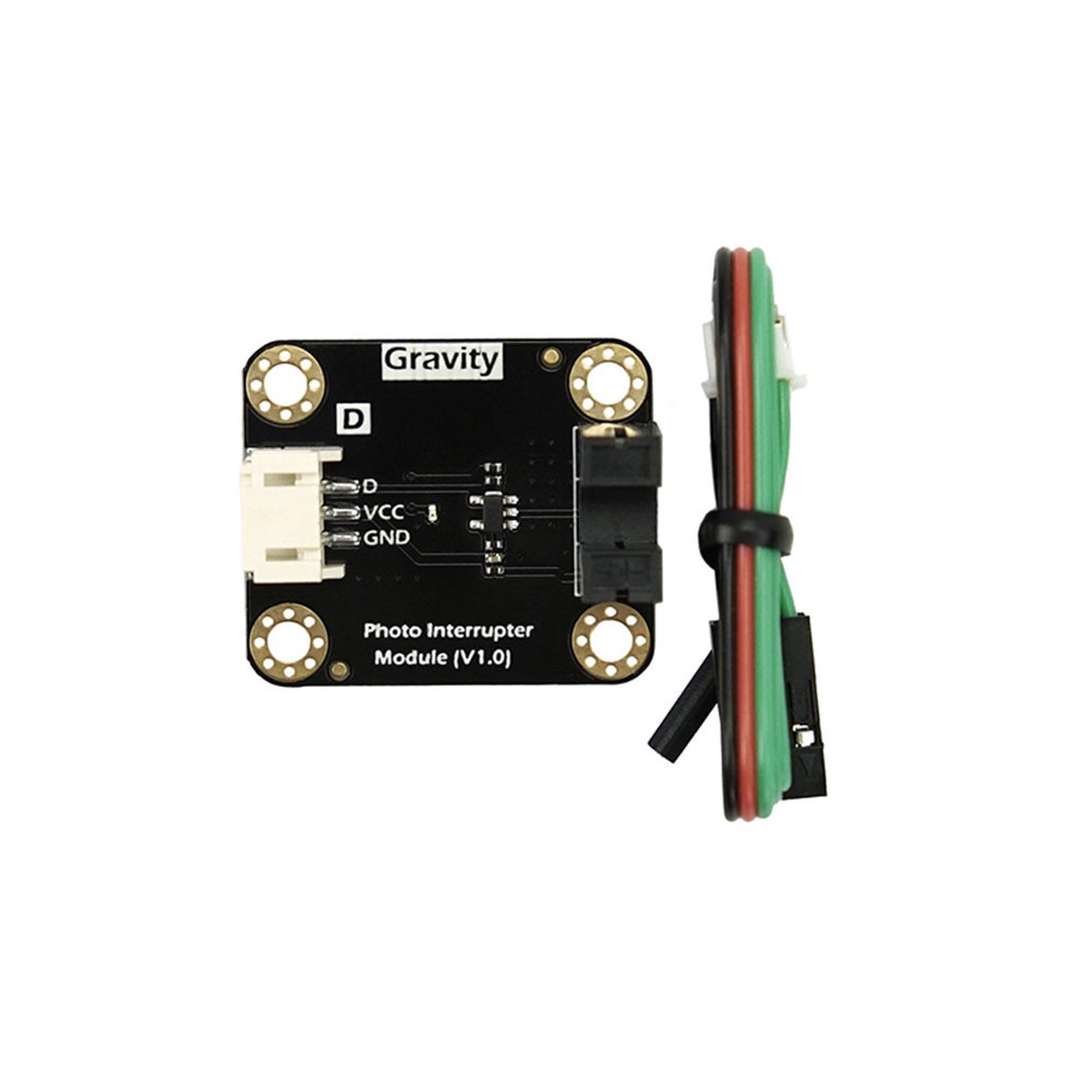

Gravity: Photo Interrupter Module x1
Gravity: Digital Sensor Cable for Arduino – 30cm x1
