Overview

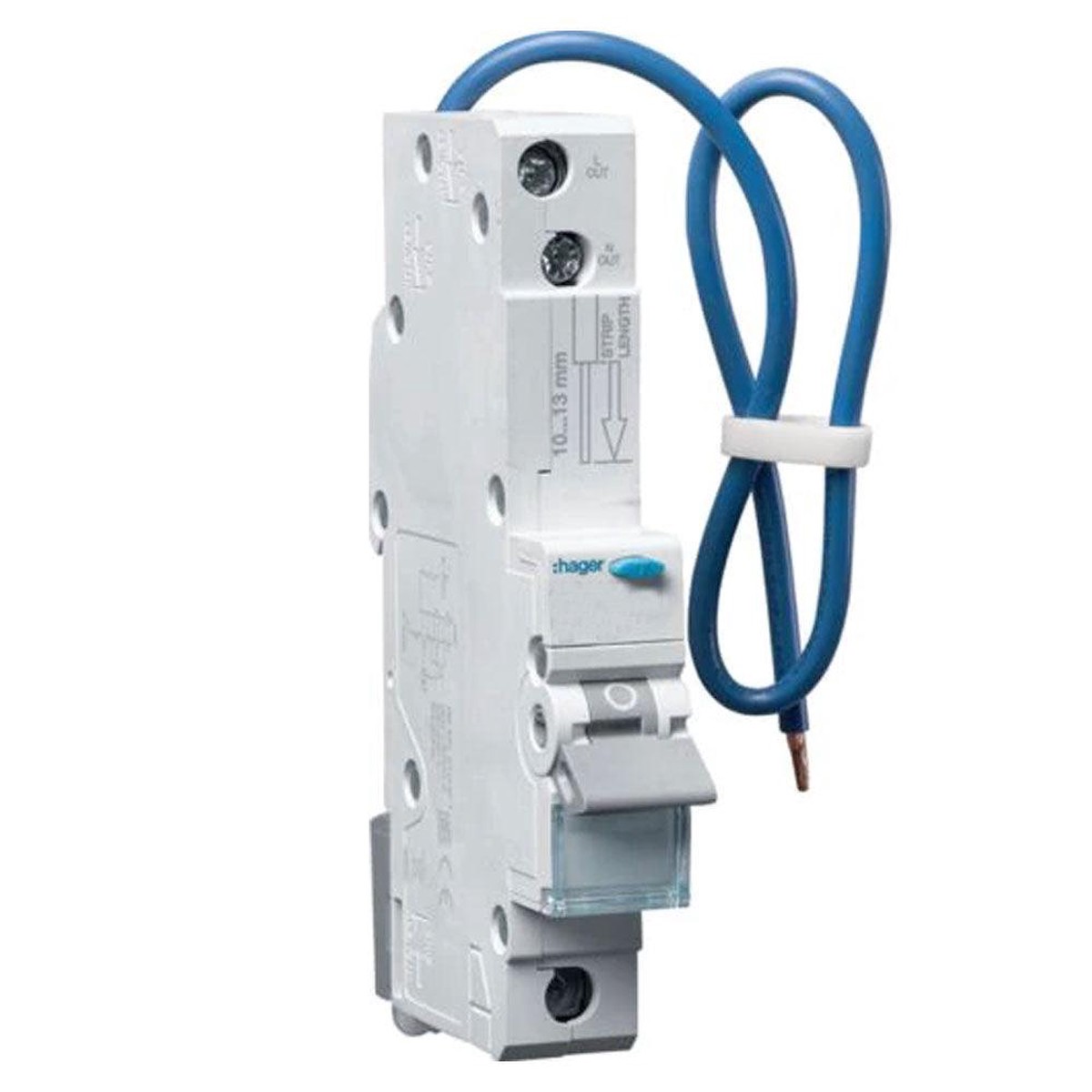

An RCBO is a combination of an MCB (mini circuit breaker), which protects against overload and an RCD (Residual Current Device), which protects against earth leakage. In other words it protects a circuit against all possible faults independently and avoids nuisance tripping which can occur when an earth leakage fault on one circuit causes an RCD to cut power to all the MCBs it is protecting. You would not, for example, want your freezer in the garage, security system or most importantly fire alarms disabled because there is a fault on your lighting circuit. An RCBO is commonly used in ‘main switch’ and ‘high integrity’ consumer units, offering total circuit separation for your important circuits.

Key Features

• B Curve
• Current rating 45A 10kA
• Single Pole
• Requires no attachment to RCD
