Heatmiser Slimline-RF Bundle v3

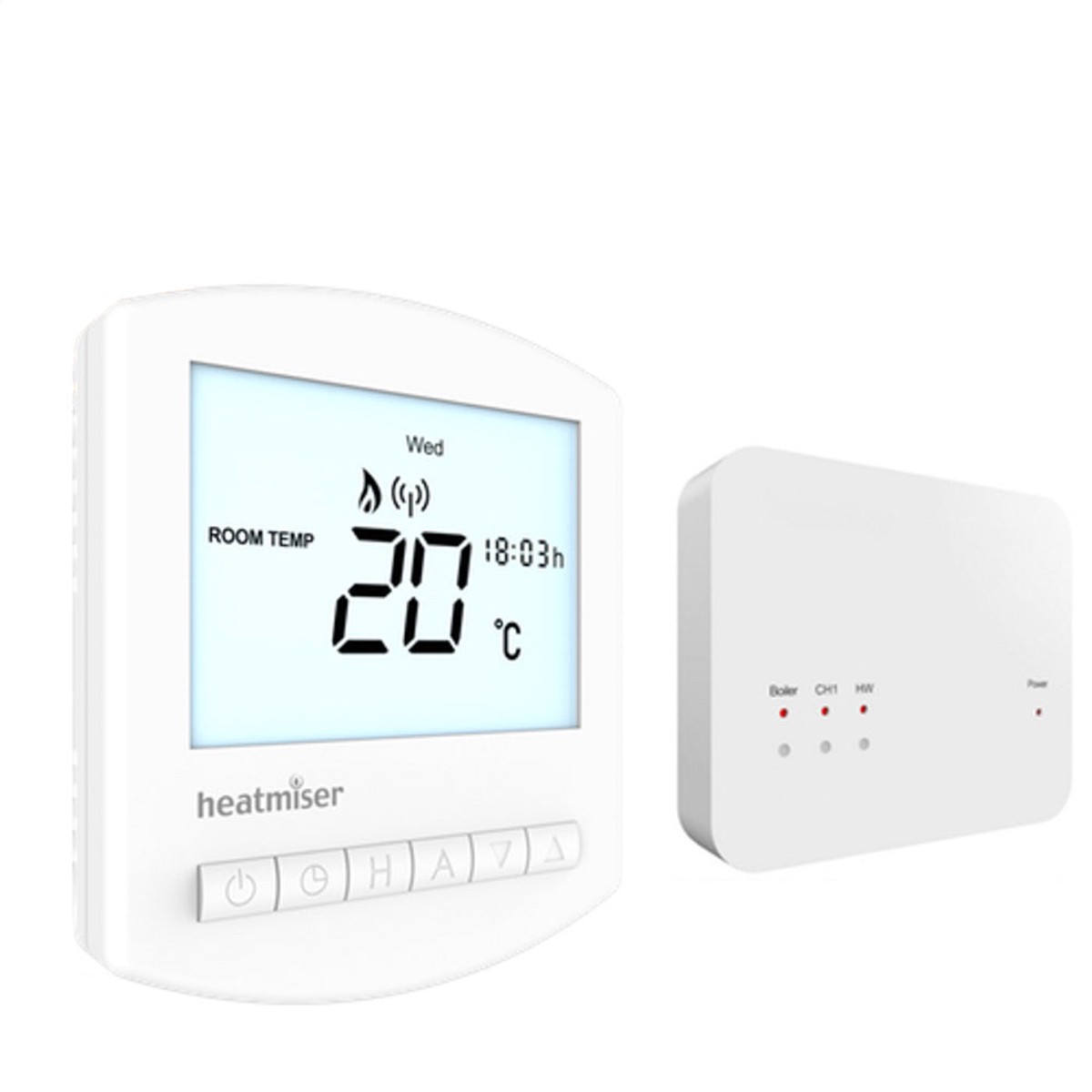

The Heatmiser Slimline-RF Bundle v3 comprises of a Heatmiser Slimline-RF v3 Multi Mode Thermostat and RF-Switch v2 wireless receiver. The receiver is hard-wired to the boiler, so it is normally positioned next to the boiler, or you could use the existing thermostat cabling. The wireless thermostat is then wall-mounted within range of the receiver (up to 100 meters open space)

The RF Switch v2 is a 3 Channel Receiver providing 3 changeover contacts, 2 for the heating circuit and 1 for the hot water circuit. In addition, the RF Switch v2 provides a voltage-free switch for the boiler. The RF Switch v2 can be paired to the UH8-RF v2 to provide a wireless link for the boiler signal.

Multi Mode: Can be set up to work in one of three modes;

Non-Programmable Thermostat
Programmable Thermostat
Programmable Thermostat with Hot Water Output

Key Features

• Wireless Thermostat – 868MHz
• Heating & Hot water Outputs
• Distance: Up to 100 Meters Open Space
• Large Back Lit Display
• 5/2 or 7 Day Programming Modes
• 4 Comfort Levels per Day
• Optimum Start
• Wireless Fail-Safe Function
• C/F Option
• 05C – 35C Range
• Holiday Function
• Hold Function
• Wall Mount
• Frost Protection
• Key Lock Facility
• Battery: 2 x AAA (Included)
• Compatible with UH8-RF v2 & Heatmiser Boost v2
• Remote Air Sensing Facility (Ideal for measuring the air temperature up to 20 meters from the thermostat, in bathrooms, for example. Remote sensor probe required, not included)
• Dimensions: 98mm x 85mm x 24mm (Height, Width, Depth)
