Overview

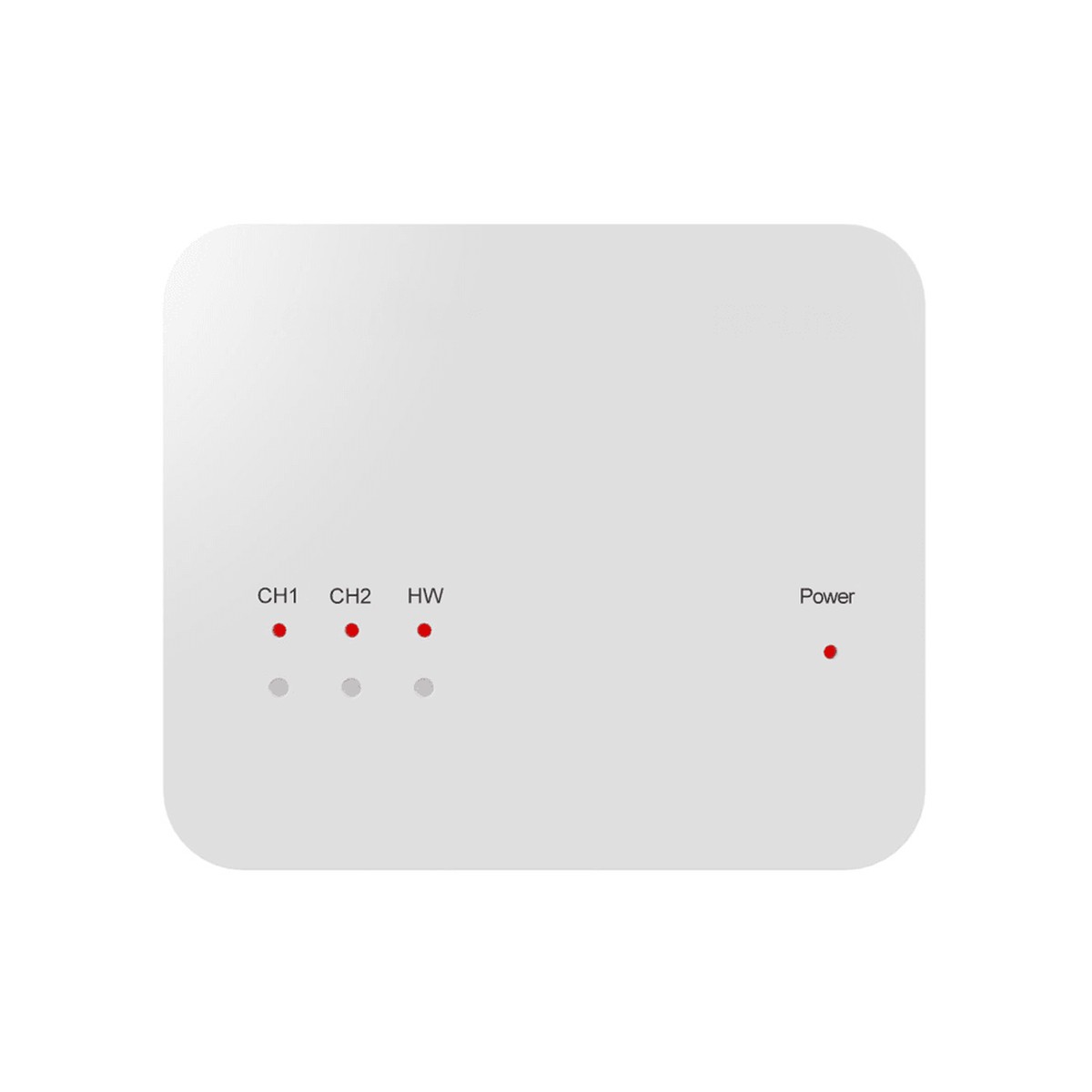

The Heatmiser RF-Switch v2 is a surface-mount wireless receiver. It is capable of controlling 2 heating zones and 1 hot water zone.

Compatibility:
The RF Switch v2 is compatible with the Slimline-RF and neoAir. In addition, the RF Switch can be paired to the UH8-RF to provide a wireless link to the boiler.

Key Features

• UH8-RF/UH8-RF V2 Compatible: Y
• Boost Compatible: Y
• Slimline-RF Compatible: Y
• NeoAir Compatible: Y
• NeoPlug Compatible (RF only): Y
• Number of heating zones: 2
• Number of Hot Water Zones: 1
• Neon Indication: Y
• DIN Rail Mounting: N (Surface Mount)
• Supply: 230v AC 50Hz 1 Phase
• Relay Load Max: 3 Amp Resistive
• Total Load Max: 9 Amp Resistive
• IP Protection: IP20
• Installed Dimensions (L,H,D): 108 x 90 x 24mm
• Weight: 166g
