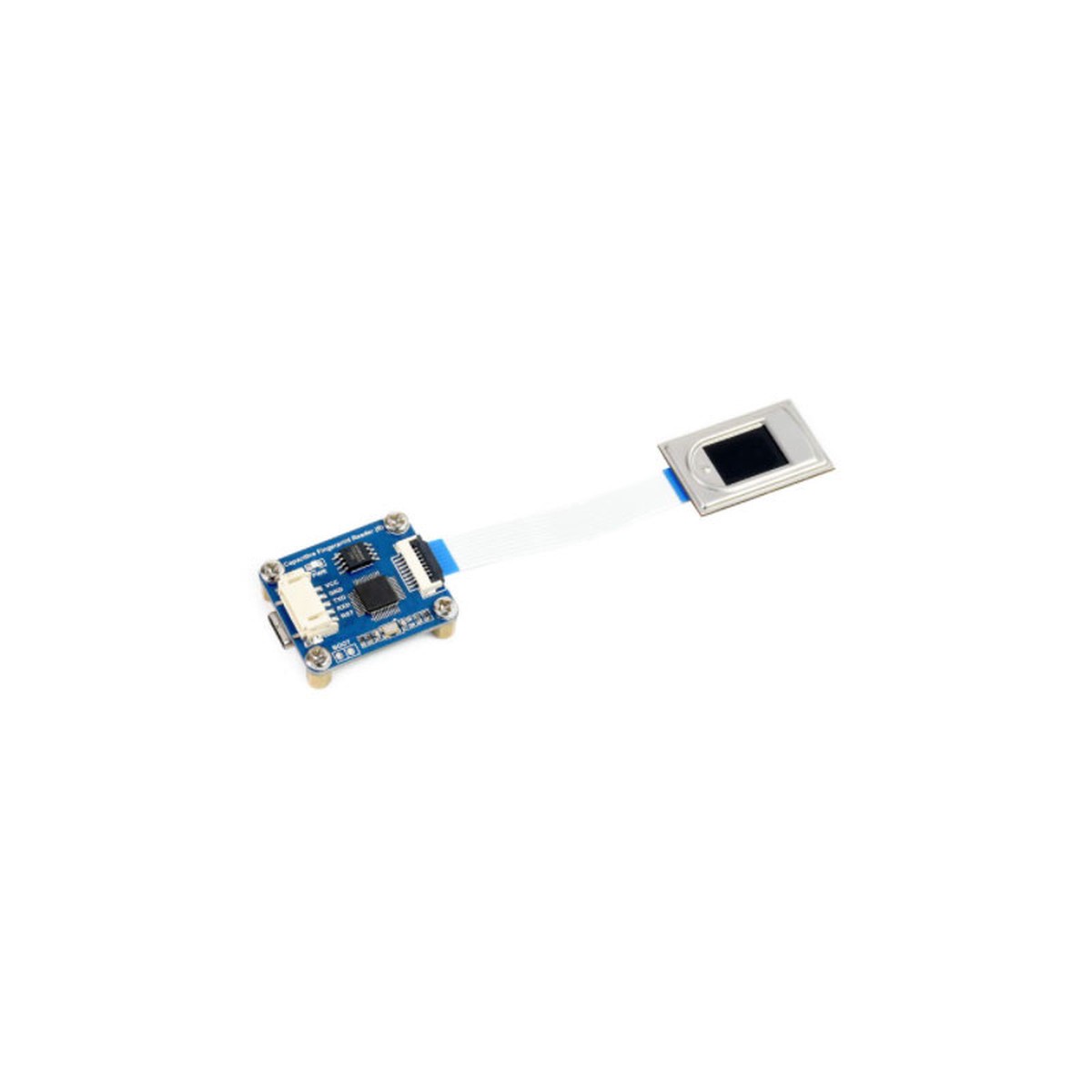

TheCapacitive Fingerprint Reader (B)is a fast and stable capacitive fingerprint module specialized for secondary development, suits integration applications.By incorporating high performance Cortex core processor, high security commercial fingerprint algorithm, and advanced semiconductor fingerprint sensor, this module is designed as a intelligent integration module with functions including fingerprint enrolling, image processing, template generating and storing, fingerprint matching and searching, etc.
Features

Easy to use by some simple commands, you don’t have to know any fingerprint technology, or the module inter structure/calculation

Commercial fingerprinting algorithm, stable performance, fast identification

Sensitive detection, just touch the collecting window lightly, without pressing

Allows to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions

Dual communication, UART or USB

Comes with rich development resources (related command documents, tools, and examples for Raspberry Pi/Arduino/STM32)

Package Content
Weight:0.017 kg

Capacitive Fingerprint Reader (B) x1
PH2.0 5PIN wire x1

Resources
WIKI:Capacitive_Fingerprint_Reader_(B)

Capacitive Fingerprint Reader (B)
Precise Fingerprint Identification | UART/USB Dual Ports

Application Examples
Fingerprint Lock, Fingerprint Safe Deposit Box, Access Control System, Clock In And Out…

Outline Dimensions

FAQs:
Q: What are the main features of this capacitive fingerprint reader?
A: The capacitive fingerprint reader (B) is a high-precision fingerprint sensor with fast recognition speed and high accuracy. It uses commercial fingerprint algorithms and is sensitive to touch. The device has dual communication support (UART and USB), making it adaptable to various applications.
Q: Which operating systems and development boards is this fingerprint reader compatible with?
A: The reader is compatible with Raspberry Pi, Arduino, and STM32. It also supports various operating systems, including Windows, macOS, and Linux, broadening its compatibility with different platforms.
Q: What are some applications for this fingerprint reader?
A: The fingerprint reader can be used for various applications such as access control systems, security devices, attendance tracking systems, and user identification for personalized experiences.
Q: What is the image size and resolution of the fingerprint reader?
A: The fingerprint image size is 256×288 pixels, and the resolution is 508 DPI, ensuring high-quality fingerprint capture for accurate recognition.
Q: Does the fingerprint reader come with software and resources?
A: Yes, the reader comes with complete resources, including a manual, related tools, and demo codes for Raspberry Pi, Arduino, and STM32, facilitating seamless integration and development.
