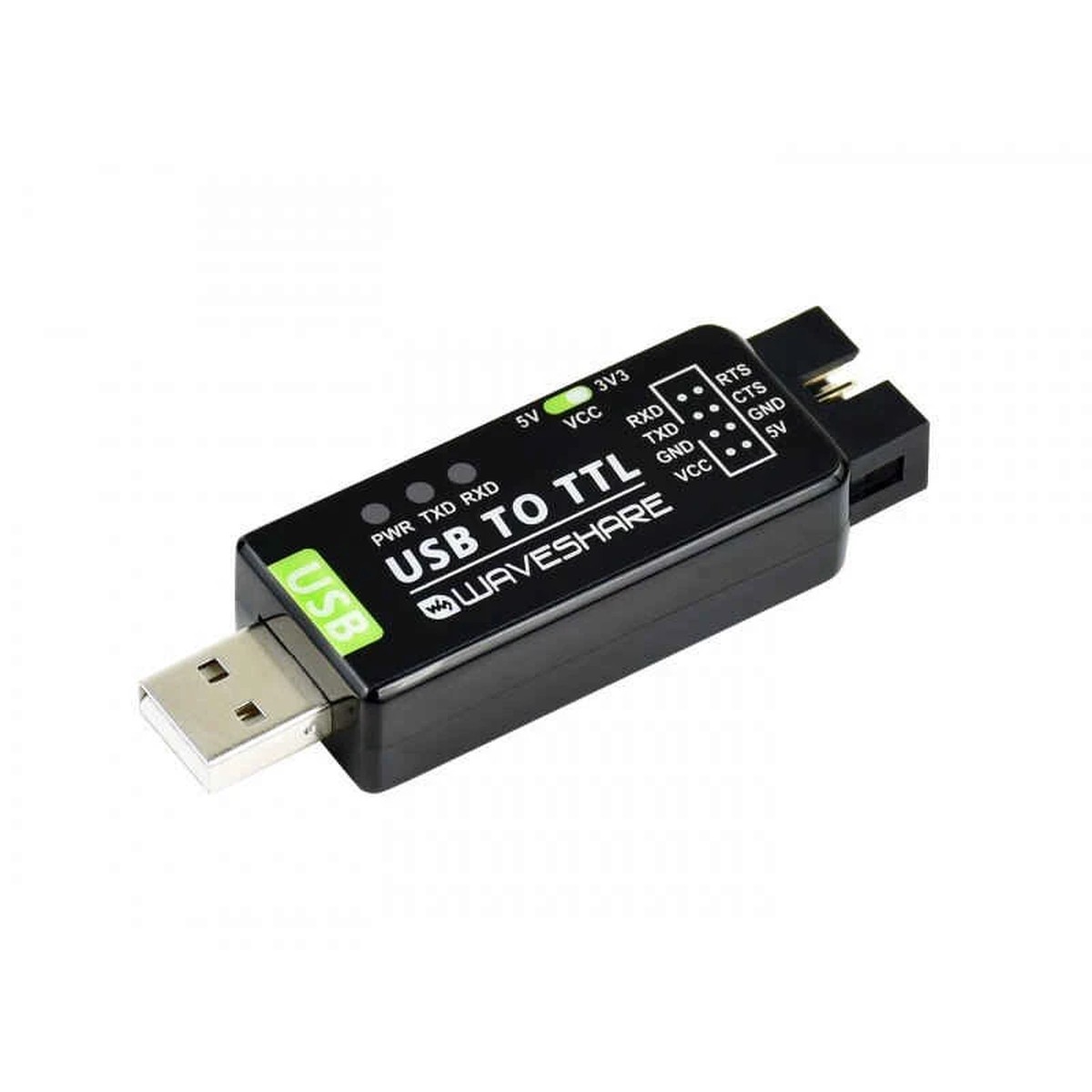

Industrial USB TO TTL Converter, Original FT232RL Onboard, Multi Protection Circuits, Multi Systems Support
USB TO TTL CONVERTER

Original FT232RL
Stable Transmission
Multi Devices
Multi Systems

Industrial USB TO TTL Converter, Original FT232RL Onboard, Embedded Resettable Fuse, and ESD / IP Protection Diodes, Small Form Factor

Original Chip onboard

Adopts Original FT232RL Converter
Providing Better Stability And Compatibility
Enabling Industrial Grade High Performance Communication Between Computer And TTL Devices

Multiple Systems Support
Compatible With Popular Systems Like Win7/8/8.1/10, Mac, Linux, Android, WinCE…

Three LED Indicators

Easily Checking The Operating Status
Convenient For Programming / Debugging

USB Signal & Pinouts Definition

5V
5V output

VCC
3.3V or 5V output, configured by switch

GND
Ground

TXD
Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) RXD Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)

RTS
Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) CTS Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

USB cable is not included
This converter is designed to work on TTL level, NEVER connect it to RS232 level to avoid damage

Outline Dimensions

Wiki:www.waveshare.com/wiki/USB_TO_TTL
Package Content

USB TO TTL x1
8PIN fool-proof wire x1
