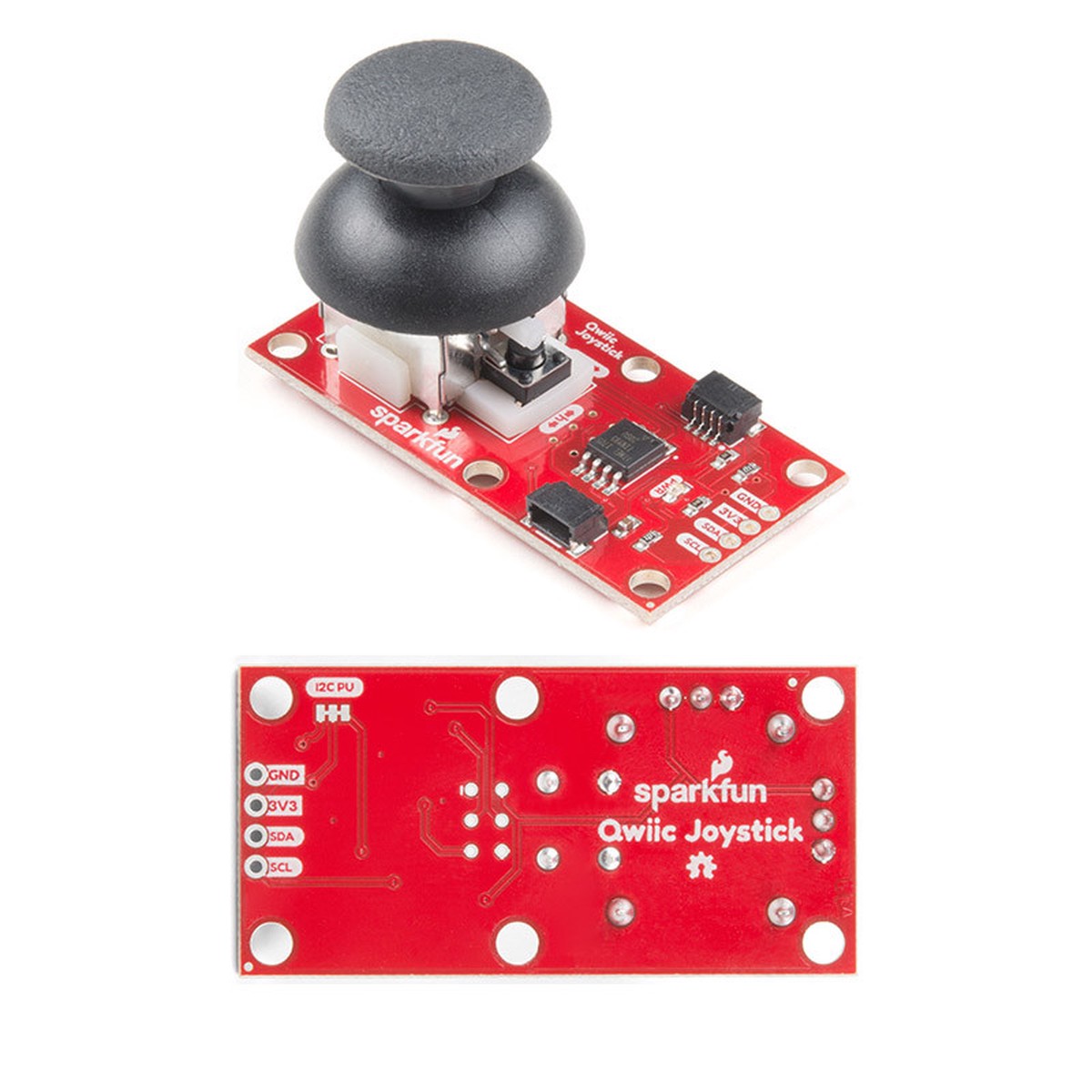

The SparkFun Qwiic Joystick combines the convenience of the Qwiic connection system and an analog joystick that feels reminiscent of the thumbstick from a PlayStation 2 controller and for that reason it’s become a favorite of ours. The only thing that could make it better is a “smart” version, so we made one! With the pre-installed firmware, the ATtiny85 is acts as an intermediary (microcontroller) for the analog and digital inputs from the joystick. This allows the Qwiic Joystick to report its position over I2C. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1″-spaced pins in case you prefer to use a breadboard.
Key Features

Qwiic Compatible

Software Selectable Slave Address

Low Power ATtiny85 Microcontroller

Reports X and Y Joystick Position + Button Press

STEMMA QT / Qwiic 4-pin 1mm Pitch White Female Connector Cable 150mm Long – Both Sidecan be purchased seperately.
Resources

Schematic

Eagle Files

Hookup Guide

ATtiny85 Firmware

Arduino Library

Python Example Code

GitHub
