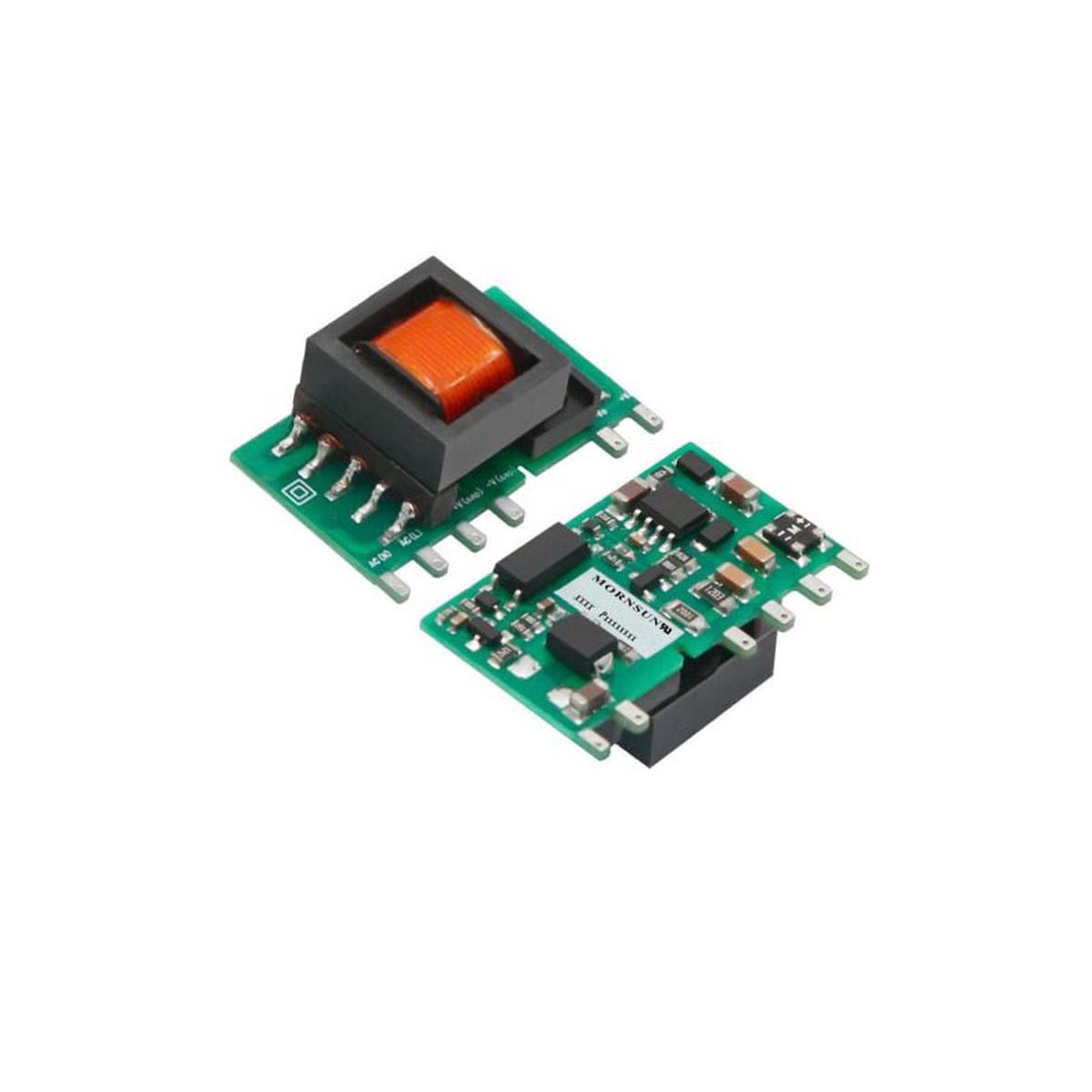

The LS03-13B03R3 is a 3W DIY AC/DC converter designed to operate in an ultra-wide input voltage range of 85VAC to 305VAC and 70VDC to 430VDC. This converter offers the unique feature of accepting both AC and DC inputs using the same terminals. It is suitable for a variety of applications due to its flexibility in layout. Operating efficiently in a wide ambient temperature range from -40C to +85C, it provides a green power solution with its compact size and high power density. The converter also allows for controllable life and adjustable cost.
Features

Input Voltage Range: Ultra-Wide 85VAC to 305VAC, 70VDC to 430VDC
Input Type: AC or DC (Dual-Use of Same Terminal)
Operating Temperature Range: -40C to +85C
Application: Multi-Application, Flexible Layout
Power Density: High
Size: Compact
Efficiency: Green Power Solution
Controllability: Controllable Life, Adjustable Cost
No-Load Power Consumption: 0.1W
Protection: Output Short Circuit, Over-Current Protection
Standards: Designed to Meet IEC/EN60335, IEC/EN61558 Standards

ResourcesDatasheet
