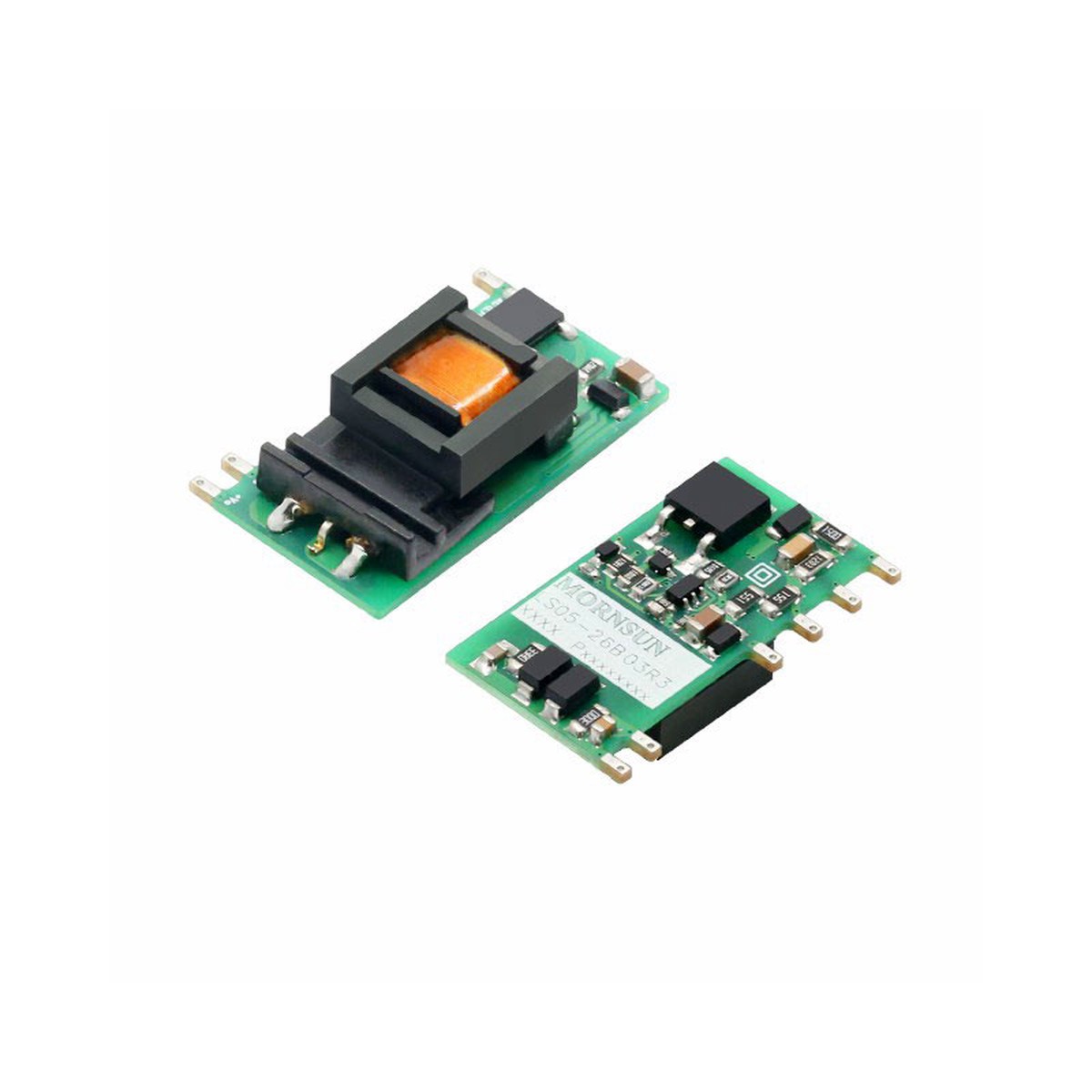

The LS05-13B05R3 is a 5W DIY AC/DC converter designed for versatile applications. It features an ultra-wide input voltage range of 85 – 305VAC and 70 – 430VDC, making it suitable for various power sources. This converter accepts both AC and DC input through the same terminal, offering flexibility. Operating within a wide ambient temperature range of -40C to +85C, it is adaptable to various environments. With a compact size and high power density, it provides efficient power conversion while maintaining a green power profile. The converter offers controllable life and adjustable cost parameters. Its no-load power consumption is minimal at 0.1W. Additionally, it provides protection against output short circuits and over-current conditions, ensuring operational safety. The LS05-13BxxR3 series holds UL/EN/IEC62368 safety approval, while the LS05-13BxxR3-F series is EN62368 approved.
Features

Input Voltage Range: Ultra-Wide 85 – 305VAC, 70 – 430VDC
Input Type: AC/DC (Dual-Use Terminal)
Operating Temperature: -40C to +85C
Application: Multi-Application, Flexible Layout
Size: Compact
Power Density: High
Efficiency: Green Power
Controllability: Adjustable Life and Cost
No-Load Power Consumption: 0.1W
Protection: Output Short Circuit, Over-Current
Safety Approval: UL/EN/IEC62368 (LS05-13BxxR3 series), EN62368 (LS05-13BxxR3-F series)

ResourcesDatasheet
