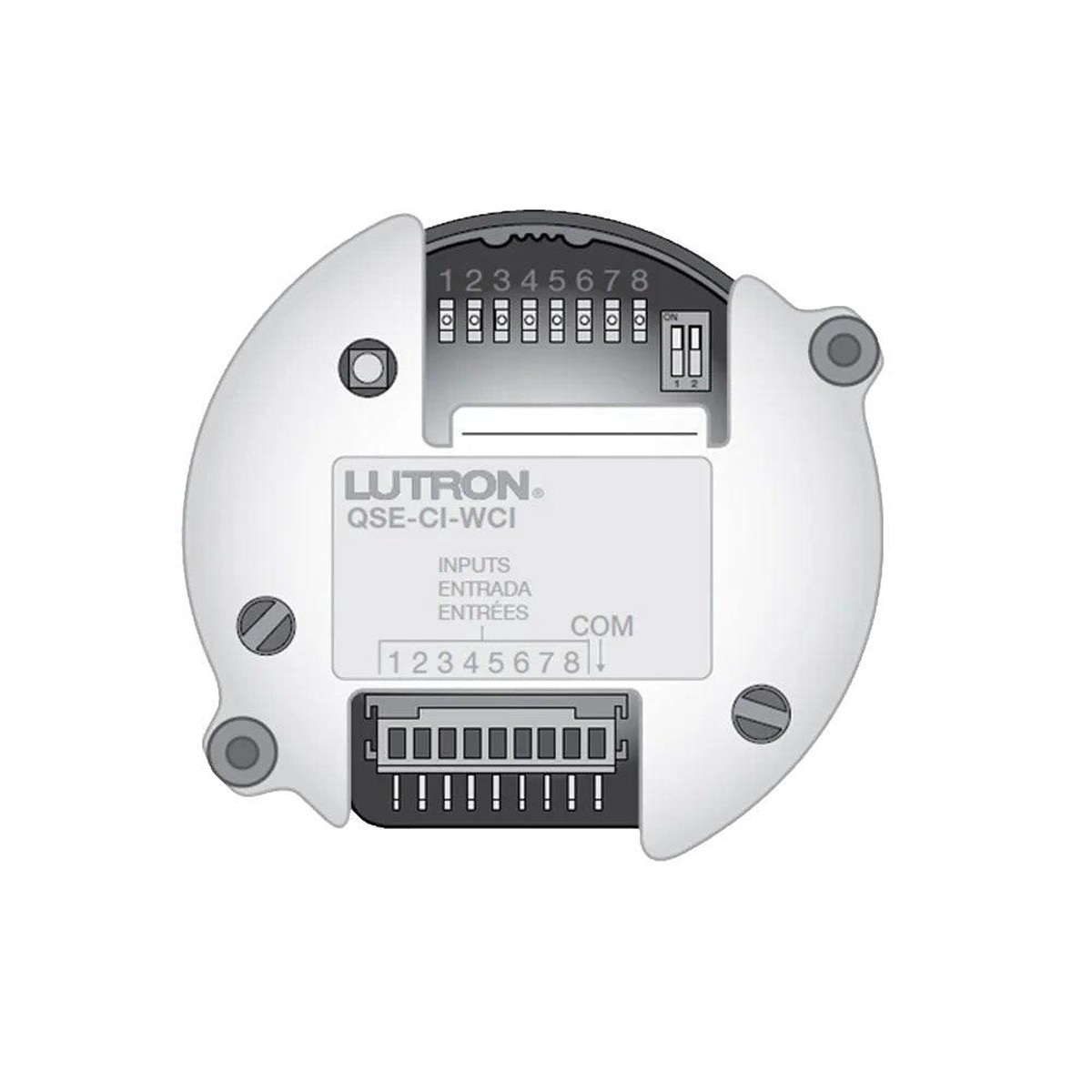

Lutron Wallbox Contact Closure Interface
LUT QSE-CI-WCI

The QSE-CI-WCI (WCI) is a control interface for use with HomeWorks QS systems, Quantum systems, and QS standalone applications. The WCI integrates a contact closure keypad with a Lutron lighting control system. The contact closure keypad must be provided by the customer. The WCI provides up to eight contact closure inputs (CCIs). The CCIs accept maintained or momentary signals. The CCIs are programmable through the HomeWorks QS and Quantum system setup software. For QS standalone applications, the CCIs are programmable using the button, DIP switch, and LEDs on the WCI.

Functionality in QS Standalone Systems
GRAFIK Eye QS (QSGRx-) – Inputs activate Scenes. – Toggle Zones between a Preset and Off. – Cannot be used as a partion controller.
Energi Savr NodeTM (QSN- or QSNE-) – Inputs activate Scenes. – Toggle Zones between a Preset and Off. – Cannot be used as a partion controller.
Motor Module (QSE-CI-4M) – Window treatment Open/Stop/Close. – Toggle assigned windows treatments between Open and Close.
Contact Closure Interface (QSE-IO) Sivoia QS – Window treatment Open/Preset/Close. – Supports venetian window treatments. – Supports 6 default presets (4 presets when applying Raise/Lower).
