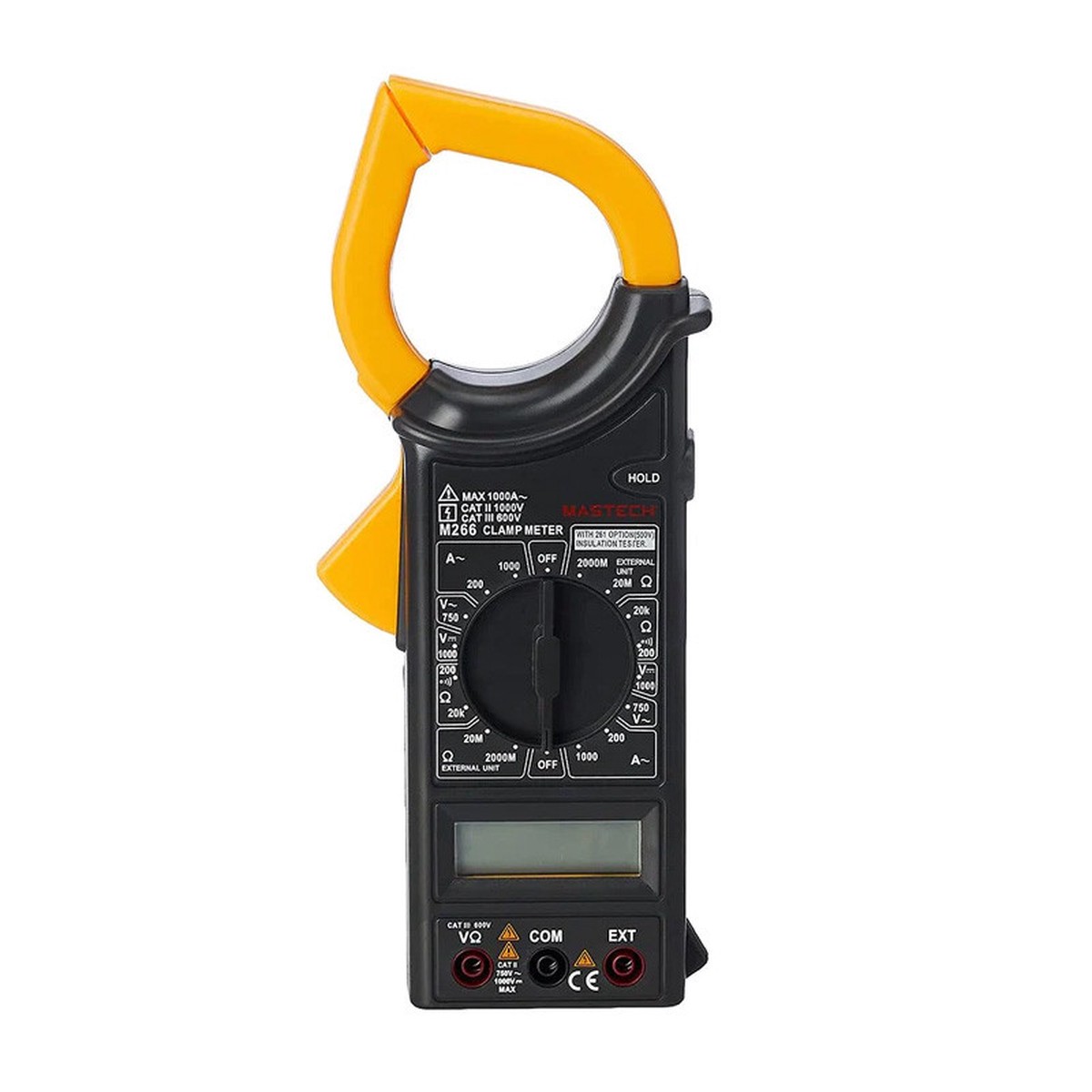

The M266 digital Clamp Meter is a versatile tool designed for contactless measurement of AC values, as well as DC and AC voltage, resistance, circuit continuity, and insulation tests. Its jaw opening size of 50 mm allows for easy clamping around conductors, making it suitable for various electrical measurement tasks.
Key Features

Model No: M266

Type of Product: Digital AC Clamp Meter

Display: 3 Digits LCD Display

Display Counts: 2000

Jaw Opening Size: 50 mm (2.0 inch)

Voltage Range (DC): 0-1000 V

Voltage Accuracy (DC): (0.8 % + 3 Digits)

Current Range (AC): 0-1000 A

Current Accuracy (AC): (3.0 % + 10 Digits)

Voltage Range (AC): 0-750 V

Voltage Accuracy (AC): (1.2 % + 5 Digits)

Resistance Accuracy: (1.0 % + 8 Digits)

Power: 9 V 6F22 Battery

Operating Environment: 0C to 40C

Storage Environment: -10C to 50C

Relative Humidity: < 80% RH Maximum Voltage Range (DC): 601-1000 V AC Current Range: 601-1000 A Maximum Voltage Range (AC): 601-750 V Resistance Range (Ohm): 0-20 k Weight: 268 g Dimensions: 235x96x46 mm
