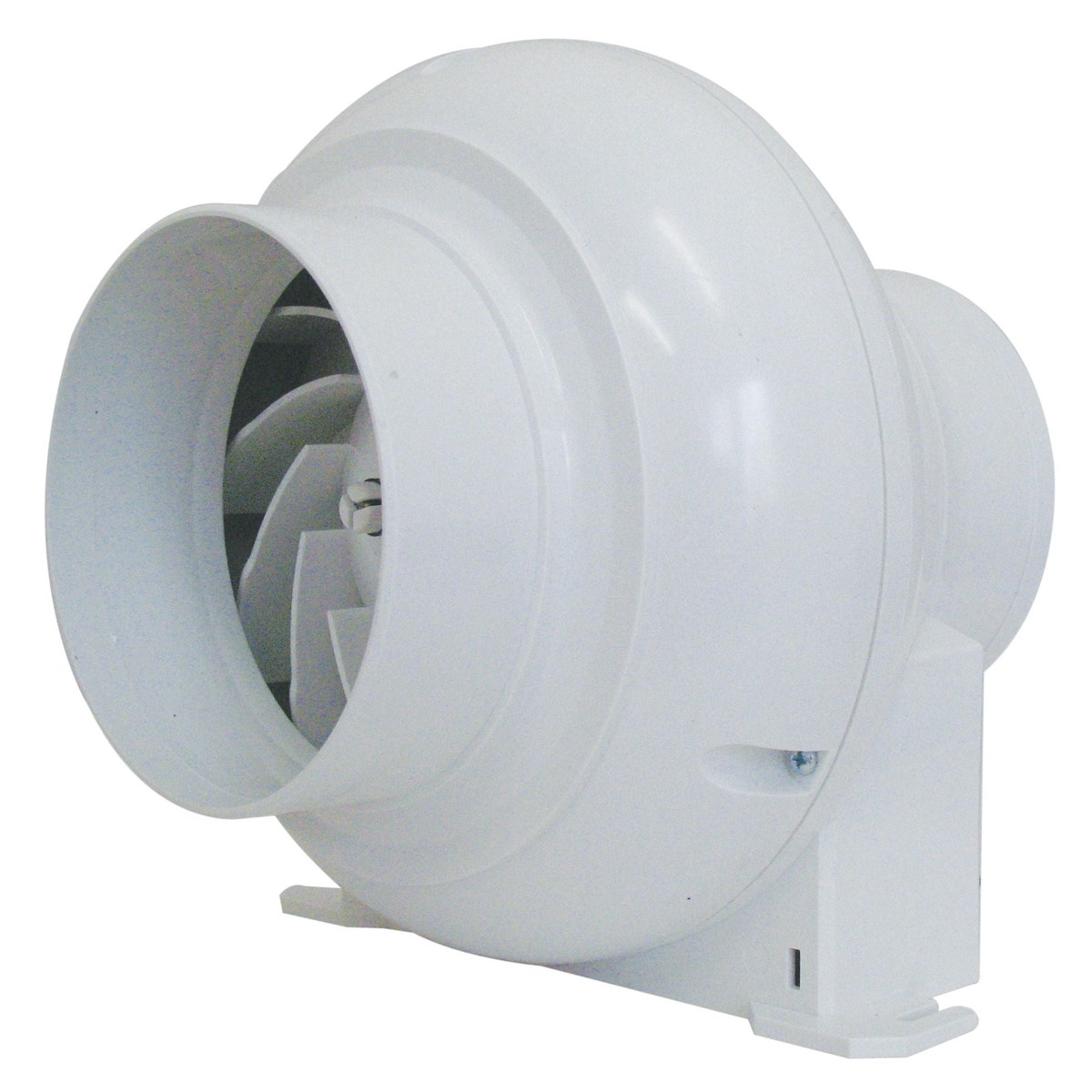

Providing solutions for a wide range of domestic, commercial and industrial applications, the CFD200/220 in-line fans have been designed for use with suspended ceilings.

Powerful, yet quiet and unobtrusive, the CFD200/220 units have extract rates of 110m3/hr 31 litres per second.

The CFD series is suitable for a wide range of applications including bathrooms, toilets, shower rooms and utility rooms.

The CFD series is fitted with backward curved centrifugal impellers for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles. Includes built-in backdraft shutter

Electrical 220-240V – AC. 50Hz . Single phase consuming 18W on the CFD200.

All wiring must comply with the current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted.

Additional Data:

CFD200/220 SCF200 Maximum pressure 120p.a. Fan speed:1400r.p.m. Sound volume:45.0dB(A) Maximum operating temperature: 400C
