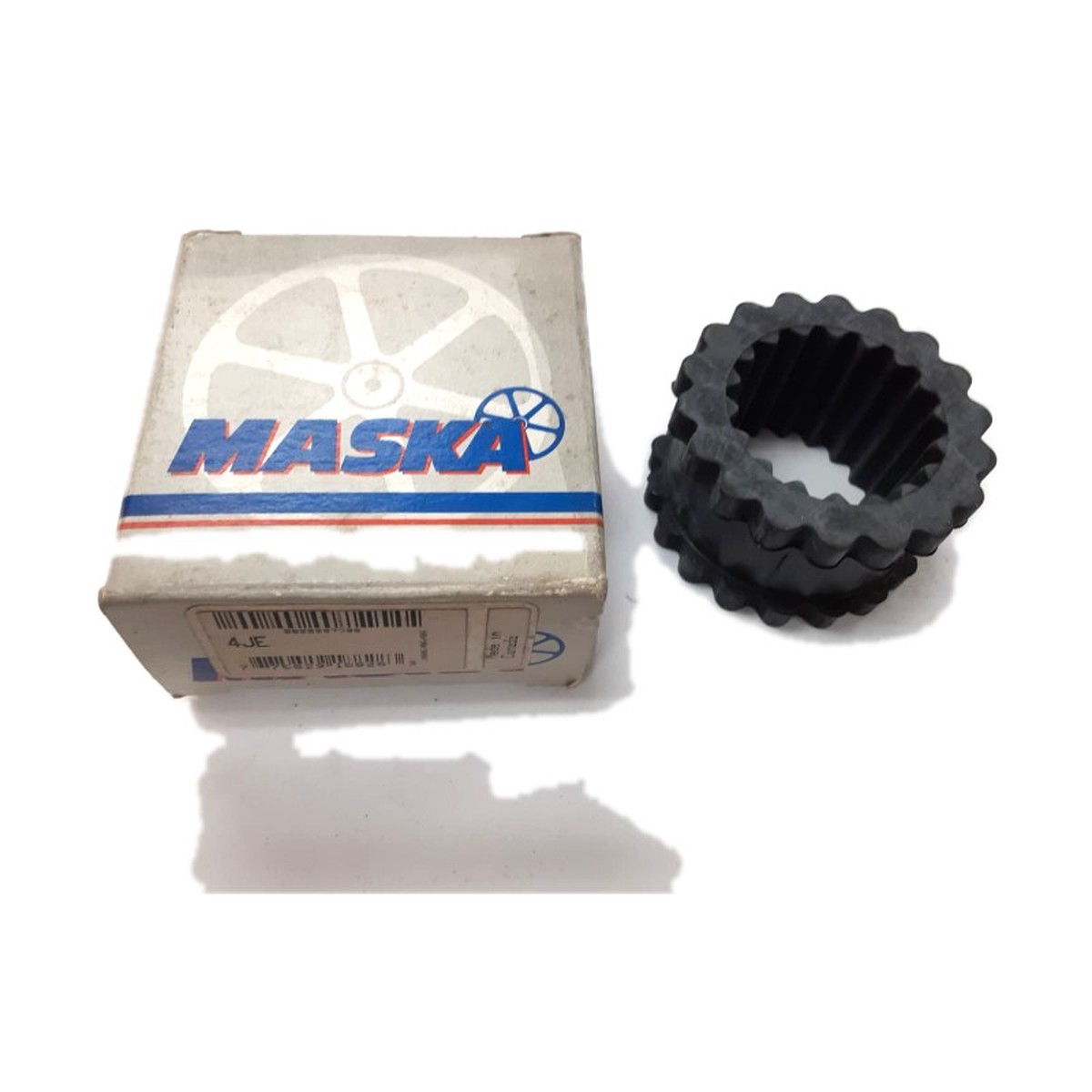

Maska 4JE Coupling Sleeve.

Specifications

• Brand: Maska
• Part number: 4JE
• Coupling Size: 4
• Sleeve Type/Design: JE (One-Piece Solid with teeth)
• Material: EPDM Rubber (provides general-purpose flexibility and chemical resistance)
• Maximum Torque Capacity: 120 to 156 in-lbs (varies slightly by brand enhancements like Sure-Flex Plus)
• Maximum Speed: 7,600 RPM
• Dimensions: 2-1/4 to 2-5/16 Outer Diameter, 1-1/4 Width
• Operating Temperature Range: -30F to 275F (-34C to 135C)
• Misalignment Tolerances: Up to 1 angular misalignment, 0.010 parallel misalignment
• Condition: New
• Country of origin: Canada

Typical applications

Replacement drive and bearing part for HVAC and industrial equipment. Match the part number, bore size and dimensions of the original before ordering.

Before you order, match the part number or the specs on the nameplate of the part you are replacing. Not sure it fits? Send us the model and serial number of your unit and we will confirm.
