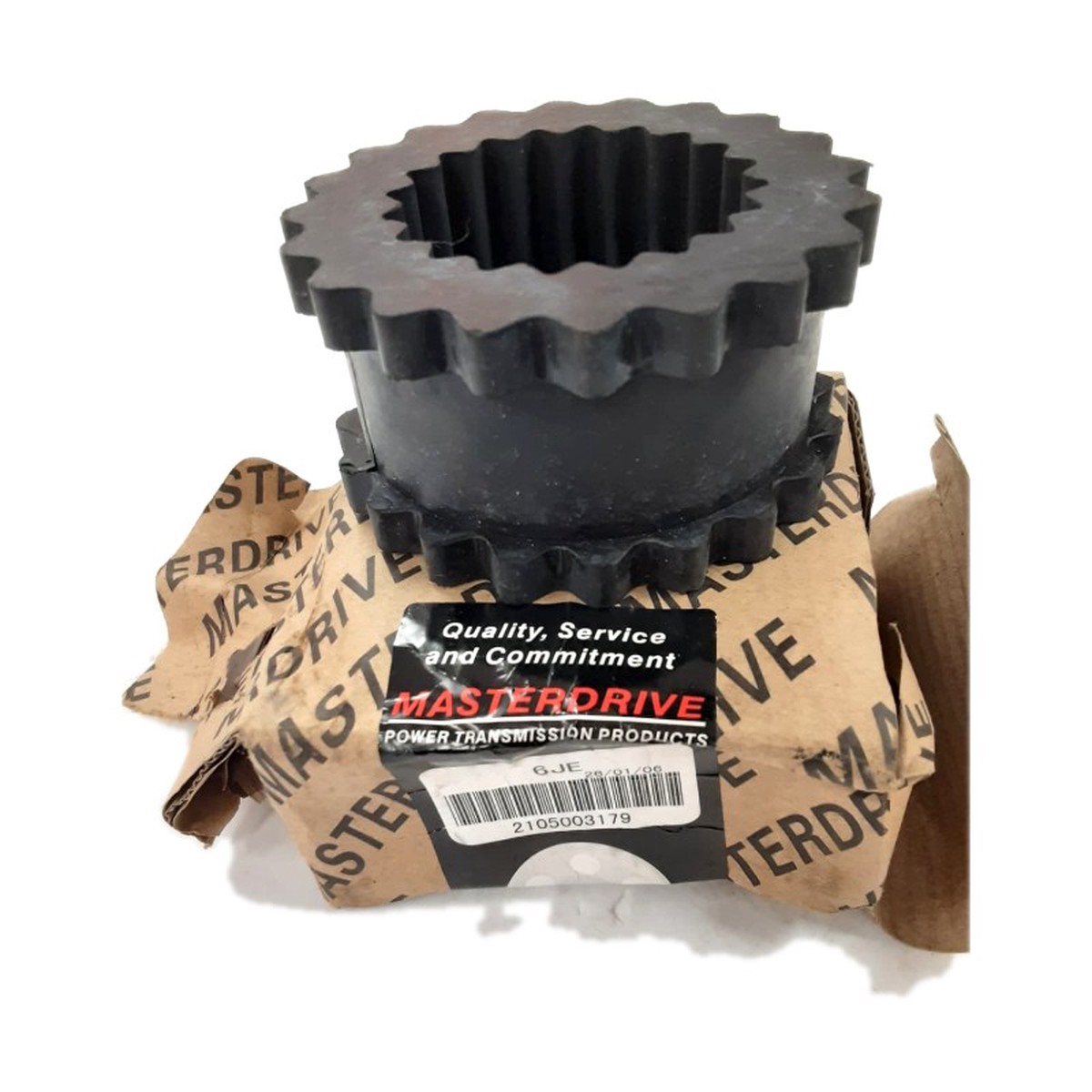

MasterDrive 6JE Flexible Sleeve Coupling Insert.

Specifications

• Brand: MasterDrive
• Part number: 6JE
• Type: Flexible Coupling Sleeve
• Coupling Size: 6
• Sleeve Construction: 1-Piece Solid (Unsplit)
• Material: EPDM rubber
• Maximum Torque: 450 in-lb
• Maximum Speed: 6,000 RPM
• Horsepower Rating: 0.9 hp @ 100 RPM
• Dimensions: Outside Diameter of 3-3/4 inches; Insert Width of 1-7/8 inches
• Misalignment Tolerances: 1 Angular; 0.015 Parallel; 0.015 Axial Motion
• Condition: New
• Country of origin: China

Typical applications

Replacement drive and bearing part for HVAC and industrial equipment. Match the part number, bore size and dimensions of the original before ordering.

Before you order, match the part number or the specs on the nameplate of the part you are replacing. Not sure it fits? Send us the model and serial number of your unit and we will confirm.
